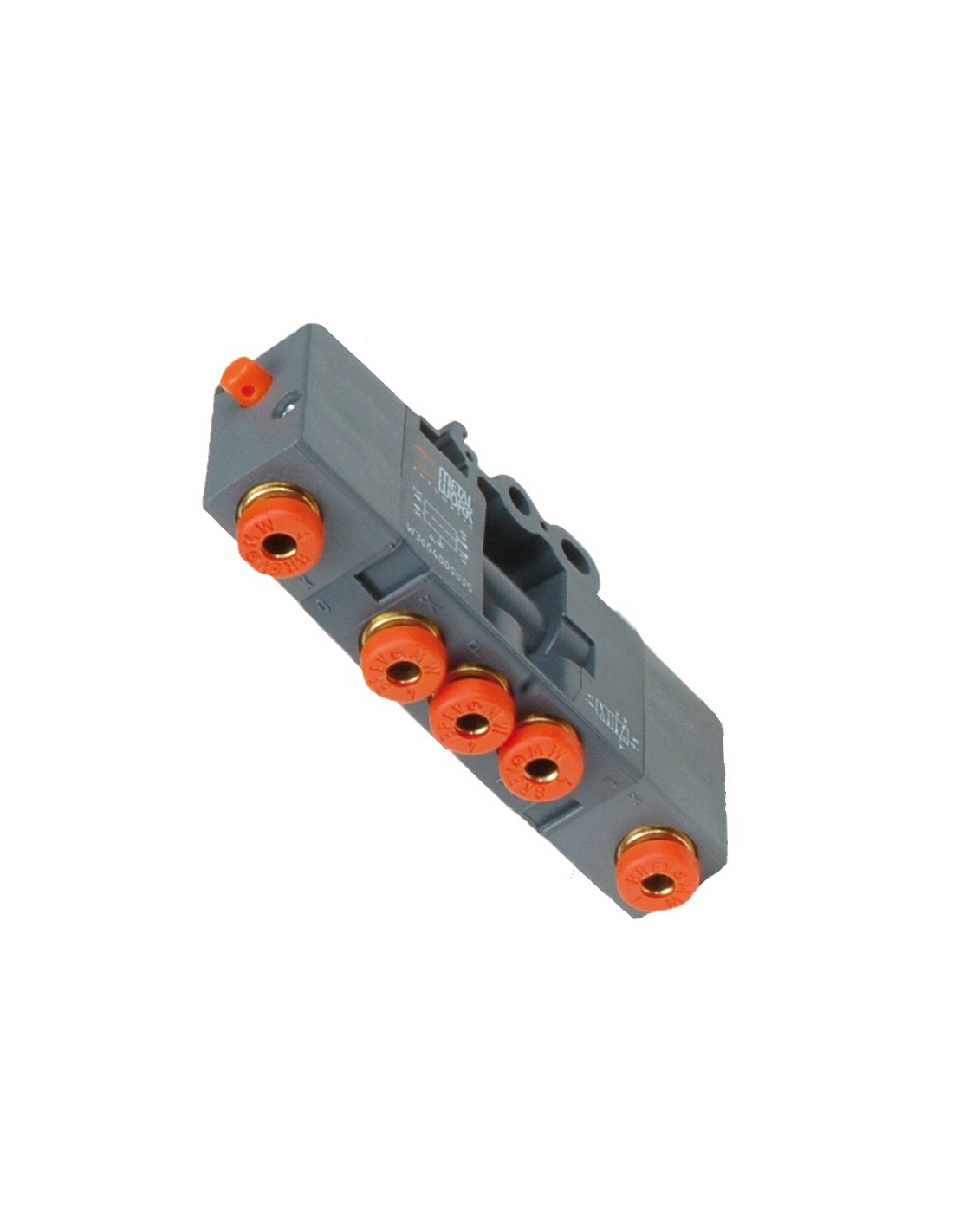

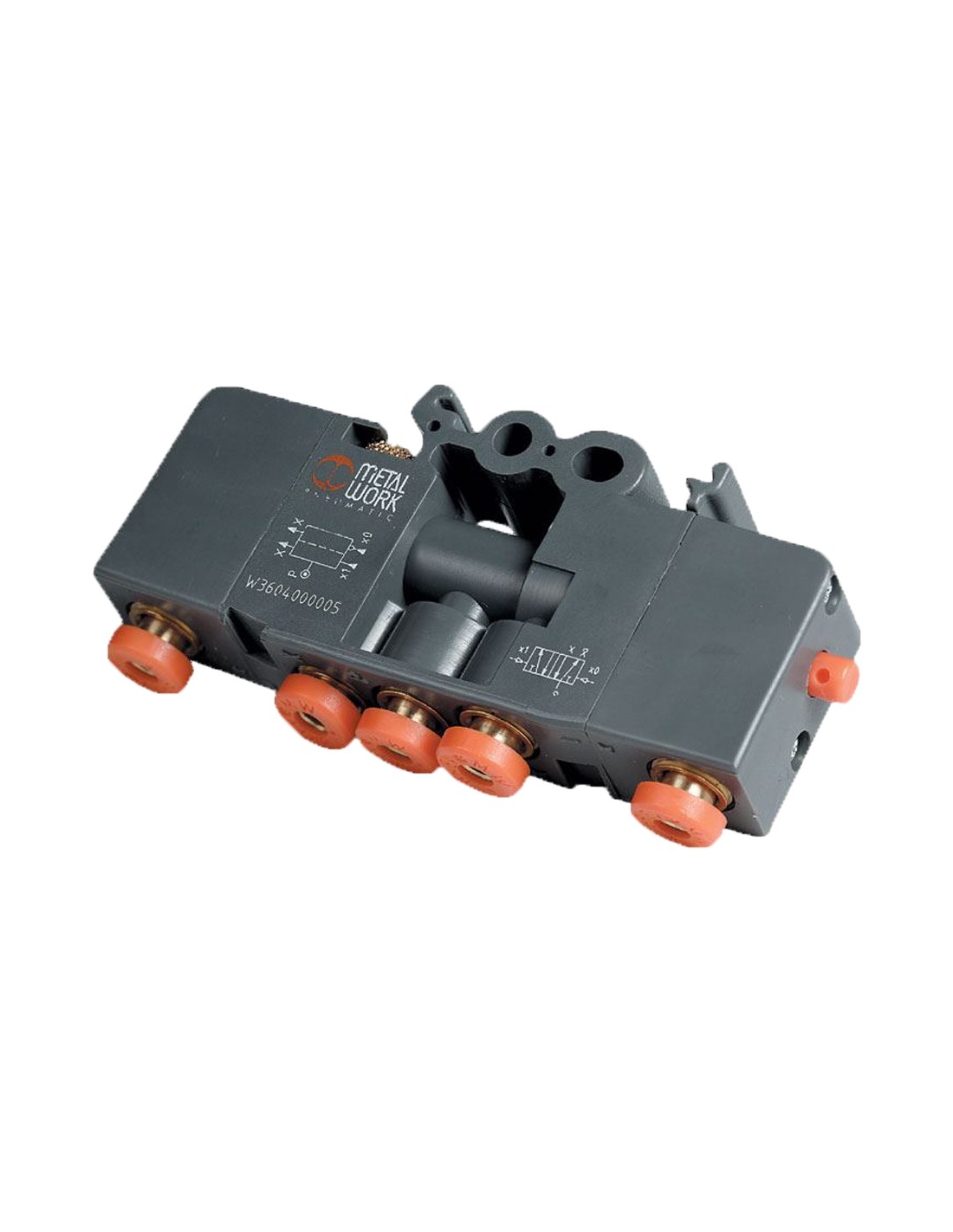

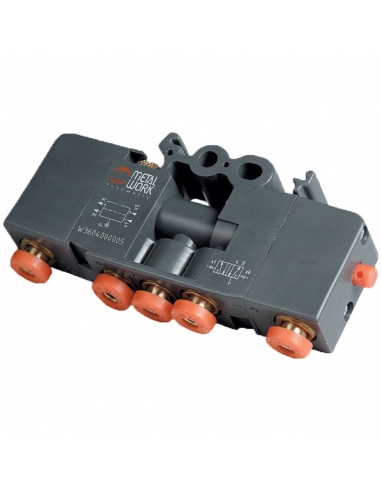

Auxiliary valve logical memory - Metal Work - ADAJUSA

Auxiliary valve logical memory - Metal Work

Name: Auxiliary valve logical memory - Metal Work
Brand: Metal Work
SKU: W3604000005
Price: 51.9598 EUR
Availability: PreOrder

€51.96 Tax included

€42.59 tax excl.

Logical element - MEMORY. Pipe blocking system by means of recessed fittings Ø 4.

Reference: W360400005

Logotipo Metal Work

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Logical elements are available with 5 different functions: O, Y, NO, YES, MEMORY.

Main features common to all elements:

Manufacturer/Supplier: Metal Work.
Reference: W3604000005.
Adapter for din-rail bar (DIN EN 50022) integrated into the body.
Built-in pressure indicator.
Pipe blocking system by means of recessed fittings Ø 4.
Operating temperature range from -10°C to +60°C
Pressure range SI-MEMORY - O - Y: 0 to 8 bar, pilot pressure 1.5 to 8 bar, NO: 0.4 to 6 bar
Nominal diameter (mm) 2.7
Flow at 6 bar P 1 bar 100 NI / min
Reset AND-OR: via compressed air / YES-NOT via mechanical spring

Material for professional use, install in compliance with the regulations in force at the place of installation.
