Pneumatic logic valve function OR - Metal Work

€18.62 Tax included

€15.26 tax excl.

Pneumatic logic valve function "OR" with built-in quick fittings for 4mm diameter tube.

Reference: W3604000001

Logotipo Metal Work

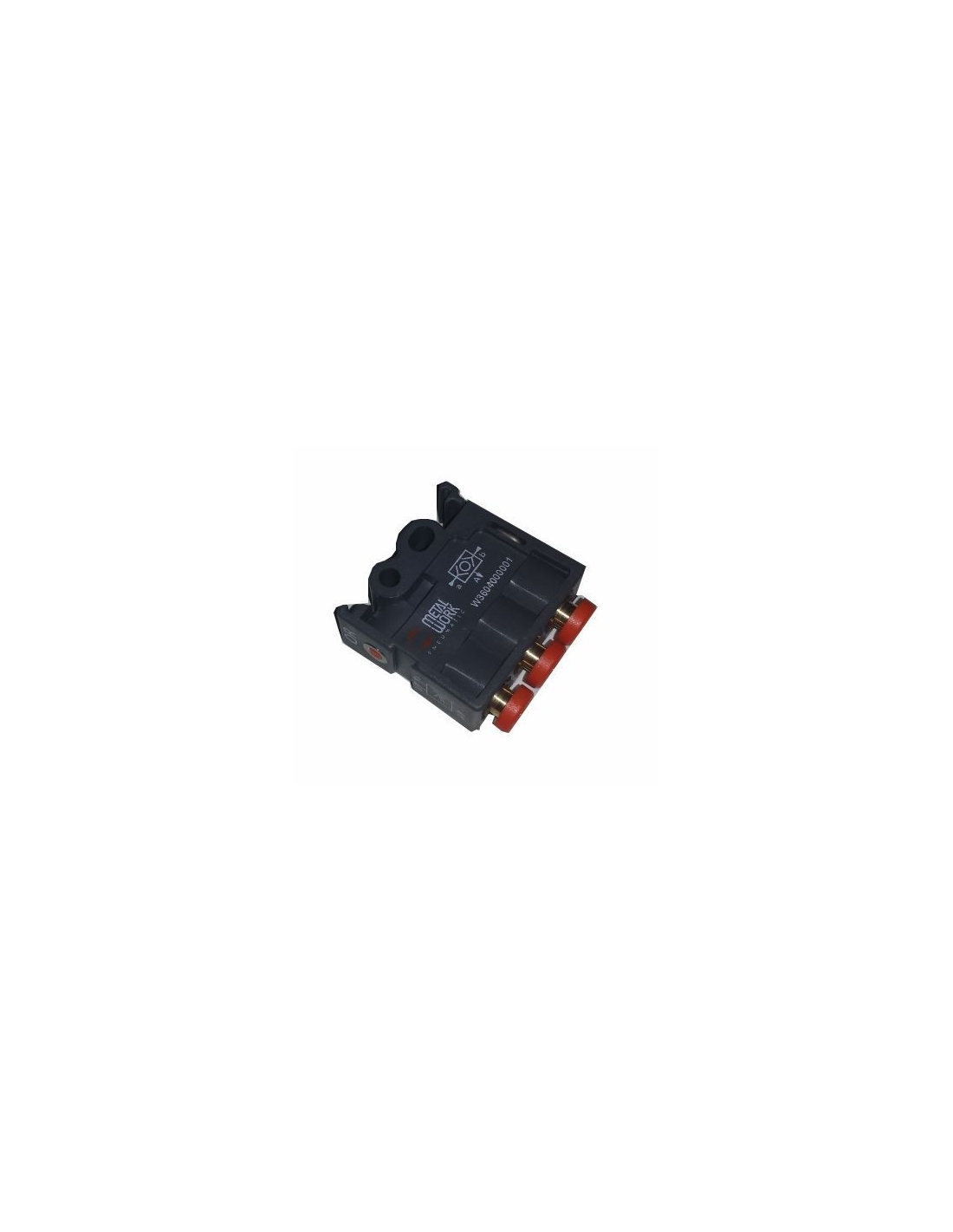

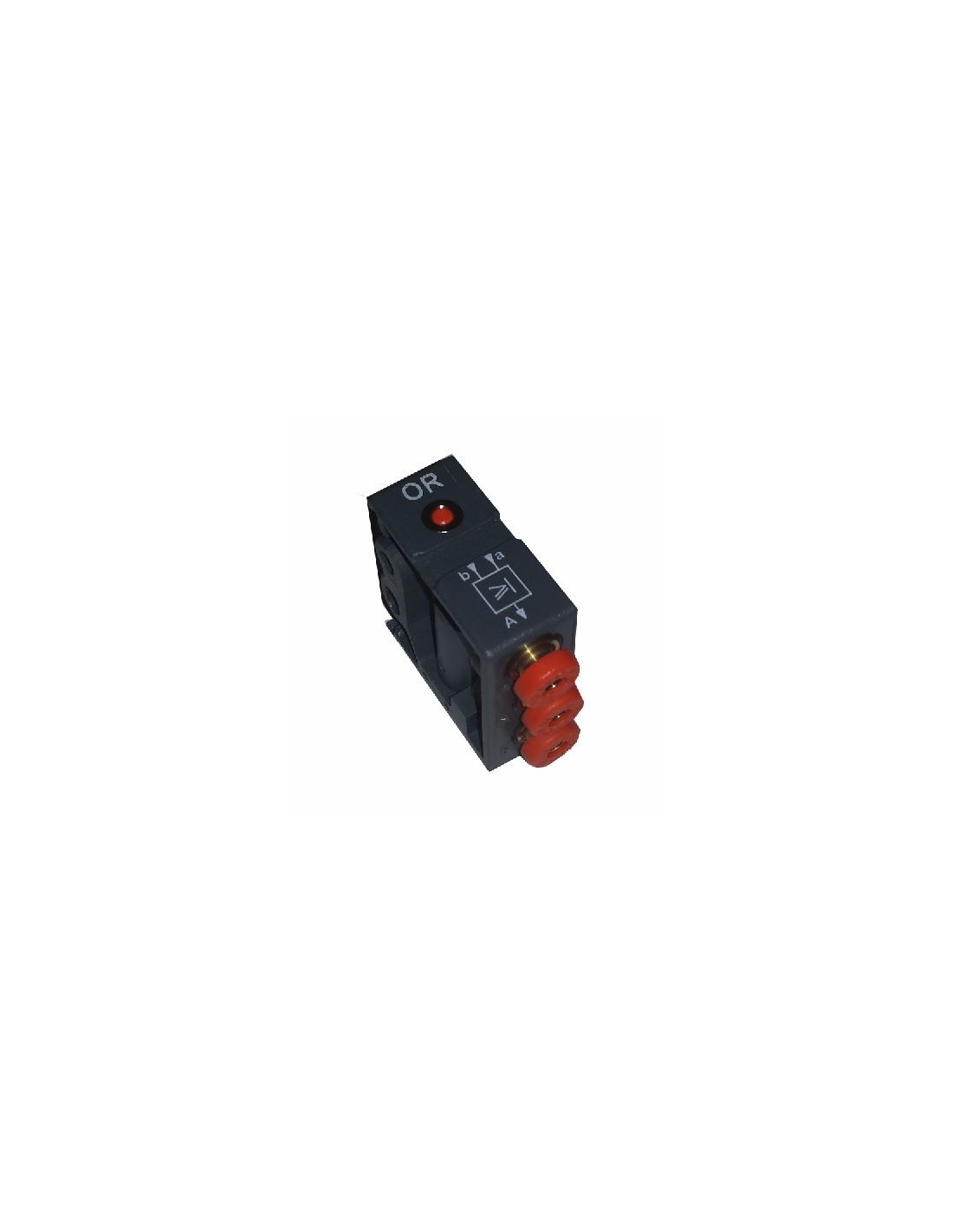

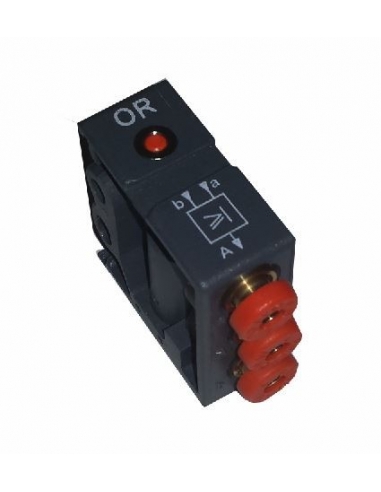

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Pneumatic logic valve function "OR", with built-in quick fittings for tube of diameter 4mm. fixation by through screws or for din-rail.

Manufacturer: Metal Work.

Manufacturer reference: W3604000001.

specifications:

  • Valve type: "OR" logic function.
  • Type of fittings: Quick connection diameter 4.
  • Type of material: Technopolymer.
  • Working pressure: 1.5 to 8 bar.
  • Nominal diameter: 2.7 mm.
  • Flow rate at 6 bar: 100 Nl/min.
  • Fluid: Compressed air filtered with or without lubrication.
  • Installation: In any position.
  • Mounting: In DIN profile or by means of through screws diameter 4.2mm.

dimensiones-valvula-logica-funcion-o

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
