Red/Amber/Green LED Signal Tower 230Vac

€59.18 Tax included

€48.91 tax excl.

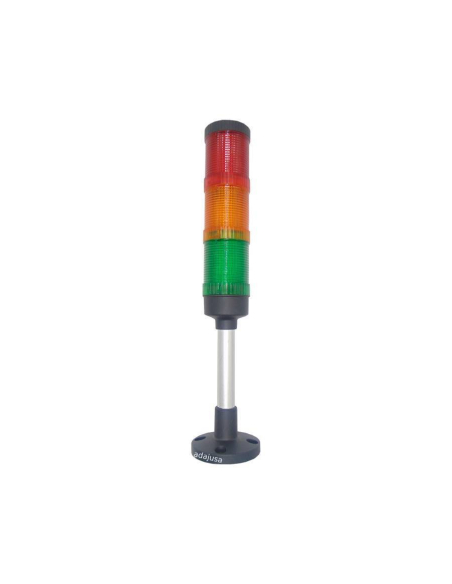

Signal tower with 3 LED luminous elements in red, amber and green colors, power supply voltage 230Vac. Diameter of the luminous rings 50mm.

Configurable light indication mode: permanent, rotating, flashing, flashing.


Part number: NYG3-50RYG


Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!

Signal tower of modular structure with 3 LED luminous elements in red, amber and green, power supply voltage 230Vac. Diameter of the luminous rings 50mm, diameter of the mounting base 70mm.


Signaling element mainly used to visually indicate the operating status of certain machines, automated processes or installations by providing a high visibility light effect. The signaling allows to indicate start-up actions, stops, failures, emergencies, etc. by assigning a luminous color to each of the functions, thus allowing to ensure safety in different types of industrial environments such as factories, workshops, public works and others. Its IP65 degree of protection makes it ideal for dusty, dirty and humid environments, both indoors and outdoors.
Pre-assembled and pre-wired beacon, with plastic base for easy and quick installation in both vertical and horizontal positions. The color of the wiring matches the color of the luminous elements for quick connection and testing. The light modules can be quickly assembled and disassembled and are interchangeable with each other, as well as additional modules can be added to the pre-assembled signal tower.


The scope of delivery includes light elements, terminal covers, mounting plate and wiring for connection. It allows manual configuration to adapt the light indication according to requirements in rotating, permanent, flashing or flashing mode.



Technical characteristics:
  • Manufacturer/Supplier: Tracon
  • Part number: NYG3-50RYG
  • Type of indicator light: LED
  • Number of indicator lights: 3
  • Diameter indicator lights: 50mm
  • Indicator light color: Red, Amber, Green
  • Indicator light modes: Permanent, rotating, flashing, blinking, flashing
  • Rated voltage: 230Vac
  • Rated voltage from isolation: 660V
  • Recommended safety fuse: 10A gG
  • Operating Temperature: -20oC to +65oC
  • Mounting: Vertical / Horizontal
  • Fixing: By screws
  • Degree of protection: IP65


Dimensions:








Connection:


Note: This signal tower model does not have an acoustic indicator



Professional use material, install respecting the regulations in force at the place of installation
