Material on request
€503.36 Tax included

€416.00 tax excl.

The measuring current of 2 mA allows to carry out ground resistance checks avoiding the activation of the circuit limiter under measurement.

Reference: PE-335


No queries yet, leave the first!


The PE-335 performs ground resistance measurements by the three-electrode method and also allows the measurement by the simplified two-electrode method. The measuring current of 2 mA allows to carry out ground resistance checks avoiding the activation of the circuit limiter under measurement.

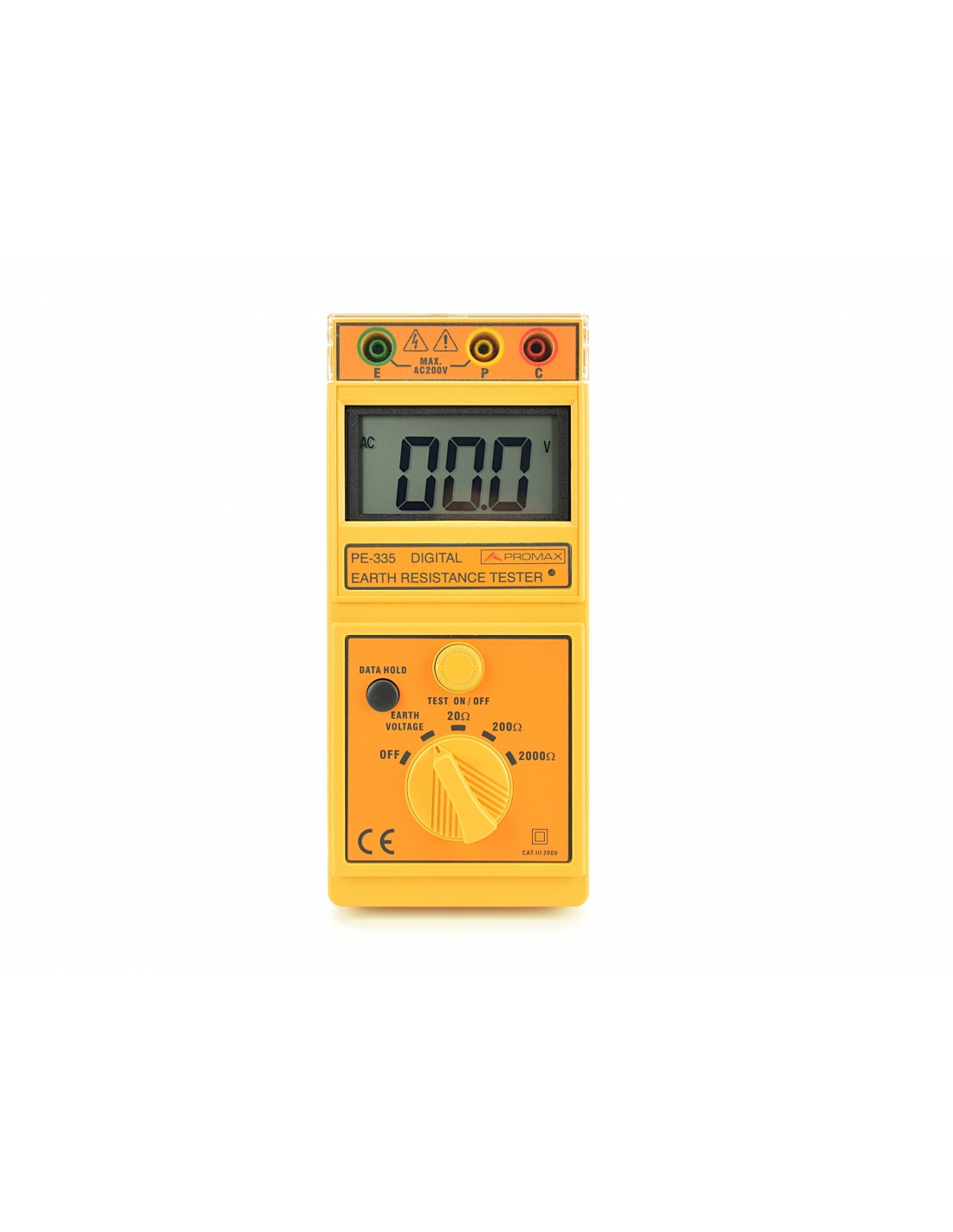

The PE-335 Digital Ground Resistance Meter has a large LCD screen and incorporates functions such as DATA HOLD, timer for test functions, ground voltage measurement, low battery indicator, etc.

Brand/Supplier: PROMAX
Reference: PE-335


Technical specifications:

  • Measuring system: Constant current injection 820 Hz, 2 mA
  • Ground voltage:0~199.9 V AC, 50/60Hz
  • Maximum input voltage: 200V RMS
  • Scale and resolution:0~19.99 Ω (0.01Ω) / 0~199.9 Ω (0.1Ω) / 0~1999 Ω (1Ω)

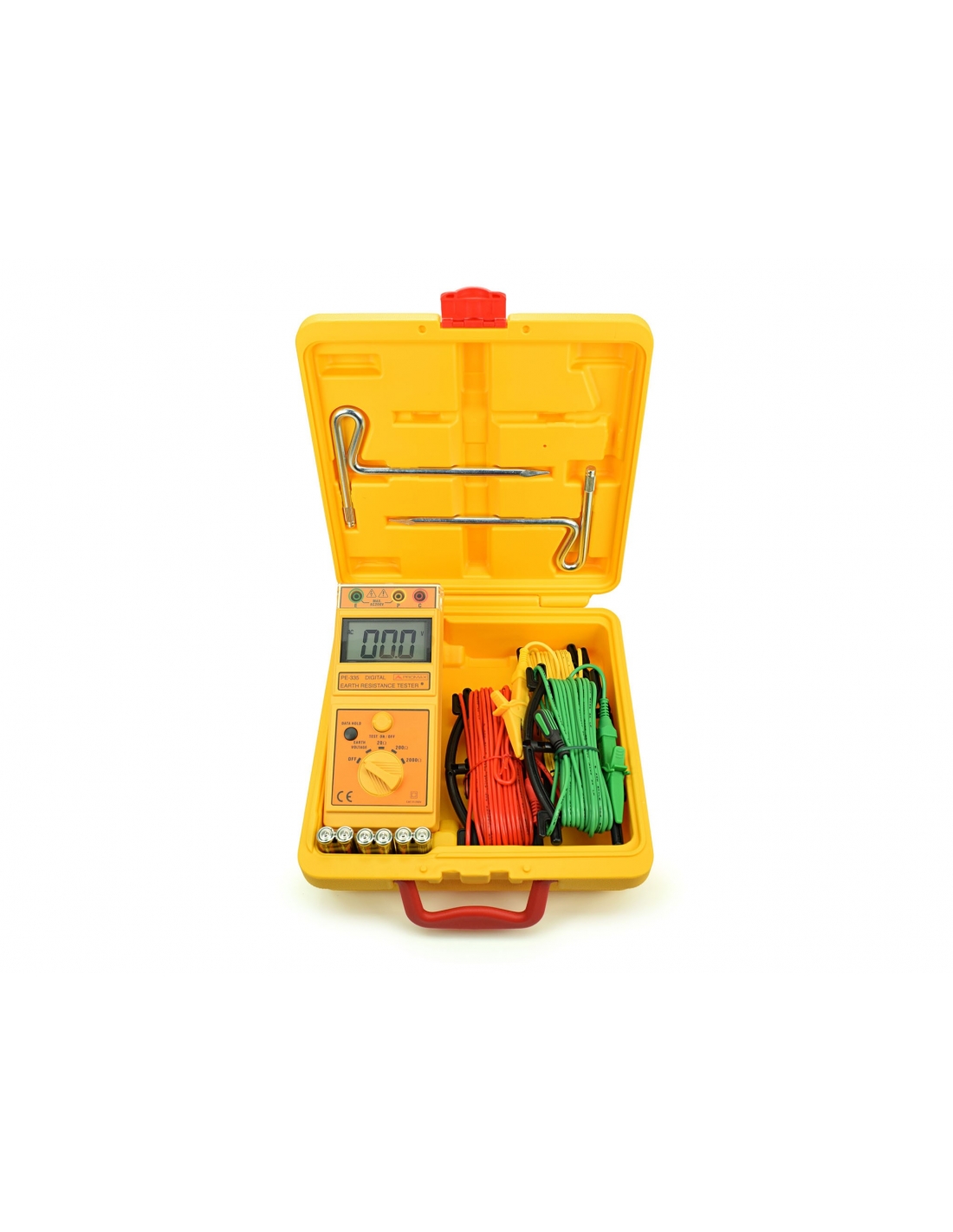

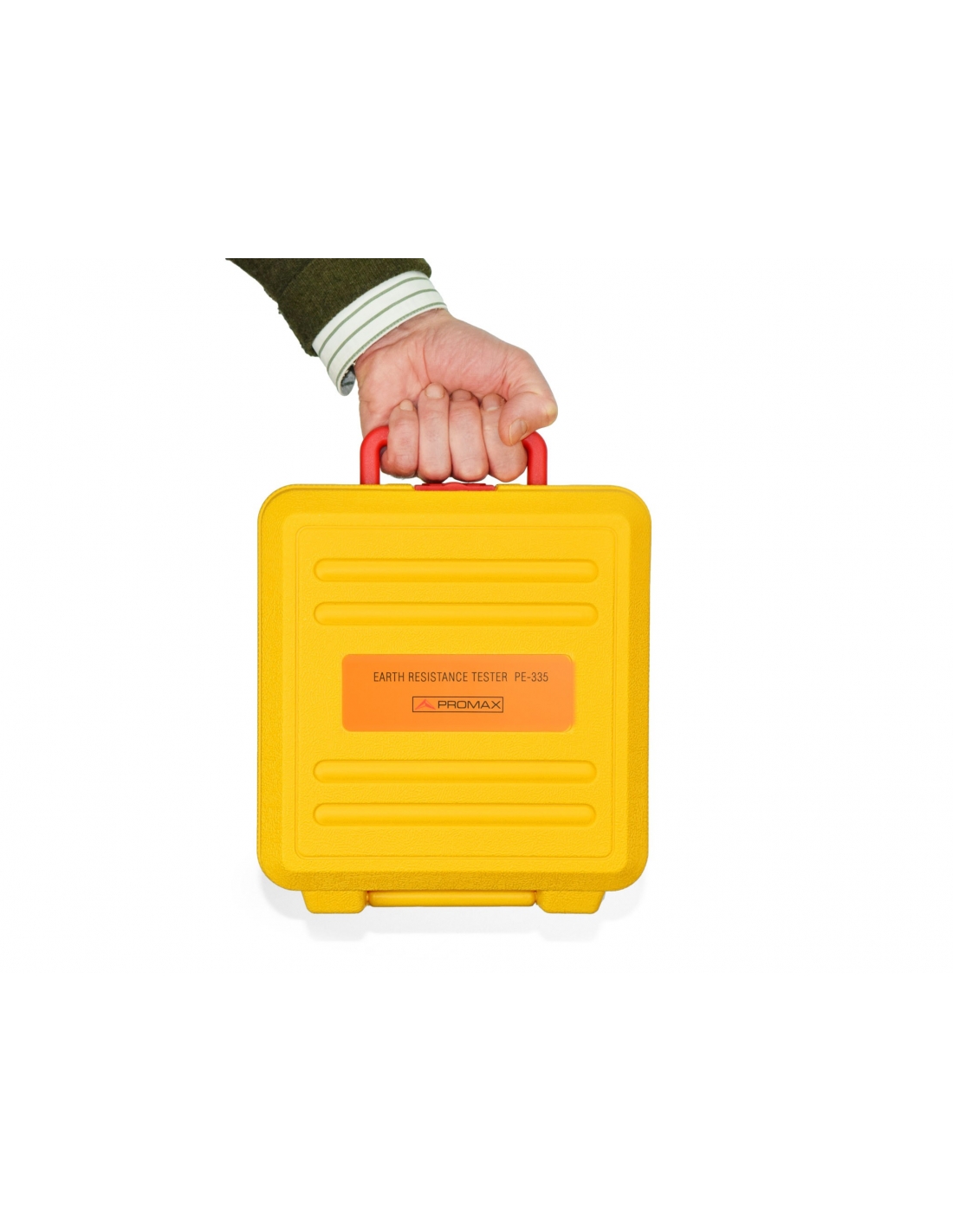

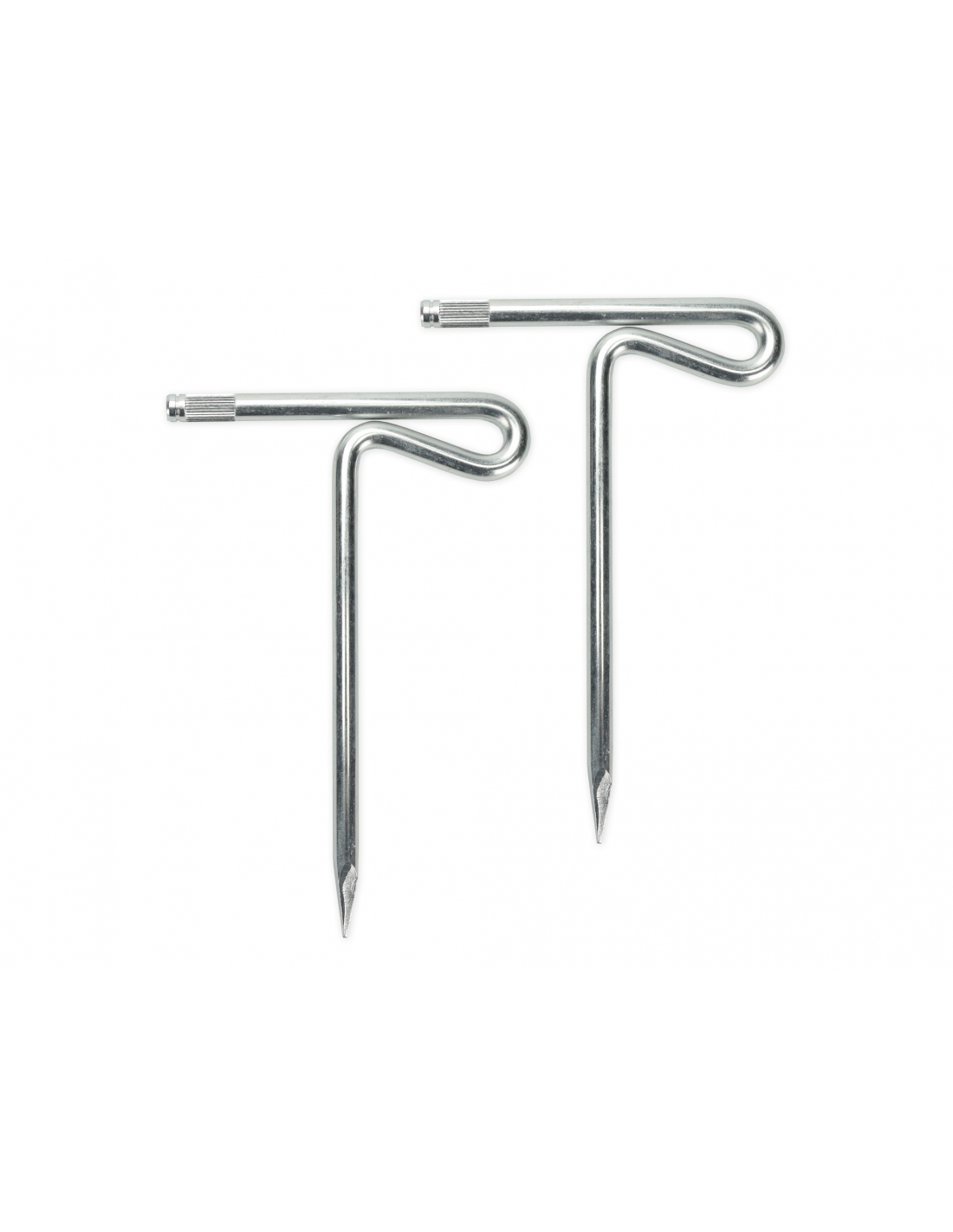

  • Accessories: Test cable set, 2 auxiliary ground pikes, instruction manual, carrying case




Calibration certificate not included in the supply. It must be requested before placing the order.
