Voltmeter 0-250 Vac 96x96
Voltmeter 0-250 Vac 96x96
Voltmeter 0-250 Vac 96x96
Voltmeter 0-250 Vac 96x96

Voltmeter 0-250 Vac 96x96

€17.64 Tax included

€14.58 tax excl.

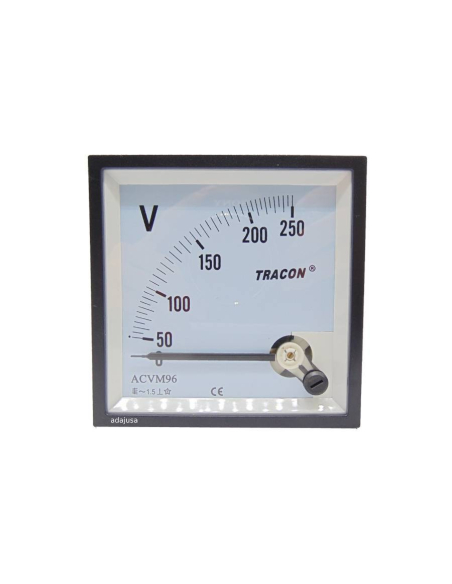

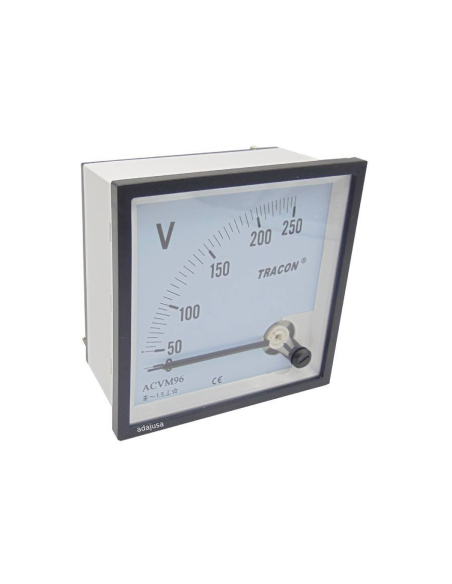

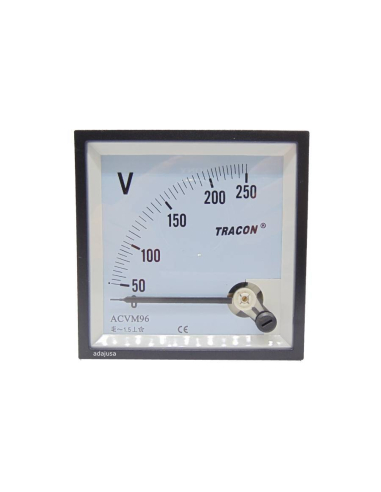

Analog voltmeter with measuring range 0-250 V in alternating voltage. Mounting Rear panel of 96x96mm. It allows to visualize in a very fast and visual way the value of a voltage.

Reference: ACVM96-250


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated

No queries yet, leave the first!


Analog voltmeter for direct measurement of alternating voltage in a measurement range from 0 to 250 V, panel with logarithmic scale. The voltmeter is prepared for mounting Rear panel measuring 96x96mm.


Manufactured in ABS case, easy and simple installation. They have an overload factor of long duration and momentary.

It has zero adjustment by means of a regulator located on the front of the measuring instrument. The measuring scale is engraved in black on white painted aluminum plate.


Characteristics:

  • Manufacturer/Supplier: Tracon
  • Part number: ACVM96-250
  • Type of measurement: Voltage in alternating current
  • Measuring range: 0-250 V
  • Type of connection: Direct
  • Class (accuracy): 1.5
  • Frame dimensions: 96 x 96mm
  • Cutting size: 90mm
  • Working temperature: -25ºC...+55ºC
  • Degree of protection (from the front side): IP52
  • Terminal protection degree: IP00
  • Degree of protection terminals (cover): IP20
  • Standards: EN60051, IEN 61010

Connection:



Dimensions:



Material for professional use, install in compliance with the regulations in force at the place of installation.
