Green luminous selector 2 full metal positions 1 open contact NA
Green luminous selector 2 full metal positions 1 open contact NA

Green luminous selector 2 positions full metal contact 1NO+1NC

€9.05 Tax included

€7.42 tax excl.

NYGBK2365Z

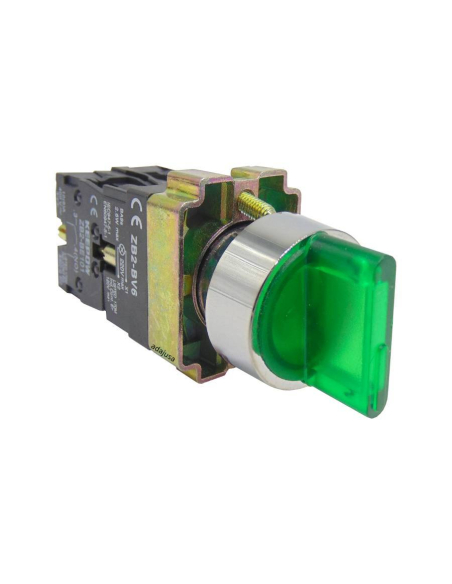

Luminous selector with short lever, metal, 2 maintained positions, 1 open contact (NO) and 1 closed contact (NC), green color.

The supply includes the complete selector with one open contact. Does not include bulb.

Reference: NYGBK2365Z
Electrical diagram of selector 2 positions NO_NC

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

1 question about the product
Privacy
Shipments
Returns


Green luminous selector with short handle, metallic and with 2 maintained positions, 1 open contact (NO) and 1 closed contact (NC), possibility of adding additional contacts. Drill diameter 22mm.

The supply includes the complete selector with an open contact and does not include a bulb.

characteristics:

  • Manufacturer/Supplier: Tracon
  • Reference: NYGBK2365Z
  • Green color
  • Number of positions: 2 maintained
  • Contact : 1 NO + 1NC
  • Material: metal
  • Ith intensity: 10(6) A
  • Intensity Ie (AC1,230V): 6A
  • Intensity Ie (AC15,230V): 3A
  • Intensity Ie (DC13,250V): 0.27A
  • Ui voltage: 660V
  • Um voltage: 400V
  • Contact resistance: 50 mOhm
  • Protection grade: IP42
  • Maximum bulb voltage: 230 V
  • Maximum bulb power: 2.6W
  • Bulb Cap : Ba9s
  • Regulations: CE, EN 60947-1, EN 60947-5-1
Illuminated selector dimensions

Material for professional use, install in compliance with the regulations in force at the installation site.

Questions

Question
¿PARA ESTE INTERRUPTOR VALEN LAS BOMBILLAS LED BA9S QUE VENDEIS?
Answer

Buenas,

Si valen las bombilas led que distribuimos, lo unico que tiene que tener presente es elegir la bombilla del mismo color que el selector.

Saludos

JUAN BAUTISTA on 01/26/2018 14:11:14
