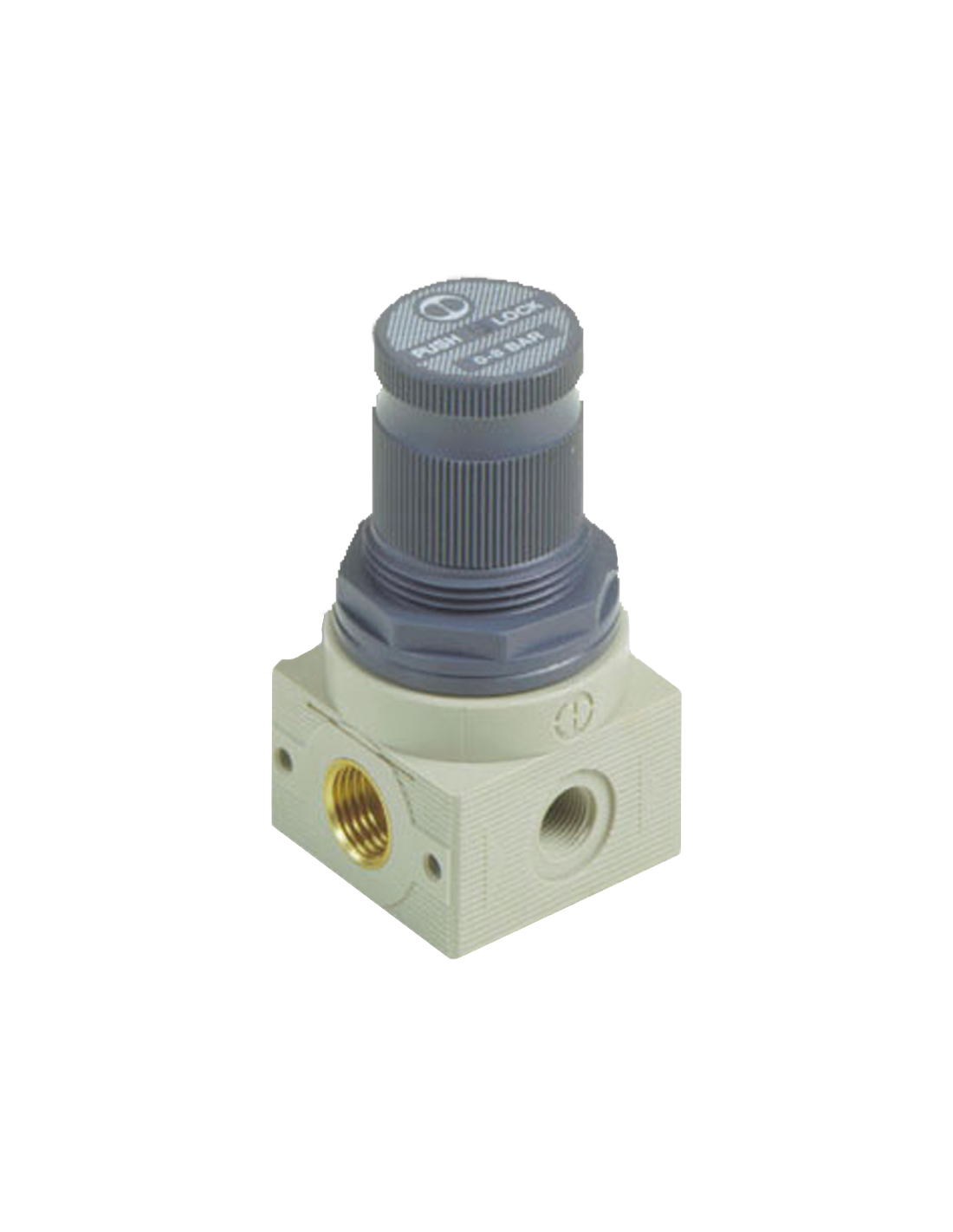

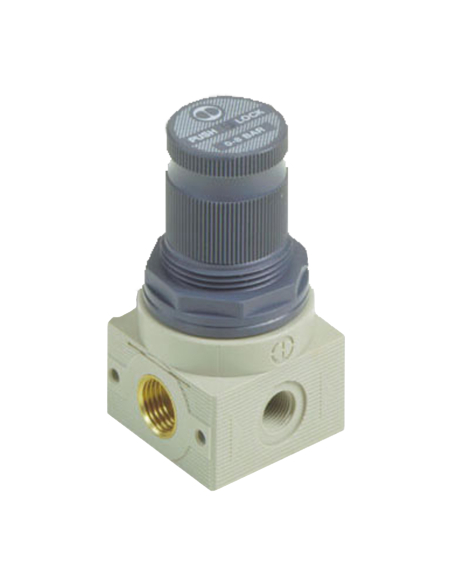

Pressure regulator 1/4 0-4 bar plastic Bit - Metal Work

€28.47 Tax included

23.34 tax excl.

5207002

Pressure regulator of 1/4 regulation 0-4 Kgrs, plastic body. Allows stability of the output pressure to the preset pressure. Rear panel or bracket fastening.

The pressure gauge and square must be ordered separately.

Ref: 5207002 - MR BIT MR 1/4 04

Simbolo neumático regulador de presión

Logotipo Metal Work

Representative image for illustrative purposes, the article supplied will correspond to the indicated specifications.

Representative image for illustrative purposes, the article supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


Pneumatic pressure regulator of 1/4" technopolymer body. High adjusted pressure stability. The regulator provides a high flow rate with a reduced pressure drop. The controller supports transpanel (recessed) mounting.

The pressure gauge or shield is included in the supply.

  • Manufacturer: Metal Work
  • Reference: 5207002 - MR BIT SR 1/4 04
  • Size: 1/4"
  • Adjustment range: 0-4 bar.
  • Maximum input pressure: 13 bar.
  • Flow rate: 600Nl/min.
  • Fluid: Filtered air with or without lubrication.
  • Maximum temperature: 50oC.
  • Weight: 80gr.
  • Mounting position: any.
  • Pressure gauge connection: G 1/8".
  • Material: technopolymer.

For other models or sizes consult

Dimensiones reguladores de presión serie bit Metal Work

Material for professional use, install respecting the regulations in force in the place of installation.

Para ampliar la información puede descargar la ficha técnica pulsando sobre la pestaña "Adjuntos"

Material for professional use, install respecting the regulations in force in the place of installation.

Para ampliar la información puede descargar la ficha técnica pulsando sobre la pestaña "Adjuntos"
