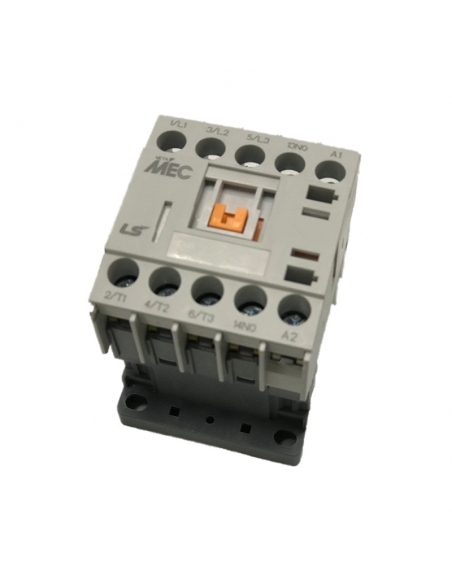

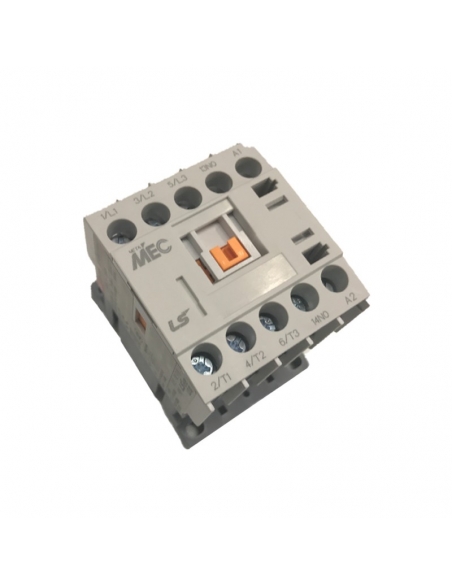

Mini connector 12A coil 24Vcc open auxiliary contact NA - LS

€28.51 Tax included

€23.56 tax excl.

Electric three-phase mini connector for motor control, heating, lighting, ventilation, or general uses, 3 pole with a current capacity of 12A AC3 category or 20A category AC1, with 24Vdc coil, the contactor is equipped with an open auxiliary contact (NA).

Ref: GMD-12M DC24V 2W 1a

Esquema eléctrico contactor 3P auxiliar NA

Logotipo LS LG industrial Systems

No queries yet, leave the first!


12A three-phase LSmini connector (3 poles) in AC3 category or 20A in AC1 category, contactor coil voltage is 24Vdc, with an open auxiliary contact NA. Fixing the contactor by screws or DIN rail. The intended uses of the contactor are for electric motor control, heating, lighting, ventilation, and in general uses.

General characteristics of the mini contactor:

  • Manufacturer: LS.
  • Ref: GMD-12M DC24V 2W 1a
  • Number of poles: 3.
  • Assigned current in AC3: 12A.
  • Maximum thermal current Ith: 20A.
  • Maximum voltage: 660Vac.
  • Maximum power: 3-AC3 230V: 3 Kw.
  • Maximum power: 3-AC3 400V: 5.5 Kw.
  • Control voltage (coil): 24Vdc.
  • Auxiliary contact integrated into the mini-connector: 1 open contact (NA).

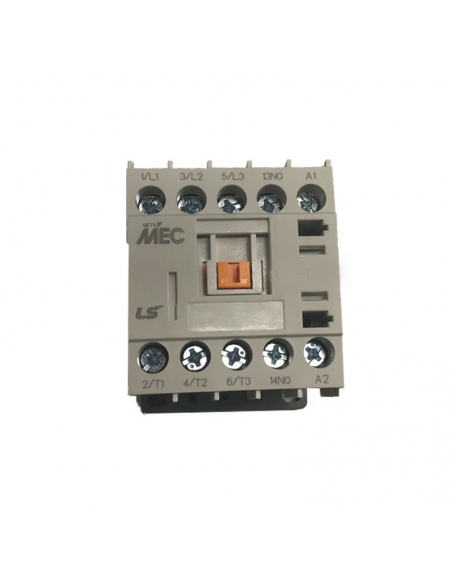

Dimensiones contactor LS vista frontal

Minicontactor LS Vista lateral y posterior
