Change over switch 1 pole 20A - HY

€9.78 Tax included

€8.08 tax excl.

Modular 1-pole 20a, lever driven with 3 fixed positions (I-0-II), 1 contact.

Reference: HICD-1P20 20a

No queries yet, leave the first!

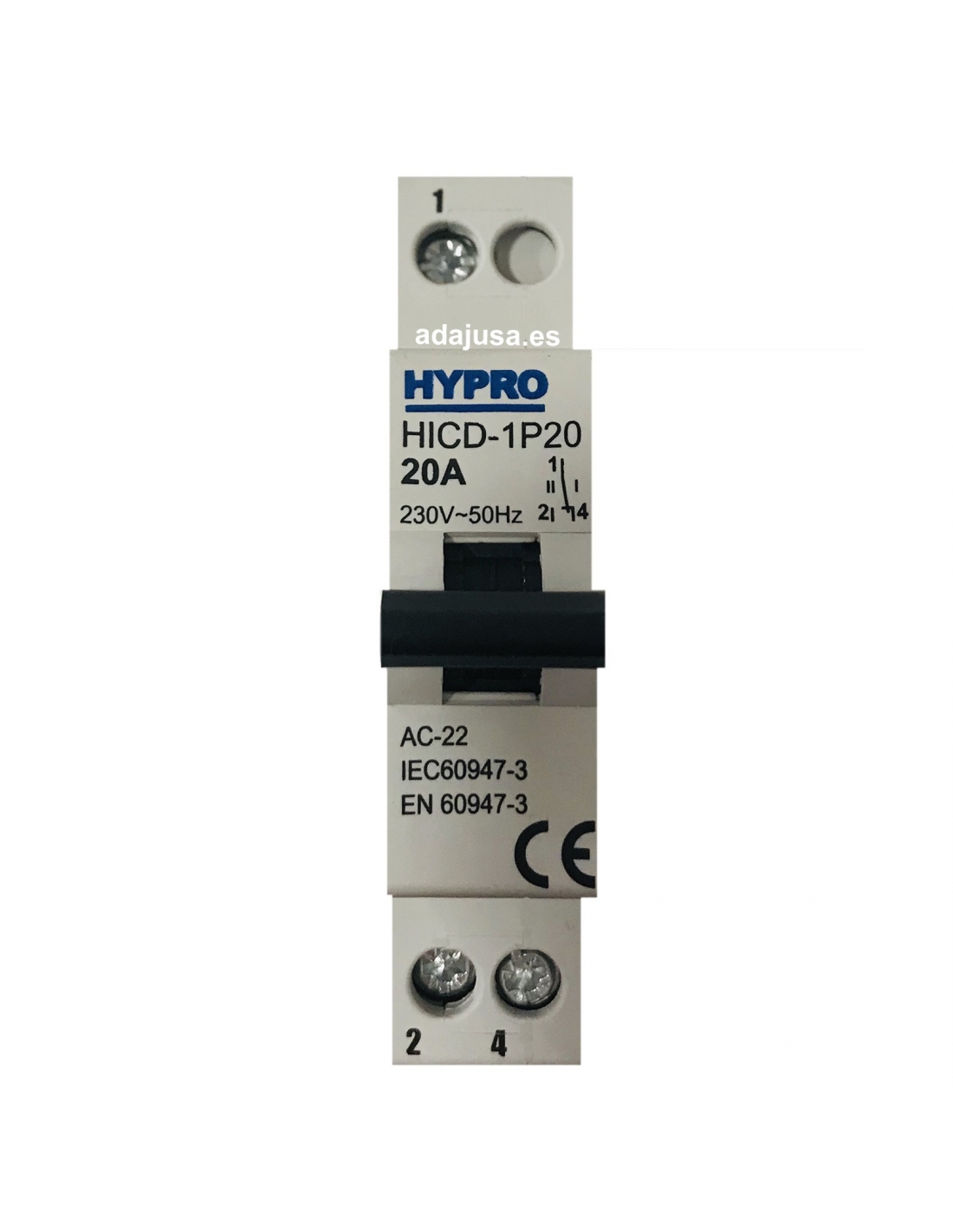

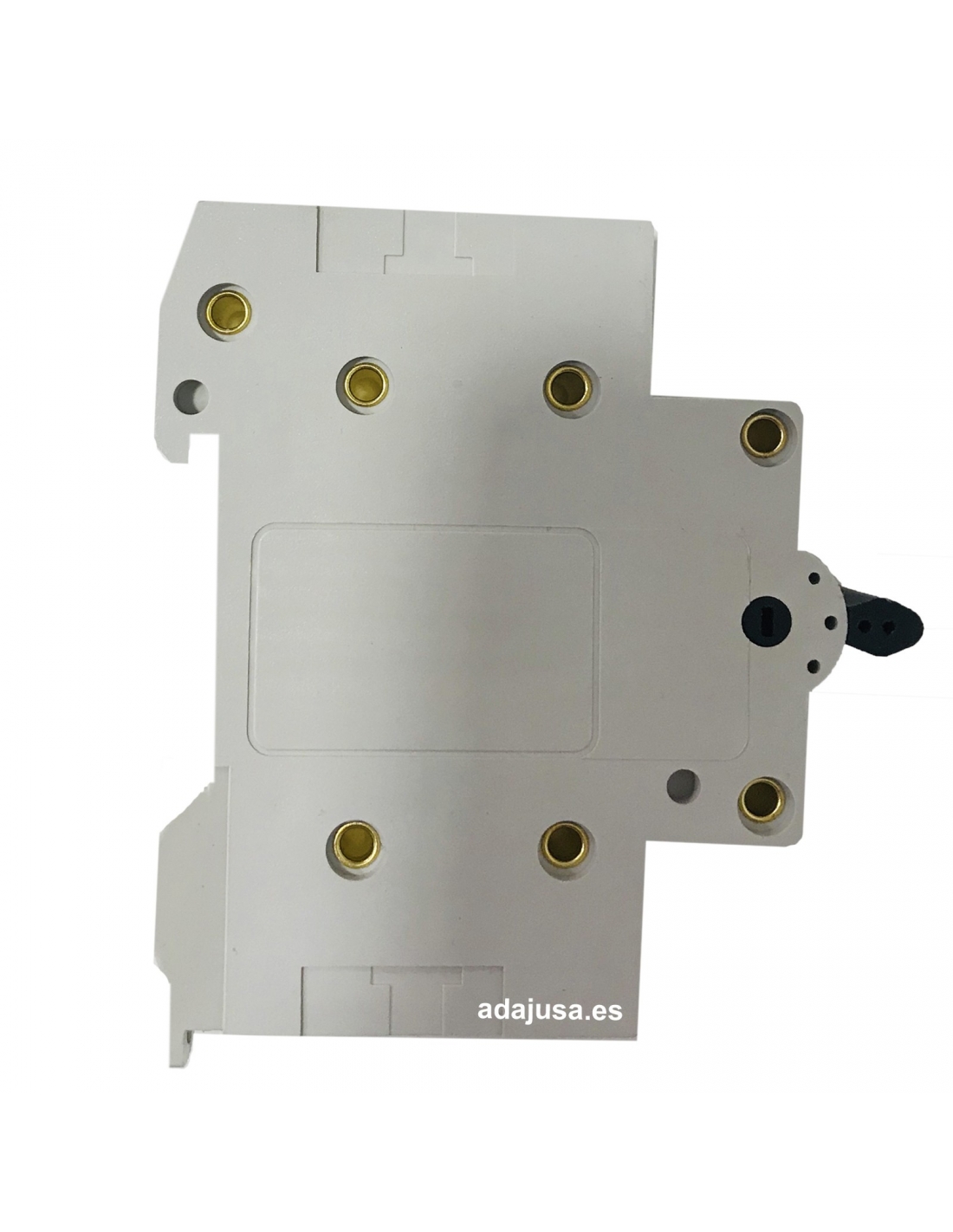

Change over switch , electric circuit selector, 1 pole 20A. The drive is done by front lever, with 3 positions maintained (I-0-II). 1 output contact.

Technical details:

  • Manufacturer/Supplier: Hyundai Electric
  • Ref: HICD-1P20 20A
  • Assigned Employment Intensity (Ie): 20A to 250Vac 50/60 Hz
  • Assigned employment voltage: 250Vac 50/60Hz
  • Type of control: 3-position lever
  • Contact type: 1 C/O
  • Mounting mode: fixed
  • Mounting bracket: DIN rail
  • Dimensions:
    • Height: 82mm
    • Width: 18mm
    • Depth: 75mm
  • Color: white
  • Regulations: IEC60947-3; EN60947-3
