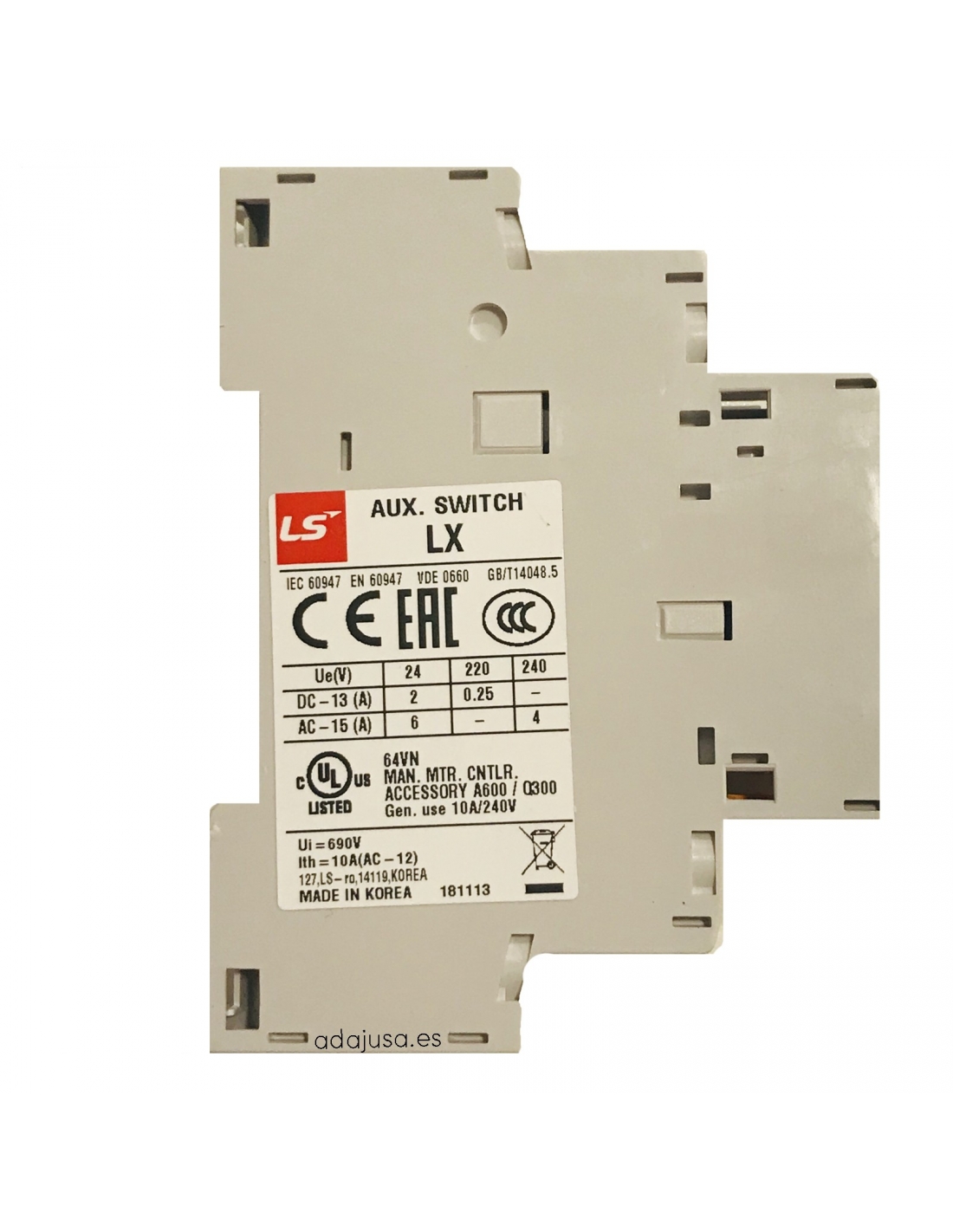

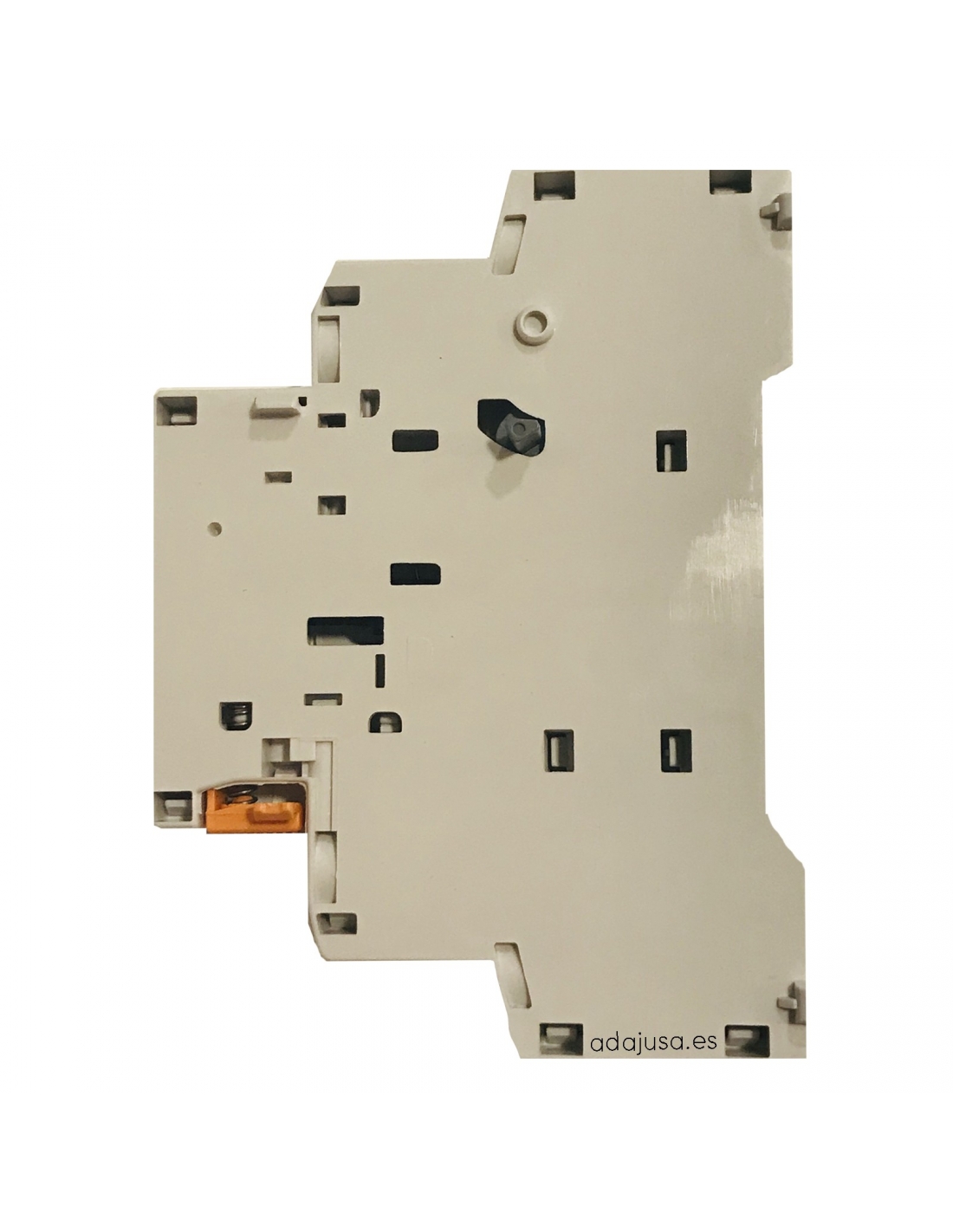

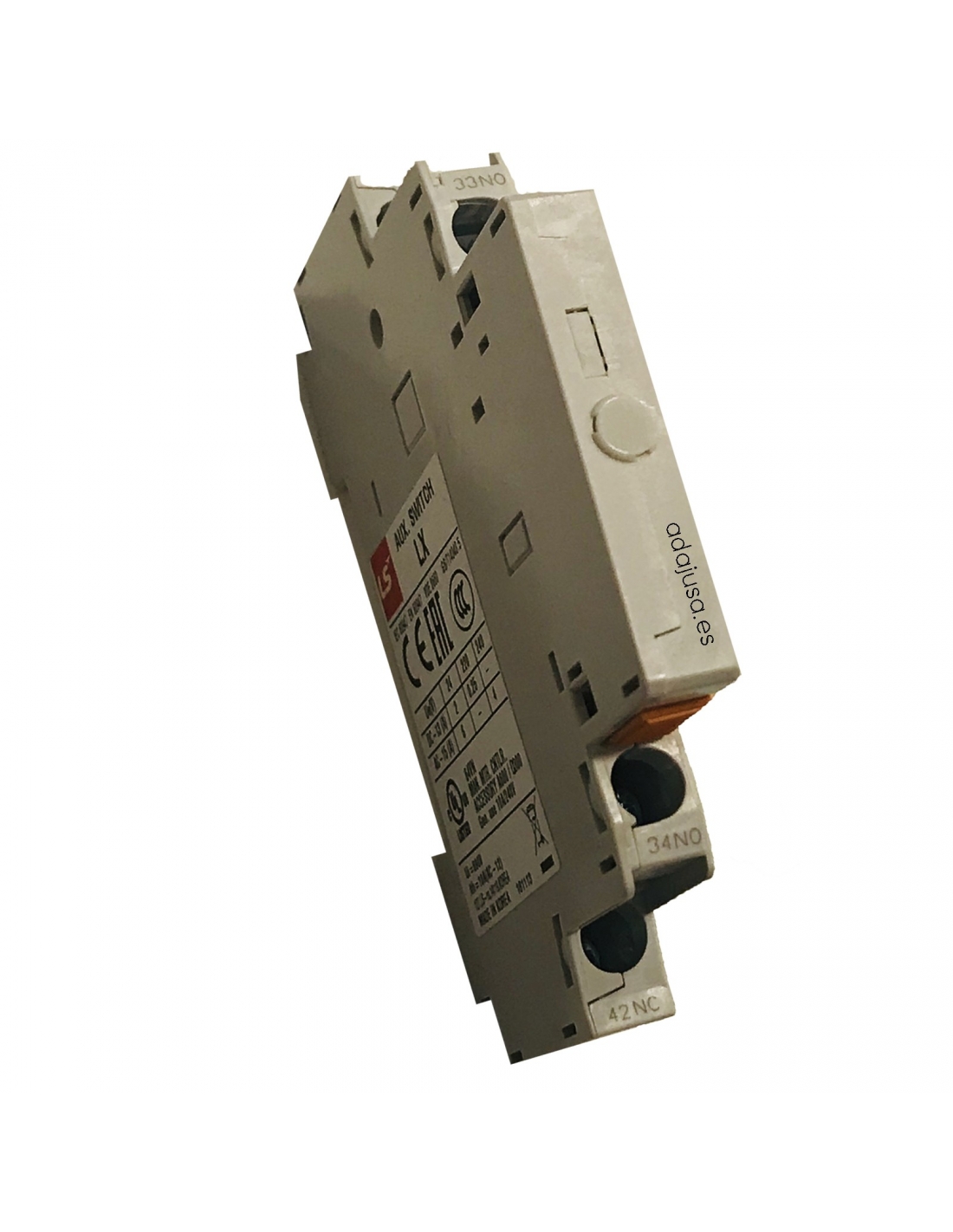

Side contact circuit breaker MMS-32 1NO 1NC - LS
Side contact circuit breaker MMS-32 1NO 1NC - LS
Side contact circuit breaker MMS-32 1NO 1NC - LS
Side contact circuit breaker MMS-32 1NO 1NC - LS
Side contact circuit breaker MMS-32 1NO 1NC - LS
Side contact circuit breaker MMS-32 1NO 1NC - LS

Side contact circuit breaker MMS-32 1NO 1NC - LS

€9.78 Tax included

€8.08 tax excl.

Contact block for circuit breaker 1 open contact and one closed (NO + NC), for mounting on the left side, to be used in MMS-32 series circuit breakers.

Ref: LX 1NO 1NC

motor protection circuit breaker side contacts block diagram

LS Electric Logo
Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


Camera to mount with circuit breaker ( motor circuit-breaker ) with 1 open contact (NO) and another closed contact (NC).

This contact block is only valid for LS brand circuit breakers, for the MMS-32 series

Characteristic:

  • Manufacturer: LS (LG).
  • Reference: LX1NO1NC.
  • Contacts: 1 open and 1 closed (NO+NC).
  • Mounting mode: Side.
  • Circuit breaker series: MMS-32.
  • Ui: 250V.
  • Ue max.: 250V.
  • Ith (40º): 10A.
  • Ith (60º): 6A.
  • In AC-15: 6A 24Vac; 4A 240Vac.
  • In DC-13: 2A 24Vdc; 0.25A 220Vdc.
  • Weight: 30g.
  • Regulations: IEC947-5-1; VDE0660
  • CE marking.

Assembly of LS motor protection circuit breaker accessories

For more information, you can download the technical sheet by clicking on the "Annexes" tab.
Material for professional use, install in compliance with the regulations in force at the place of installation.
