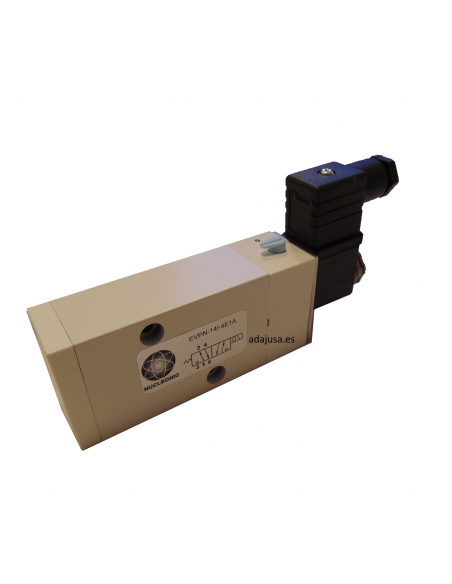

Monostable NAMUR 5-way solenoid valve (with coil) - Mindman - ADAJUSA
Solenoid valve NAMUR 5 ways monostable 24Vdc - Mindman
Solenoid valve NAMUR 5 ways monostable 24Vdc - Mindman
Monostable NAMUR 5-way solenoid valve (with coil) - Mindman - ADAJUSA

Solenoid valve NAMUR 5 ways monostable 24Vdc - Mindman

€65.82 Tax included

€54.40 tax excl.

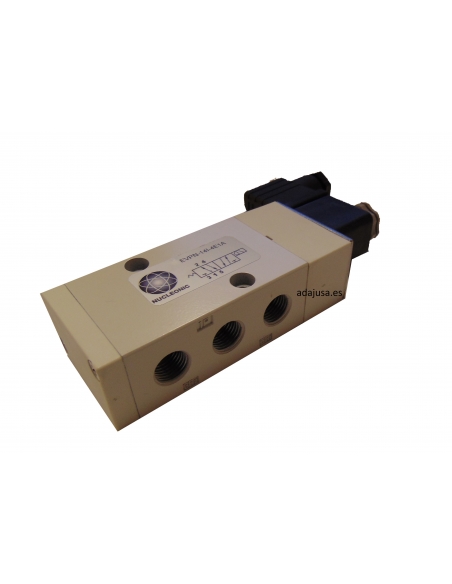

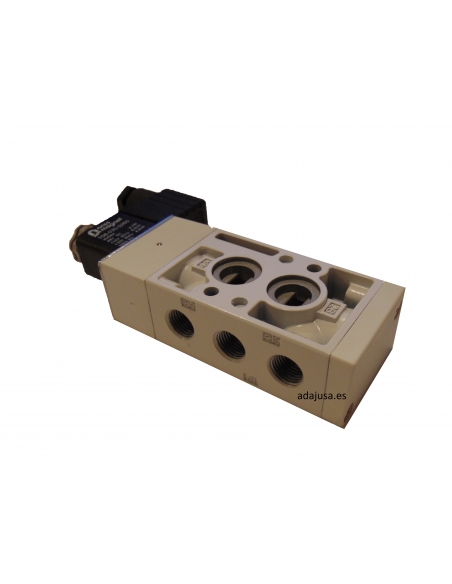

Pneumatic solenoid valve 1/4 according to NAMUR standard of 5 monostable ways,with operating voltage coil of 24Vdc.
Reference: EVPN144E12




Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Pneumatic solenoid valve 1/4 according to NAMUR standard of 5 monostable ways, with coil of 24Vdc. To be installed directly on pneumatic turning actuators.

The supply of the solenoid valve includes:

  • Solenoid valve 1/4-5/2.
  • 1 Coil 24Vdc
  • 1 Connector 22mm.
  • Gaskets and fixing screws.

Specifications:

  • Solenoid valve manufacturer: Mindman.
  • Reference: EVPN-14-4E2 24Vcc
  • Standard: NAMUR.
  • Thread type: G 1/4".
  • Coil voltage: 24Vdc.
  • Coil power: 2.6W.
  • Fluid type: Pressurized air, with or without lubrication.
  • Solenoid valve working pressure: 1.5 to 8 bar.
  • Minimum working pressure: 2 bar
  • Working temperature: 5ºC to 50ºC.
  • Effective surface: 35mm².
  • Manual drive: Yes.

Dimensiones electroválvulas NAMUR monoestable

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
