Needle roller bearings with inner ring and single row NKI ISB | ADAJUSA
Needle roller bearings with inner ring and single row NKI ISB | ADAJUSA

Needle roller bearings NKI 12/16 12x24x16 - ISB

€11.64 Tax included

€9.62 tax excl.

Needle roller bearings with machined rings. Single row with edges and with track (inner ring) dimensions 12x24x16mm. Needle roller bearings with an inner ring are used when the shaft is not manufactured as a bearing raceway.

Reference: NKI 12/16

Logo Description automatically generated

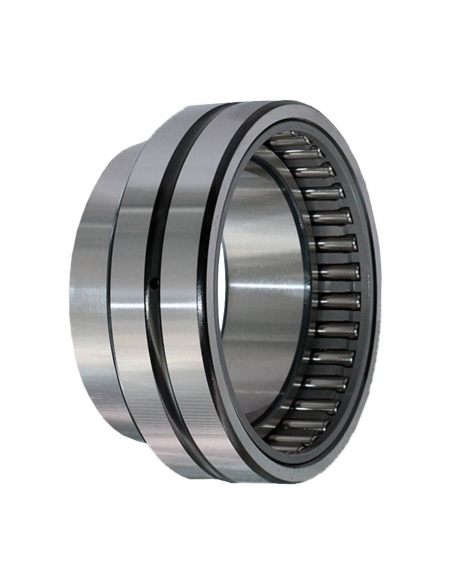

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!


Non-separable needle roller bearings, needle roller and outer ring form a self-retaining unit. These bearings are suitable for very high load capacities and with minimal radial construction gaps.

For needle roller bearings with an inner ring, the radial clearance is CN according to DIN 620-4.

Manufacturer: ISB
Reference: NKI 12/16
Dimensions: Ø12xØ24x16mm .

For other references or measures consult.



Characteristics:

  • Material: hardened steel.
  • Dimensions
    • d: 12mm
    • F: 16mm
    • D: 24mm
    • B: 16mm
  • Load coefficients (N)
    • Dynamic C: 10800
    • Dynamic Static C0: 13100
  • Maximum rpm: 22800

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.
