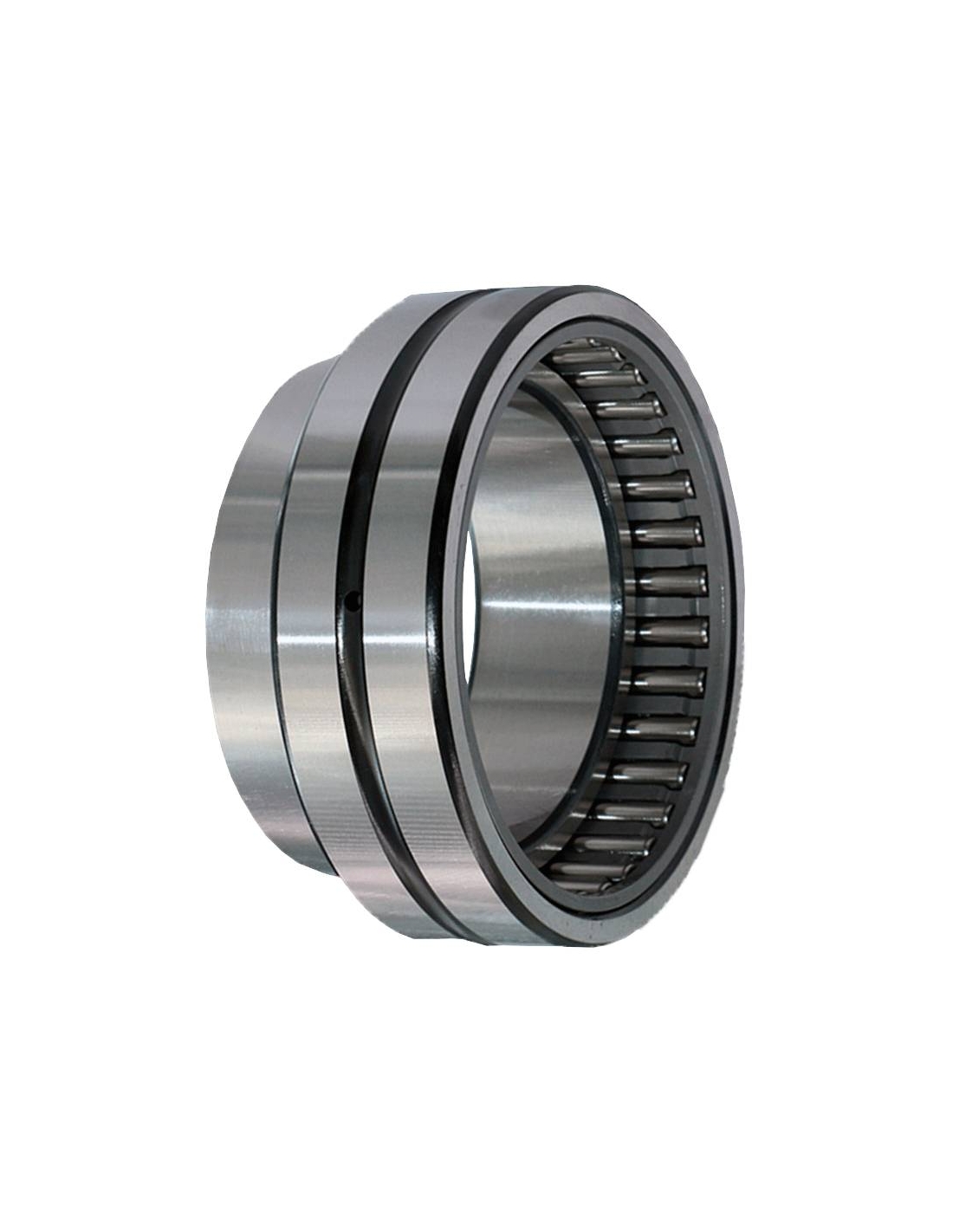

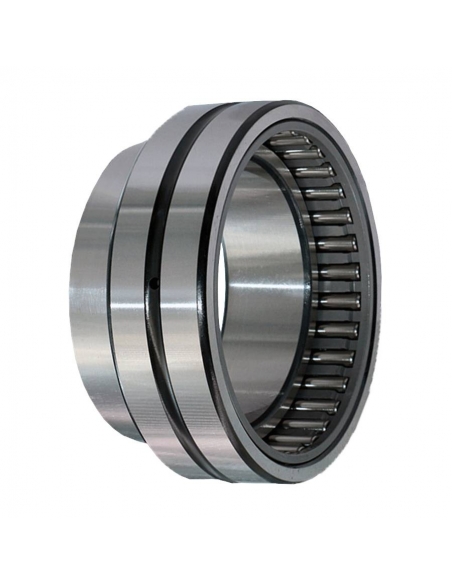

Needle roller bearings with raceway NKI 35/30 35x50x30 - ISB

€33.94 Tax included

€28.05 tax excl.

Needle roller bearings with machined rings. Single row with ribs and with raceway (inner ring) dimensions 35x50x30mm. Needle roller bearings with inner ring are used when the shaft is not manufactured as a bearing raceway.

Part No.: NKI 35/30

Logotipo Descripción generada automáticamente

Representative picture for illustrative purposes, the item supplied will correspond to the specifications shown

No queries yet, leave the first!
Privacy
Shipments
Returns


Non-demountable needle roller bearings, needle roller and cage assembly and outer ring form a self-retaining unit. These bearings are suitable for very high load carrying capacities and minimum radial clearances.

In needle roller bearings with inner ring, the radial internal clearance is NC according to DIN 620-4.

Manufacturer: ISB
Part No.: NKI 35/30
Dimensions: Ø35xØ50x30mm.

For other references or dimensions please consult.



Characteristics:

  • Material: hardened steel.
  • Dimensions
    • d: 35 mm
    • F: 40 mm
    • D: 50 mm
    • B: 30 mm
  • Load coefficients (N)
    • Dynamic C: 37000
    • Static dynamic C0: 75000
  • Maximum rpm: 11400

Material for professional use, to be installed in compliance with the regulations in force at the place of installation.

For further information you can download the technical data sheet by clicking on the "Attachments" tab
