Air intake 1/4 PA New Deal - Metal Work

€18.35 Tax included

15.04 tax excl.

9200401

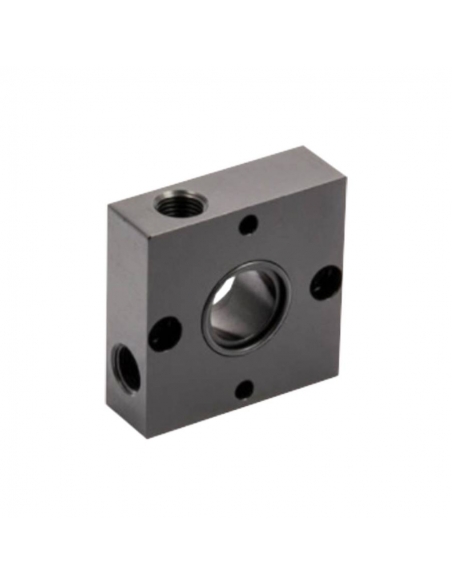

Air intake PA New Deal 1/4"

Allows air extraction in PRL New Deal groups.

Reference: 9200401


metal work logo

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns

Air intake PA New Deal 1/4"

The function of the air intake is to allow, regardless of the position in which it is mounted, the extraction of air from the PRL New Deal group.
Its use is necessary when you want to extract air from the FRL group itself in various treatment phases (normal, reduced filtering, lubricated, etc.).

Supplied with 2 screws for fixing between F/L and R/FR.

Reference: 9200401

 Characteristics:

  • Threaded coupling: 1/8"
  • Maximum admitted pressure: 18 bar
  • Maximum temperature at 1MPa; 10bar; 145psi: 50ºC
  • Weight: 0.06Kg

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.
