Lubricator 1 metallic New deal - Metal Work

Name: Lubricator 1 metallic New deal - Metal Work
Brand: Metal Work
SKU: 1623001
Price: 141.9348 EUR
Availability: PreOrder

€141.93 Tax included

€116.34 tax excl.

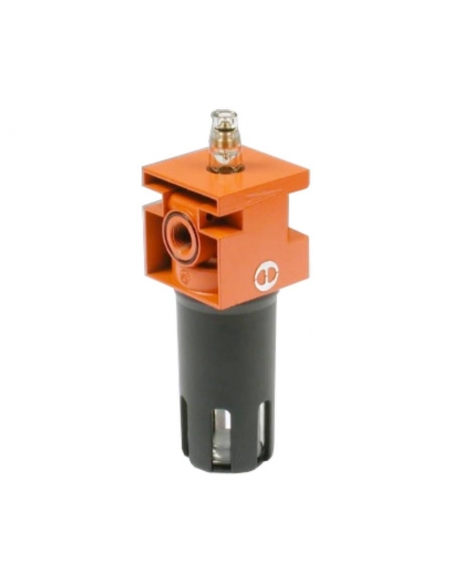

1" metal pneumatic lubricator cup. New Deal Group

Reference: 1623001

metal work logo

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!

Privacy

Shipments

Returns

1" pneumatic lubricator cup, with metal body.

Characteristic:

Manufacturer: Metal Work
Reference: 1623001
Micrometric regulation of lubrication.
360° oil level display
Threaded drive: 1"
Lubrication Type: Fog
Cup capacity: 380 cm3
Maximum inlet pressure: 18 bar
Flow rate at 6 bar (0.6 MPa ÷ 87 psi) ∆P 0.5 bar (0.05 MPa ÷ 7 psi): 12800 Nl/min
Flow rate at 6 bar (0.6 MPa ÷ 87 psi) ∆P 1 bar (0.1 MPa ÷ 14 psi) 16000 Nl/min
max temperature at 1 MPa; bar ; 145psi: 50ºC
Wall fixing screws: M6 x 75
Mounting position: upright
Fluid: filtered air

For other references or sizes consult.

dimensiones lubricador neumatico

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.

Newdeal group file

Download (3.12MB)
