M5 non-return valve with FKM seals - Aignep

Name: M5 non-return valve with FKM seals - Aignep
Brand: Aignep
SKU: 6062V M5
Price: 5.9169 EUR
Availability: InStock

€5.92 Tax included

€4.89 tax excl.

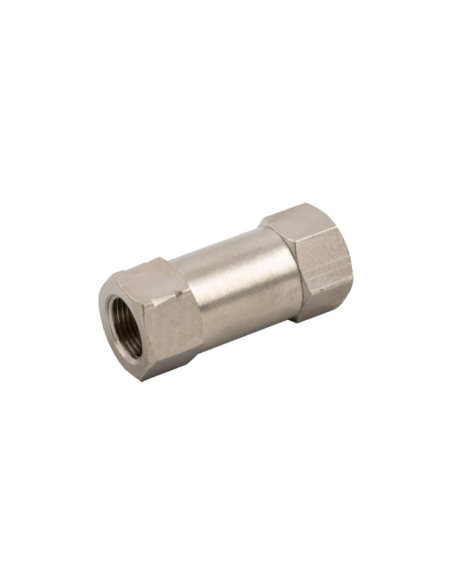

M5 non-return valve, metal. It allows the passage of air only in one direction and prevents it in the opposite direction.

Made of nickel-plated brass with FKM joints. Female thread on both sides.

Series: Function
Reference: 6062V M5

Non-return valve aignep
normative

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!

Privacy

Shipments

Returns

Metal M5 non-return valve, Allows the passage of air only in one direction (indicated by the date on the body) and prevents it in the opposite direction.

Actuated directly by air, it is used as a safety device, maintaining pressure in a part of the circuit, even when there is no pressure in the supply.

drawing 6062

Technical characteristics:

Manufacturer: Aignep
Reference: 6062V M5
Size: M5
Fluid: Compressed air
Body material: Nickel-plated brass.
O-Ring O-Ring: FKM
Maintenance spring: AISI 302 steel
Max pressure: 8 bar
Minimum pressure that guarantees closure: 2 bar
Indicative opening pressure: 0.2 bar
Temperature with FKM joints: -15 ºC + 200ºC.
Thread: Gas cylindrical ISO 228
Metric: ISO R/262

Dimensions:

Material for professional use, install in compliance with the regulations in force at the installation site.

For more information you can download the technical sheet by clicking on the "Attachments" tab

catalogo serie fucntion

Download (8.93MB)
