Cable 3-wire with M8 female connector 5m

€11.16 Tax included

€9.22 tax excl.

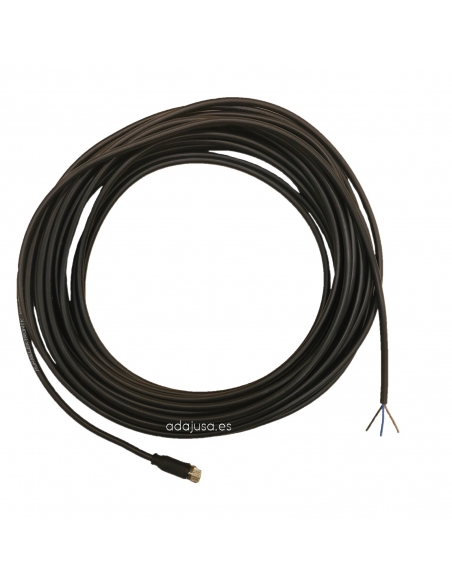

3-wire cable with assembled straight female M8 connector . Cable length of 5 meters. Plastic casing with optimal resistance against chemical elements and oils.
Reference: 7000-08041-6100500.



Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

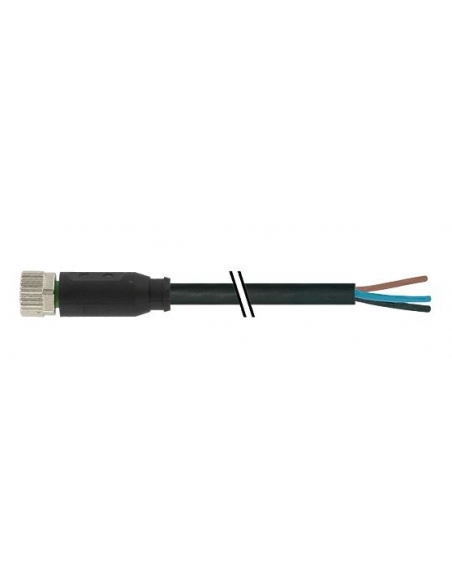

Connection cable for electrical elements with female M8 connector. The cable is made up of 3 insulated 2.25mm conductors, assembled with a straight M8 female connector. The cable length is 5 meters. The cable is made of black PVC.

  • Manufacturer Murr Electronick.
  • Manufacturer reference: 7000-08041-6100500.
  • Connector type: Straight M8 female .
  • number of poles: 3 pins.
  • Cable type: PVC 3x0.25 in black.
  • Cable colors: brown, black and blue.
  • AWG: similar to AWG 24.
  • Working voltage: 50Vdc/ac.
  • Maximum admissible current per contact: 4A.
  • Wire material: PVC.
  • Cable length: 5m.
  • Wire Material: Cu Wire
  • Approval (cable): UL (AWM-Style 2464/1731), CSA.
  • Resistance (main): max. 79 Ohm/km (20°C).
  • Coupling nut material: Nickel-plated brass.
  • Protection: IP67.
  • Suitable for energy chains: Yes.
  • Wire outer diameter: 4.5mm ±0.5mm.
  • Radius of curvature (mobile): 10xØ outside.
  • Temperature range (fixed): -30º.. +80ºC.
  • Temperature range (mobile): -5º... +80ºC.
  • Material (wire insulation): PVC.
  • Material properties (cable insulation): Free of CFC, cadmium, silicone and lead.
  • Protection: IP65; IP66K, IP67 in plugged and screwed state (EN 60529).

Diagram-connector-3-pins-7000-08041-6100500

Dimensions-connector-3-pins-female

Material for professional use, install in compliance with the regulations in force at the place of installation.
