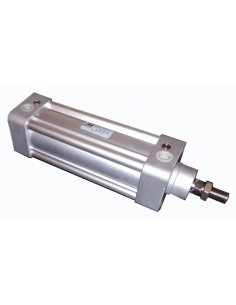

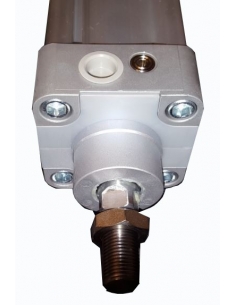

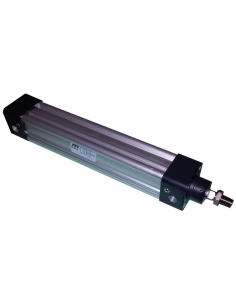

Cylinder 80x450 double effect - Mindman

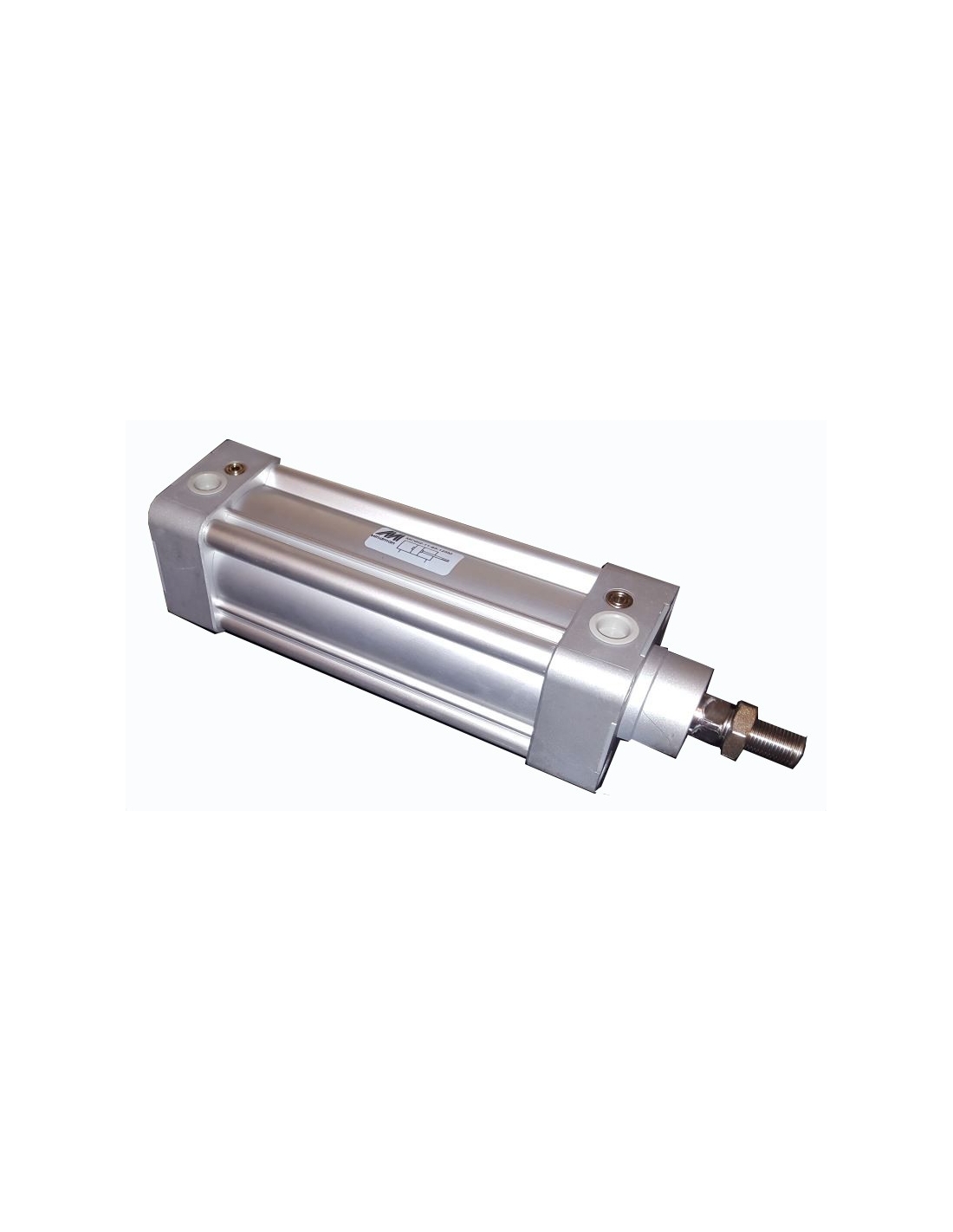

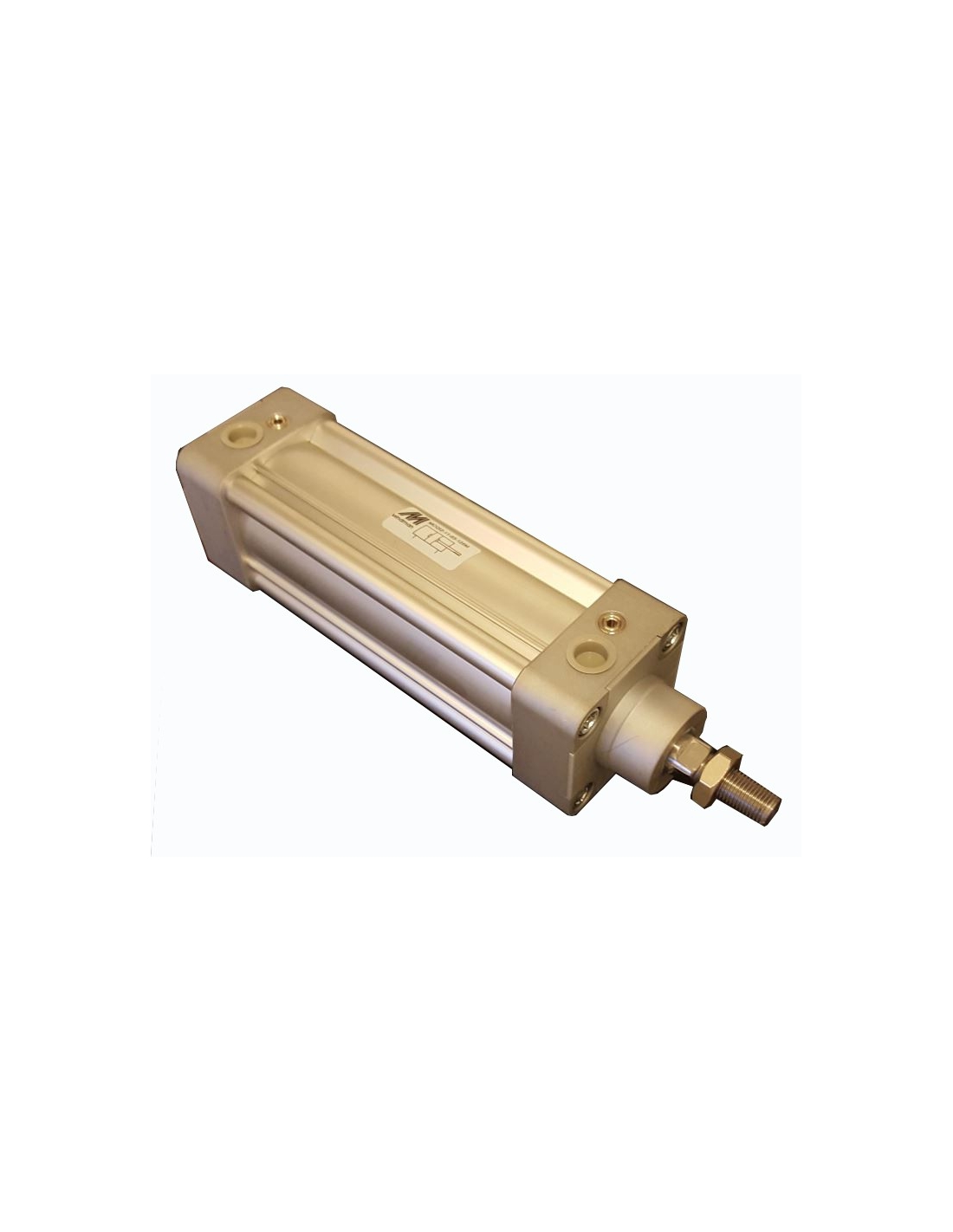

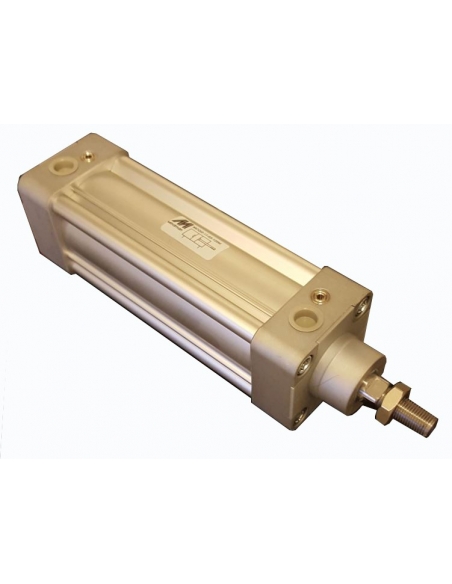

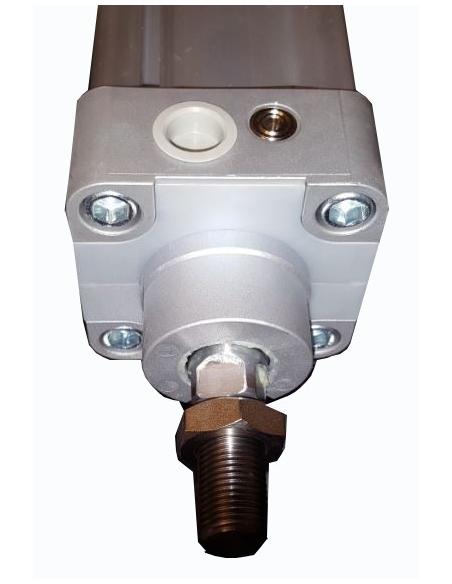

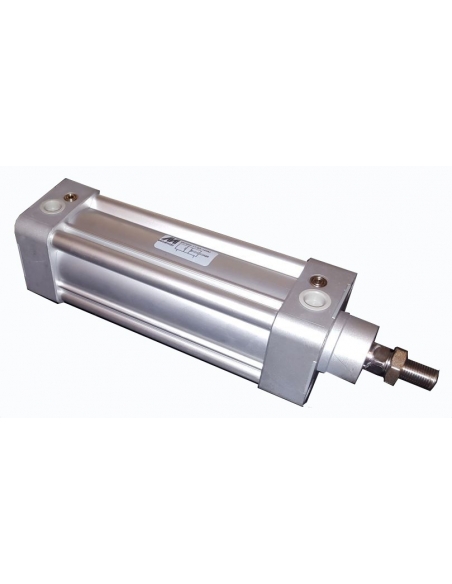

Pneumatic cylinder diameter 80mm stroke 450mm, double effect with pneumatic damping and prepared for magnetic detection. The pneumatic cylinder is manufactured according to ISO 15552 (Ex ISO 6431), with an aluminium jacket. Stem in chromed steel. Wide range of accessories for pneumatic cylinder mounting.

Technical characteristics of the pneumatic cylinder:

• Manufacturer: Mindman.
  Ref. 281MCQI2110800450M
• Diameter & Stroke: 80x450mm.
• Type: Double-effect pneumatic cylinder.
• Damping: pneumatic.
• Fluid type: Air with or without lubrication.
• Manufacturing standard: ISO 6431
• Maximum operating pressure: 10 Bar.
• Type of gaskets: NBR.
• Operating temperature: -10oC to +80oC.
• Type of construction: Chromed steel shank, aluminum shirt.

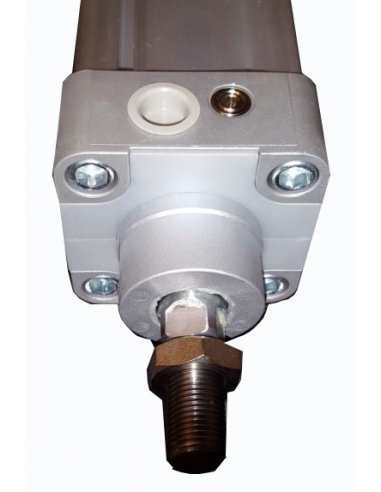

• Air inlet thread size: G 3/8".
• Cylinder stem thread: M20x1.5
• Weight: 6.57 Kg.
• Theoretical maximum force that can develop the cylinder at thrust:

Pressure 5 kg/cm2: 251.3 Kg.

Pressure 6 kg/cm2: 301.6 Kg.

Pressure 7 kg/cm2: 351.9 Kg.

• Theoretical maximum force that can develop the cylinder to traction:

Pressure 5 kg/cm2: 226.8 Kg.

Pressure 6 kg/cm2: 272.1 Kg.

Pressure 7 kg/cm2: 317.5 Kg.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"
