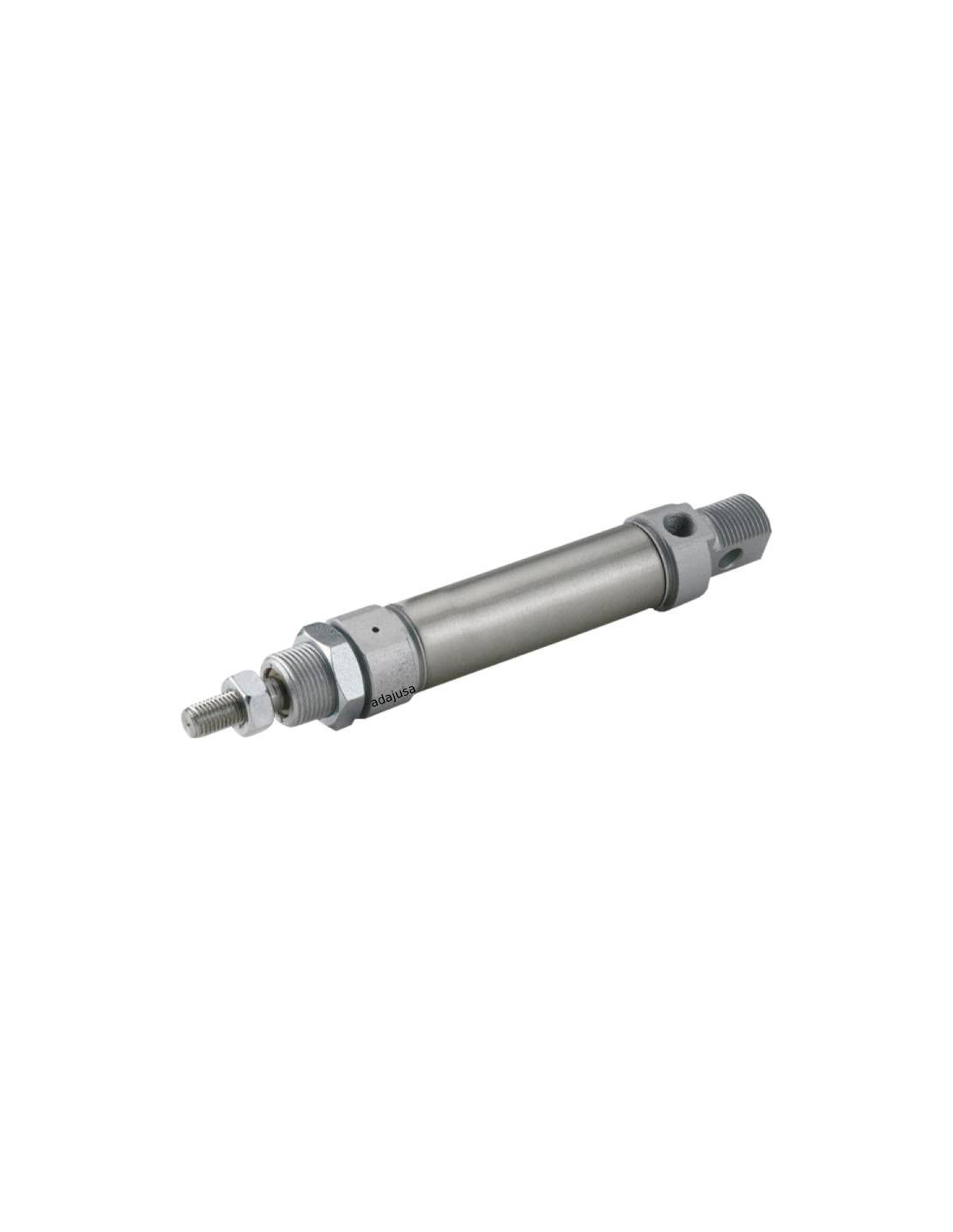

Pneumatic cylinder 10x50 single-acting MB0100050 - Aignep

Pneumatic cylinder 10x50 single-acting MB0100050 - Aignep

€29.33 Tax included

€24.24 tax excl.

Pneumatic cylinder Ø10 stroke 50mm, single acting magnetic. Made in Italy according to ISO 6432 standard, prepared for magnetic detectors, chrome plated steel piston rod. ATEX cylinders as standard.

Reference: MB0100050

Simbolo cilindro simple efecto

Logotipo Aignep
Logotipos normativas Aignep Adajusa
Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated
.

No queries yet, leave the first!


Pneumatic cylinder diameter 10 mm stroke 50mm standard version, single acting and prepared for magnetic detection. The pneumatic cylinder is manufactured according to ISO 6432 standard, chromium-plated steel piston rod. Wide range of accessories for mounting the pneumatic cylinder.

The "M" range of mini pneumatic cylinders manufactured by Aignep is available in a wide variety of versions.

  • Standard "MF" version. Double acting and magnetic detection. Working temperature from 0ºC to +80ºC, NBR seals. Chrome-plated stem
  • MH" version. Double acting with pneumatic damping
  • MB" version. Single magnetic effect
  • MFN" version. Double magnetic effect and 90º flat feeding cover
  • MFX" version. Double magnetic effect and flat feeding cover with axial inlet
  • MD" version. Single magnetic effect with rear spring
  • MJ" version. Double magnetic effect and with through rod
  • ML" version. Double magnetic and damped effect with through rod
All versions can be supplied with piston rod locking (..B) and/or high temperature version with FKM seals (..V)

Technical characteristics of the pneumatic cylinder:

  • Manufacturer: Aignep
  • Manufacturer's reference: MB0100050
  • Bore and stroke: Ø10x50 mm
  • Type: Single-acting pneumatic cylinder
  • Cushioning: no
  • Type of fluid: Air with or without lubrication
  • Manufacturing standard: ISO 6432
  • Maximum operating pressure: 10 bar (1 Mpa)
  • Minimum starting pressure: 1 bar (1 Mpa)
  • Type of seals: NBR
  • Operating temperature: 0ºC to +80ºC (-20ºC if totally dry air)
  • Construction type: Chrome-plated steel stem
  • Air connection thread size: M5
  • Stem diameter: Ø4
  • Piston rod thread: M4
  • ATEX cylinders: - II 2 GD c T6 -20 ° C
  • Theoretical maximum force that the cylinder can develop on thrust
    • Pressure 5 kg/cm²: 3.9
    • Pressure 6 kg/cm²: 4.7
    • Pressure 7 kg/cm²: 5.5
  • Theoretical maximum force that the cylinder can develop in traction
    • Pressure 5 kg/cm²: 3.3
    • Pressure 6 kg/cm²: 4.0
    • Pressure 7 kg/cm²: 4.6

Dimensiones cilindros ISO 6432 doble efecto Aignep Adajusa


Material for professional use, to be installed in compliance with the regulations in force at the place of installation.
The cylinder is prepared for mounting magnetic detectors and different accessories. The supply only includes the cylinder, the rest of the accessories must be ordered separately.
For more information you can download the data sheet by clicking on the tab "Attachments "
