Extension diameters 4mm to 6mm Series 55000 - Aignep

Name: Extension diameters 4mm to 6mm Series 55000 - Aignep
Brand: Aignep
SKU: 5570546
Price: 1.2463 EUR
Availability: InStock

€1.25 Tax included

€1.03 tax excl.

Extension fitting for tubes from 4mm to 6mm diameter, technopolymer body. Very efficientconnection simple that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention.

Series: 55000
Reference: 55705 4 6

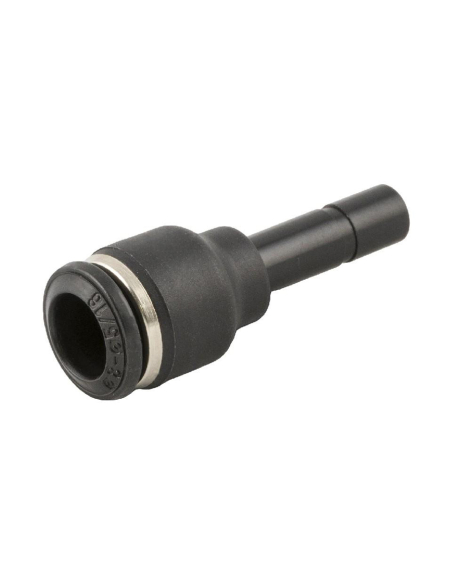

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Extension fitting for tubes with diameters 4mm to 6mm, made of technopolymer. Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention ; The clamping spring clamps the tube without engraving or deforming it, thus allowing greater simplicity in the operation of connecting or disconnecting the tube fitting.

This fitting is suitable for robotics, automotive, textile industry, packaging, handling, compressed air circuits, industrial water and vacuum

Technical characteristics:

Manufacturer: Aignep .
Reference: 55705 4 6
Minor tube diameter: 4mm
Largest tube diameter: 6mm
Fluid: vacuum, compressed air and water
Material: Technopolymer
Tube extractor ring: acetal resin
retention gasket: NBR
Clamping spring: stainless steel
Pressure: -0.99 bar at 20 bar
Working temperature: -20ºC to +80ºC
Thread regulations:
- Conical gas conforming to ISO 7.1, BS 21, DIN 2999
- Cylindrical gas conforming to ISO 228 Class A
- ISO R/262 compliant metric

55705Esq
55705Tab

Material for professional use, install in compliance with the regulations in force at the installation site.
