Plug terminal 14mm Series 55000 - Aignep

Name: Plug terminal 14mm Series 55000 - Aignep
Brand: Aignep
SKU: 5562014
Price: 2.0812 EUR
Availability: InStock

€2.08 Tax included

€1.72 tax excl.

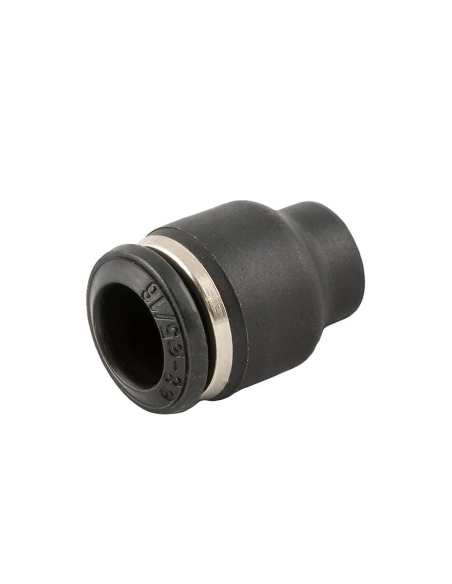

Plug 26,5mm long terminal for 14mm diameter tube in technopolymer, it is used to plug fittings or pneumatic elements avoiding air leakage, it is easy to assemble, just insert it in the outlet provided for the pneumatic tube to be plugged. Valid for quick connection systems.

Series: 55000
Reference: 55620 14

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Technical characteristics:

Manufacturer: Aignep.
Part number: 55620 14
Tube diameter: 14mm
Length: 26,5mm
Fluid: vacuum, compressed air and water
Material: Technopolymer
Tube extractor ring: acetal resin
Seal of retention: NBR
Clamping spring: stainless steel
Pressure: -0,99 bar to 20 bar
Working temperature: -20ºC to +80ºC

55620Esq
55620Tab

Material for professional use, install in compliance with the regulations in force at the place of installation.
