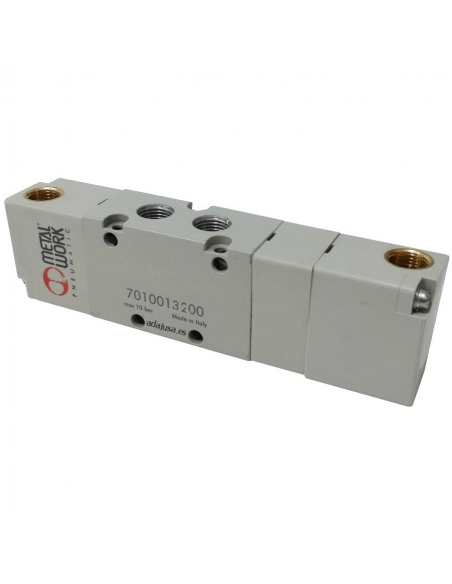

Double pneumatic valve 1/4 3 ways monostable open NO - Metal Work

Double pneumatic valve 1/4 3 ways monostable, for general and industrial applications. The valve is normally open (NO), that is, with piltotaje pressure, the inlet is communicated with the outlet, that is, there is air pressure at the outlet. When pressure is received from the piloting inlet, the air circulation between the inlet and the outlet is closed.

• Double pneumatic valve 1/4 3 ways monostable normally open (NO).
• Manufacturer: Metal Work.
• Reference: PNV 38 PNS NO Code: 7020013200
• Operating pressure bar: Empty ÷ 10
• Minimum monostable drive pressure bar: 2.5
• Operating temperature °C: -10 ÷ +60
• Nominal diameter mm: 7.55
• Conductance C Nl/min · bar: 264.26
• Critical ratio b bar/bar: 0.27
• Flow rate at 6 bar ΔP 0.5 bar Nl/min: 750
• Flow rate at 6 bar ΔP 1 bar Nl/min: 1100
• Monostable TRA/TRR at 6 bar ms: 7/15
• Bistable TRA/TRR at 6 bar ms: 7/7

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
