Valve 1/4 5-way closed centers S. 260 - Mindman

Name: Valve 1/4 5-way closed centers S. 260 - Mindman
Brand: Mindman
SKU: MVAA2604A2C
Price: 49.4164 EUR
Availability: InStock

€49.42 Tax included

€40.84 tax excl.

Pneumatic valve 1/4 5-way monostable closed centers series 260

Reference: MVAA2604A2C

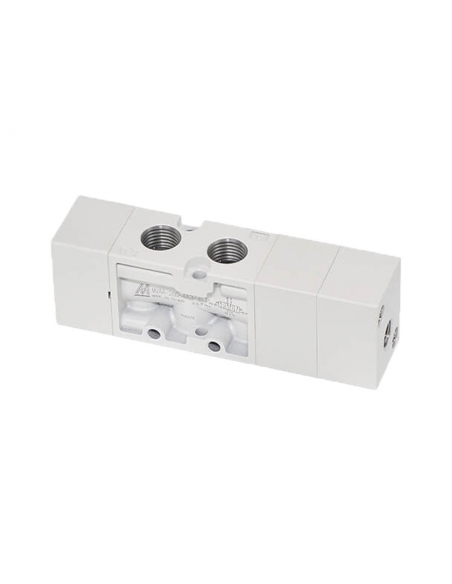

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Pneumatic valve of 1/4 5 ways monostable, for general and industrial applications.

Specifications:

Manufacturer: Mindman.
Manufacturer reference: MVAA-260-4A2C
Valve type: 1/4-5/3 monostable closed centers.
Thread type: G 1/4".
Number of tracks: 5.
Positions: 3
Fluid type: Pressurized air, with or without lubrication.
Working pressure: 0÷8 Kgr/cm².
Test pressure: 1 Mpa.
Effective pitch diameter: 18 mm2.
Pilot pressure range: (0.3×P*+0.1)~0.8 MPa
Working temperature: -5 to 60ºC.
Material: Aluminum and steel.
Weight: 219 g.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

260 Series Valves

Download (663.91KB)
