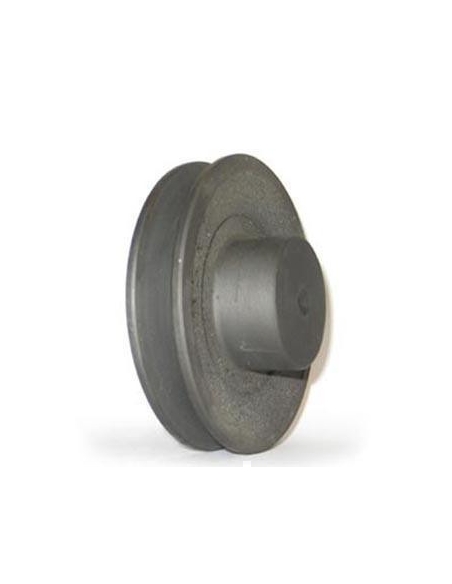

Pulley blind V-belt SPZ 118x1 slot

€37.36 Tax included

€30.88 tax excl.

Pulley for trapeze belts Ø118mm, 1 slot. No machining for shaft (blind, only with guide hole). Made of cast steel and valid for all straps with profile in "V" type Z and SPZ. Manufactured according to ISO4183 - DIN2211.

  • Type of straps: Profile in "V" type Z and SPZ.
  • diameter. 118mm.
  • number of straps slots: 1.
  • REF POLE-SPZ-118X1 BLIND
  • Supplier: TECHNOX

Imagen representativa para fines ilustrativos, el artículo suministrado corresponderá a las especificaciones indicadas.

No queries yet, leave the first!
Privacy
Shipments
Returns


Pulley for trapezoidal belts profile in "V", for mechanical transmission. Made of cast iron and steel, and according to DIN2211 - ISO4183.

Trapezoid pulley without machining (blind) for shaft, only supplied with a guide drill

Specifications:

  • Reference: POLE-SPZ-118X1 CIEGA
  • Provider: TECHNOX
  • Type: trapezoid profile in "V".
  • Models: Z and SPZ.
  • Material: cast steel.
  • Primitive diameter: 118mm.
  • Number of slots: 1.
  • Manufacturing standard: DIN2211 - ISO4183.

    Note: Although they are called blind, they all have a central drill made. Consult the measurement diagram.


    Dimensions:

    • Height (Od): 122
    • Primitive diameter (Dp): 118
    • Slots: 1
    • Cone height (N): 50
    • Width (L): 28
    • Slot width (B): 16
    • Shaft diameter (d): 10

    Material for professional use, install in compliance with the regulations in force at the place of installation.
