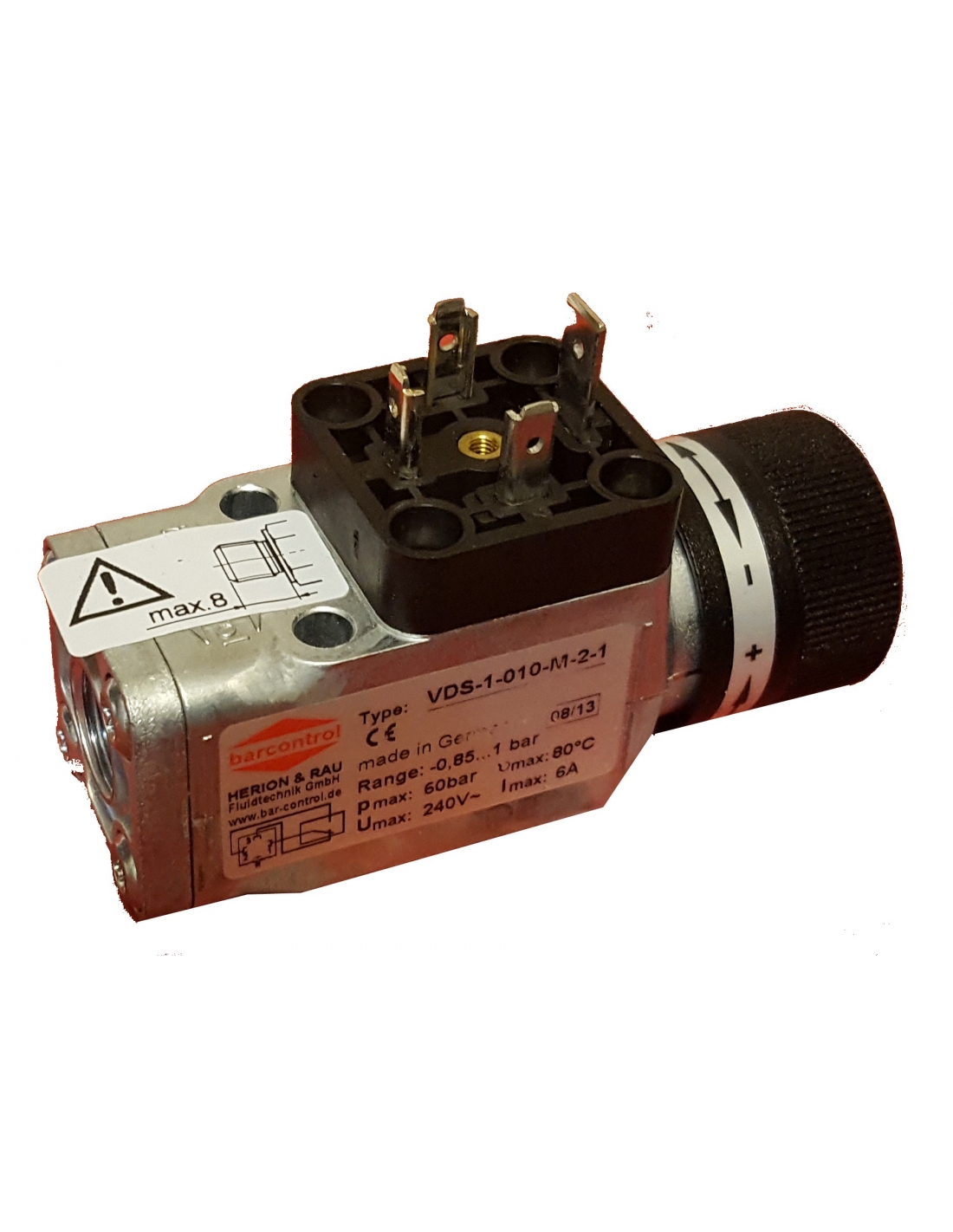

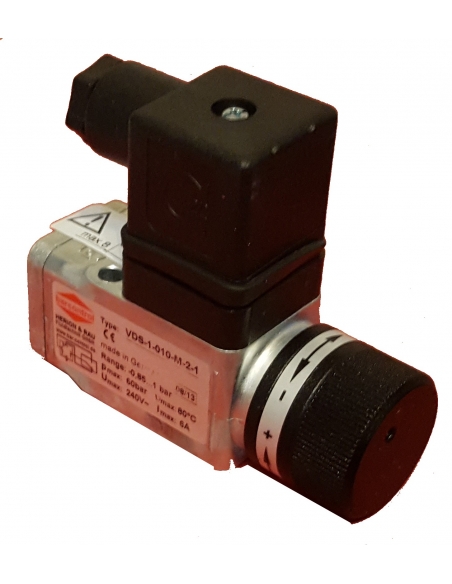

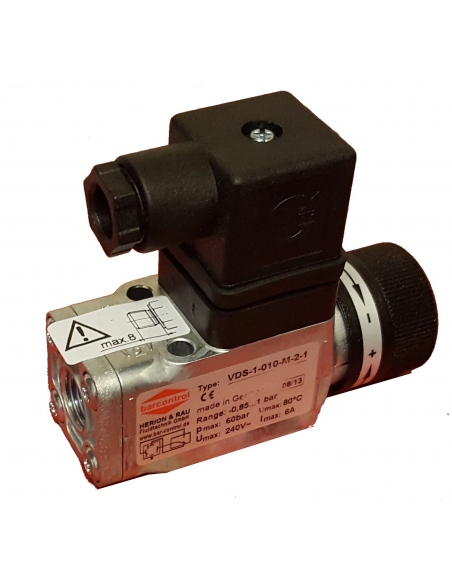

Pressure switch 1/4 female thread, adjustable from 0.5 to 8 bars, with a switched contact and DIN 43650 connector (Size 30), valid for pneumatic applications, neutral gases and non-corrosive liquid fluids.
The main application is the transformation of the pneumatic (hydraulic) pressure signal into an electrical signal. The contact will change state upon reaching the adjusted pressure and will remain in this state as long as the inlet pressure remains above the adjustment value. If the pressure drops below the adjustment value the contact will return to the resting position.
The electrical connection is made by connector type DIN 43650 (size 50) that provides a degree of protection IP65.
specifications:
- Manufacturer: Barcontrol
- Reference: 2027PDS1008M21
- Fluid: Neutral gases and fluid liquids.
- Mounting: 2 drills Ø5,2mm.
- Connection: 1/4" female thread.
- Working pressure range: 0,5...8 bar.
- Maximum pressure: 60 bar.
- Repeatability: ±2%.
- Number of operations per minute: 200.
- Working temperature range: -10ºC to 80ºC.
- Vibration resistance: 10g (10...2000Hz).
- Shock resistance: 30g.
- Electrical connection: According to DIN 43650.
- Switching element: Pressure spring switch with self-cleaning contact.
- Voltage and operating category:
- AC12: VDE0660 (EN60947): 4A to 250Vac.
- AC14: VDE0660 (EN60947): 1A to 250Vac.
- DC12: VDE0660 (EN60947): 3A to 28Vdc.
- DC14: VDE0660 (EN60947): 1A to 28Vdc.
- EC certification: EU-Standard 73/23/EWG.
- Degree of protection: IP65.
- Material: zinc and aluminum alloy cast iron case , plastic control and NBR gaskets.
- Weight: 0.295 kg.
Other models: consult.
Material for professional use, install respecting the regulations in force at the place of installation.
