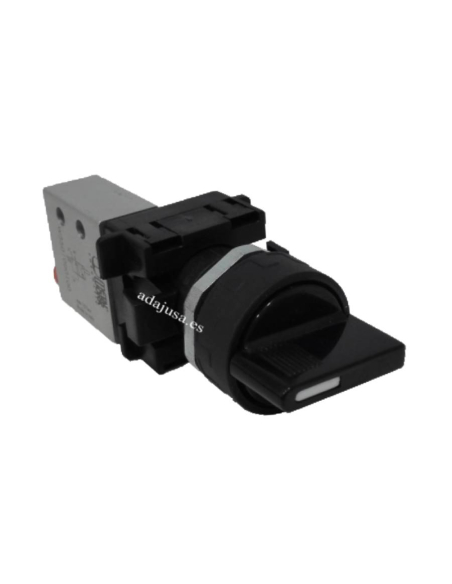

Pneumatic selector valve: 3/2 NC rear - Metal Work

€43.02 Tax included

35.26 tax excl.

PK-SELEC32NCT

Full neumatic selector, black color. with normally closed valve (NC) and integrated fittings for tube diameter 4, rear outlet.

Logotipo Metal Work
Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Full black pneumatic selector, 22.5mm drill diameter, normally closed valve (NC) with built-in fittings for tube 4mm. The fittings are located at the back of the valve.

limit switch metal emboloding pneumatic frame, with integrated quick-connect fittings for 4mm outer tube. The state of the valve at rest is normally closed, i.e. without pressing there is no presence of air in the exit, the air cannot pass, when it is operated, it lets air pass through and there is pneumatic pressure at the outlet.


Supply includes:

    • 2-position selector
    • adapter
    • nut

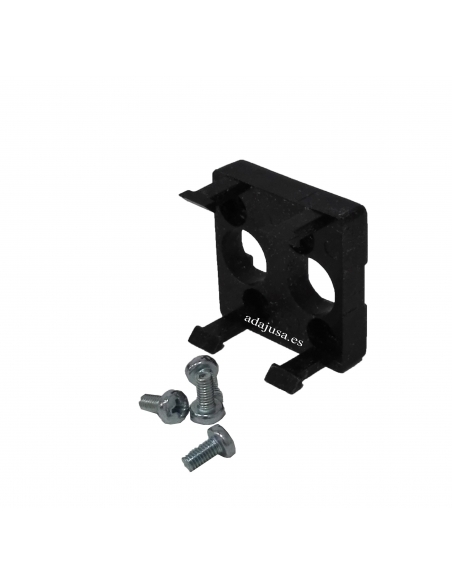

    • Valve adapter
    • 4 screws

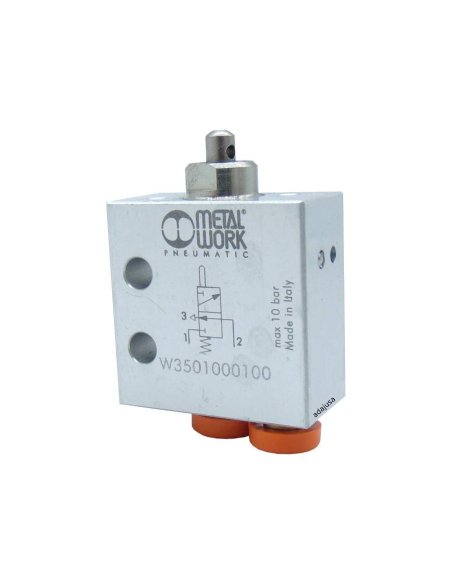

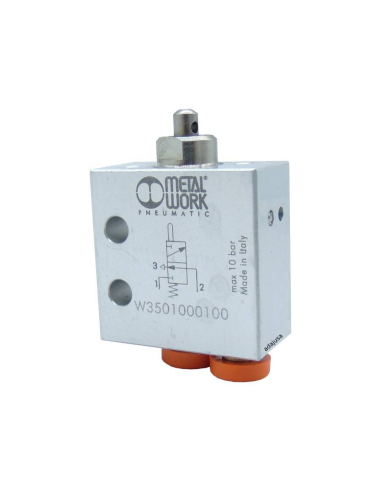

    • Front limit switch NC piston valve.

Valve features:

  • Valve type: 3/2 Normally closed (NC).
  • Type of drive of the limit switch: Metal front piston.
  • Manufacturer's Reference: W3501000100 - VME-01 NC D.4
  • Material type: metallic.
  • Fittings: fast for tube 4mm located at the rear
  • Installation: in any position.
notes:
• To obtain the pneumatic function 5/2 assemble a 3/2 NC strut valve and a 3/2 NO on the adapter.
• To obtain the pneumatic function 5/3 open centers, assemble two 3/2 NC strut valves on the adapter.
• To obtain the pneumatic function 5/3 pressure centers, assemble two 3/2 NO strut valves on the adapter.

With the valve adapter you can place up to two valves at once. The supply only includes one type of valve. If you want you can buy another valve separately to add it to the pushbutton.

dimensiones final de carrera neumatico piston Nc racores traseros de 4


Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

16 other products in the same category:

Monostable pneumatic pedal with protection - Metal Work Monostable pneumatic pedal with protection - Metal Work 2
Pushbuttons and pneumatic actuators

Pneumatic pedal 1/4 5/2 monostable with protection - Metal work

Metal Work
W3120000001
€83.79 (€68.68 tax excl.)
Pneumatic pedal with 1/4" 5- way thread with protection cover in high-resistance plastic material, monostable operation, the pneumatic valve is activated while the pedal remains pressed, returning to the rest position when it is stopped. Reference: W3120000001 Representative image for illustrative purposes, the item supplied will correspond to the...
Double adapter for push button or selector valve - Aignep: ADAJUSA : price
Pushbuttons and pneumatic actuators

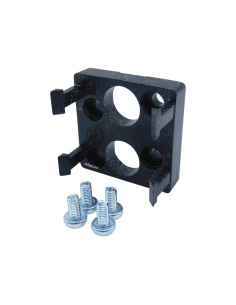

Double adapter for push button valve or selector valve - Aignep

Aignep
04V0600002
€2.15 (€1.76 tax excl.)
Adapter to fit the following valves: 01VVV03NC02, 01VVV050002, 02VG03NCB5 and 02VG03NOB5 and on the pushbuttons - selector switches: 04V0100001, 04V0200N01, 04V0200R01, 04V0200R02, 04V030001, 04V030002, 04V030003, 04V0400N01, 04V0400N02, 04V0400N03, 04V0400N04, 04V0500N01, 04V0500N02, 04V0500N03 and 04V0500N04 Series: 04VOrdering number: 04V0600002...
Pneumatic foot pedal with protection cover 1/4 way 5 bistable Aignep 06V0000003 - PC 1/4 B : ADA
Pushbuttons and pneumatic actuators

Pneumatic foot pedal 1/4 5/2 bistable with protection - Aignep

Aignep
06V0000003
€68.93 (€56.50 tax excl.)
Pneumatic pedal with thread 1/4" of 5 way with mechanical locking for the actuation and with protection cover, in high resistance plastic material, of operation bistable (with interlocking), the pneumatic valve is actuated at the first press and will remain activated even if the foot is removed, it will remain activated until a new actuation with the...

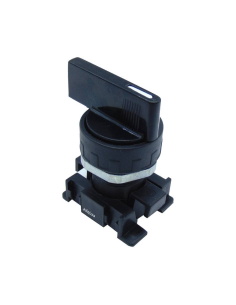

Black selector long cam 2 positions and Valve: 3/2 NC side fittings Ø 4 mm - Aignep - ADAJUSA Black selector long cam 2 positions and Valve: 3/2 NC side fittings Ø 4 mm - Aignep - ADAJUSA 2
  • Pack
Pushbuttons and pneumatic actuators

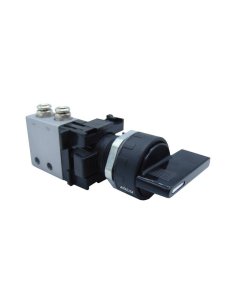

Black selector long cam 2 positions and Valve: 3/2 NC side fittings Ø 4 mm- Aignep
