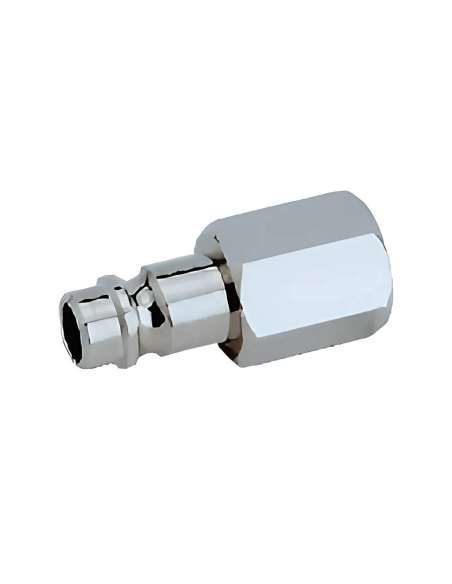

Progressive discharge adapter for quick plug 1/4 European profile - Aignep

Name: Progressive discharge adapter for quick plug 1/4 European profile - Aignep
Brand: Aignep
SKU: 26814
Price: 3.4648 EUR
Availability: PreOrder

€3.46 Tax included

€2.84 tax excl.

1/4" progressive discharge adapter for quick coupling , European profile. Adapter valid for quick couplings with European profile and universal profile (Multipresa Series), as well as for quick safety couplings with European profile. This type of adapter for quick progressive discharge coupling is used in pneumatic systems to control the speed of loading and unloading compressed air. This is especially useful in machinery that requires precise control of the compressed air flow.

Series: 260
Reference: 268 1/4

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

1/4" progressive discharge adapter for quick coupling, European profile. The use of quick couplings together with this type of adapter allows for a simple and fast connection and disconnection of tools, machinery and pneumatic elements in the installed distribution network, avoiding air losses between the coupling and the tool. Made of nickel-plated brass.

This type of progressive discharge quick coupling adapter is used in pneumatic systems to control the charging and discharging speed of compressed air. This is especially useful in machinery that requires precise control of the compressed air flow.

268drawing2

Adapter valid for European profile quick plugs of the 160 series and universal quick plugs of the universal series (Multipresa Series), as well as for European profile safety quick plugs of the 660 series of the Aignep brand.

Main technical characteristics:

Manufacturer: Aignep
Reference: 268 1/4
1/4 thread
Profile: European
Compatible fluid: Compressed air
Working pressure: 0 to 16 bar
Maximum static pressure (without pulsations): 35 bar
Working temperature range: -20ºC to +80ºC
Flow diameter (DN): 7.5mm - 7.8mm
Flow rate at 6 bar ΔP 1 bar : 2550 Nl/min
Flow rate at 6 bar ΔP 0.5 bar : 1850 Nl/min
Flow rate at 6 bar ΔP 0 bar : 2900 Nl/min (free exhaust)

Dimensions:

Professional use material, install in compliance with the regulations in force at the installation site.
