Roller chain pinions 1/2 x 5/16 08B-1 Z32 DIN8187 - ISO R606

€32.91 Tax included

€27.20 tax excl.

Single pinion for single roller chain model 08B-1 according to European standard DIN8187 - ISO/R606

Reference: PINHON Z32 1/28

Teeth: 32

ISO: 08B-1

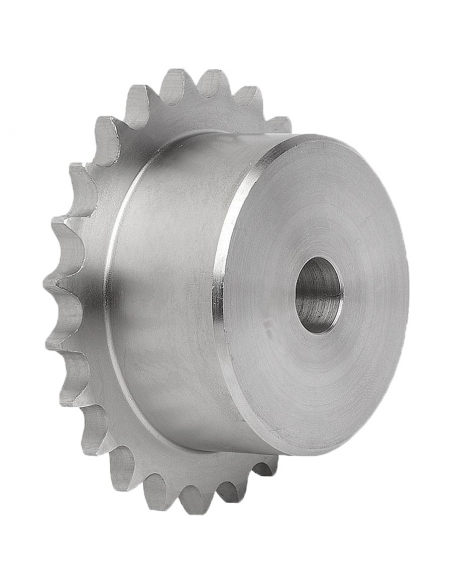

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Simple sprockets for single roller chains 08B-1 according to European standard DIN ISO 606

Manufacturer: Technox

Reference: PINHON Z32 1/28


Characteristics:

  • 1/2" x 5/16" mm ISO 08B-1
  • 12.7 x 7.75 mm
  • Teeth: 32
  • Roller diameter: 8.51 mm
  • Tooth radius (r): 13 mm
  • Curved area width (C): 1.3 mm
  • Tooth width (h1): 7.2 mm
  • Outer Diameter (S): 134.3
  • Primitive diameter (Dp): 129.56
  • Center diameter (d): 90
  • Hub diameter (D): 16 (Non-mechanical shaft diameter)
  • Width (H): 30


Material for professional use, install in compliance with the regulations in force at the place of installation.
