Roller chain sprockets 1 1/4 x 3/4 20B-1 Z23 DIN8187 - ISO R606

€171.09 Tax included

€141.40 tax excl.

Single pinion for single roller chain model 20B-1 according to European standard DIN8187 - ISO/R606

Reference: PINHON Z23 1 1/4

Teeth: 23

ISO: 20B-1

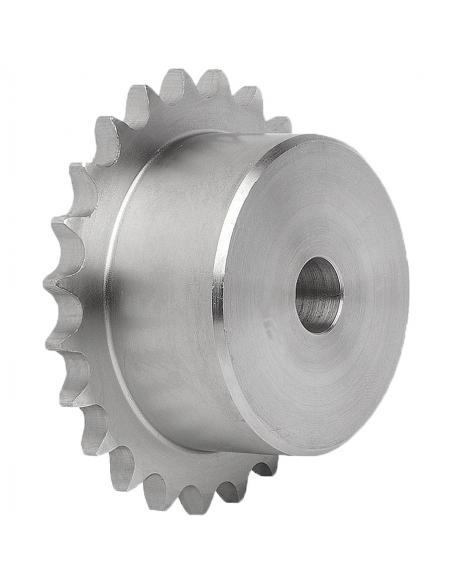

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Simple sprockets for single roller chains 20B-1 according to European standard DIN ISO 606

Manufacturer: Technox

Reference: PINHON Z23 1 1/4


Characteristics:

  • 1" 1/4 x 3/4 mm ISO 20B-1
  • 31.75 x 19.56 mm
  • Teeth: 23
  • Roller diameter: 31.75 mm
  • Inner width: 19.56 mm
  • Roller diameter: 19.05 mm
  • Tooth radius (r): 32 mm
  • Curved area width (C): 3.5 mm
  • Tooth width (h1): 18.5 mm
  • Outer Diameter (S): 258.4
  • Primitive diameter (Dp): 243.23
  • Center diameter (d): 140
  • Hub diameter (D): 25 (Non-mechanical shaft diameter)
  • Width (H): 55


Material for professional use, install in compliance with the regulations in force at the place of installation.
