Double pinions for roller chain 5/8 x 3/8 10B-2 Z28 DIN8187 - ISO R606

€76.46 Tax included

€62.67 tax excl.

Double pinion for double roller chain model 10B-2 according to European standard DIN8187 - ISO/R606

Reference: PINHON Z28 5/8 DOUBLE

Teeth: 28

ISO: 10B-2

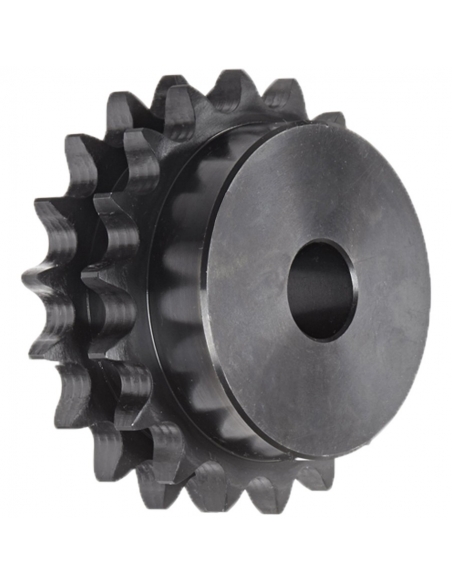

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Double sprockets for double roller chains 10B-2 according to European standard DIN ISO 606

Manufacturer: Technox

Reference: PINHON Z28 5/8 DOUBLE



Characteristics:

  • 5/8" x 3/8" mm ISO 10B-2
  • 15.875 x 9.65 mm
  • Teeth: 28
  • Tooth radius (r): 16 mm
  • Curved area width (C): 1.6 mm
  • Tooth width (h2): 25.5 mm
  • Outer Diameter (S): 148.7
  • Primitive diameter (Dp): 141.78
  • Diameter (d): 115
  • Hub diameter (D): 20 (Non-mechanical shaft diameter)
  • Disk width (H): 45


Material for professional use, install in compliance with the regulations in force at the place of installation.
