Double sprockets for roller chain 3/4 x 7/16 12B-2 Z20 DIN8187 - ISO R606

€66.59 Tax included

€55.03 tax excl.

Double sprocket for double roller chain model 12B-2 according to European standard DIN8187 - ISO/R606

Reference: PINHON 20 3/4 DOUBLE

Teeth: 20

ISO: 12B-2

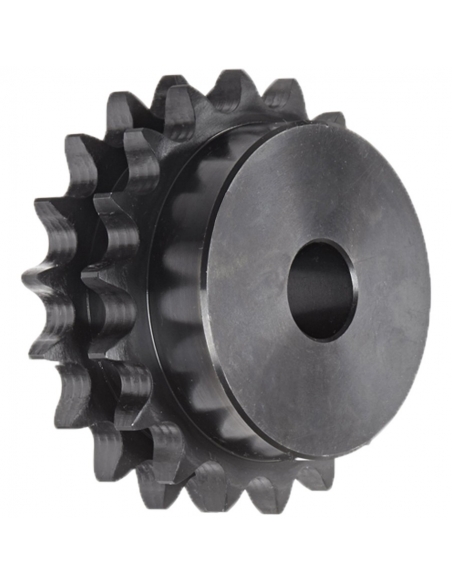

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


Double sprockets for double roller chains 12B-2 according to European standard DIN ISO 606

Manufacturer: Technox

Reference: PINHON Z20 3/4 DOUBLE



Characteristics:

  • 3/4" x 7/16”mm ISO 12B-2
  • 19.05 x 11.68mm
  • Teeth: 20
  • Tooth radius (r): 19 mm
  • Curved area width (C): 2 mm
  • Tooth width (h 2 ): 30.3 mm
  • Outer Diameter (OD): 129.7
  • Primitive diameter (Dp): 121.78
  • Diameter (d): 100
  • Hub diameter (D): 20 ( non-mechanical shaft diameter)
  • Disc width (H): 50


Material for professional use, install in compliance with the regulations in force at the place of installation.
