Double sprockets for roller chain 1 x 17.02 16B-2 Z10 DIN8187 - ISO R606
Double sprockets for roller chain 1 x 17.02 16B-2 Z10 DIN8187 - ISO R606

Double sprockets for roller chain 1 x 17.02 16B-2 Z10 DIN8187 - ISO R606

€44.98 Tax included

€37.17 tax excl.

Double sprocket for double roller chain model 16B-2 according to European standard DIN8187 - ISO/R606

Reference: PINHON Z10 1 DOUBLE

Teeth: 10

ISO: 16B-2

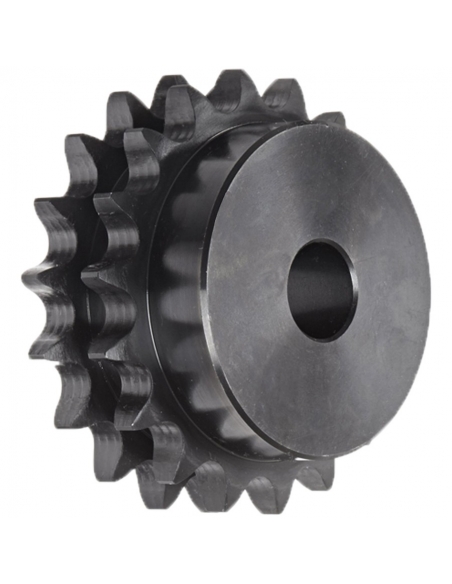

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


Double sprockets for double roller chains 16B-2 according to European standard DIN ISO 606

Manufacturer: Technox

Reference: PINHON Z10 1 DOUBLE



Characteristic:

  • 1" x 17.02mm ISO 16B-2
  • 25.4 x 17.02mm
  • Teeth: 10
  • Tooth radius (r): 26 mm
  • Curved area width (C): 2.5 mm
  • Tooth width (h 2 ): 47.7 mm
  • Outside Diameter (OD): 93.0
  • Primitive diameter (Dp): 82.19
  • Diameter (d): 56
  • Hub diameter (D): 16 ( Unmachined shaft diameter)
  • Disc width (H): 65


Material for professional use, install in compliance with the regulations in force at the place of installation.
