Double sprockets for roller chain 1 1/2 x 1 24B-2 Z19 DIN8187 - ISO R606
Double sprockets for roller chain 1 1/2 x 1 24B-2 Z19 DIN8187 - ISO R606

Double sprockets for roller chain 1 1/2 x 1 24B-2 Z19 DIN8187 - ISO R606

€469.32 Tax included

€387.87 tax excl.

Double sprocket for double roller chain model 24B-2 according to European standard DIN8187 - ISO/R606

Reference: PINHON Z19 1. 1/2 DOUBLE

Teeth: 19

ISO: 24B-2

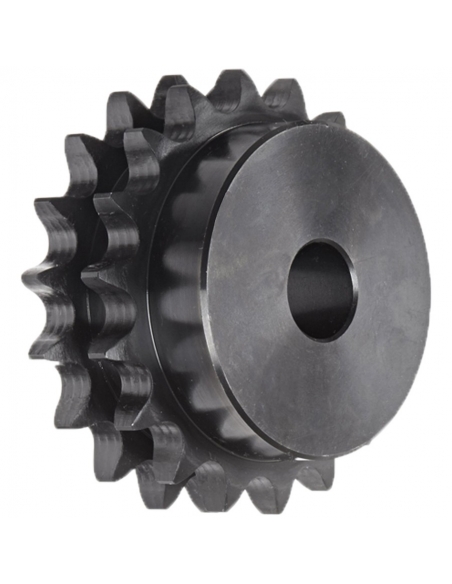

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

Product customization

Don't forget to save your customization to be able to add to cart
  • optional 250 char. max

No queries yet, leave the first!
Privacy
Shipments
Returns


Double sprockets for double roller chains 24B-2 according to European standard DIN ISO 606

Manufacturer: Technox

Reference: PINHON Z19 1. 1/2 DOUBLE

Characteristics:

  • 1" 1/2 x 1mm ISO 24B-2
  • 38.1 x 25.4mm
  • Teeth: 19
  • Tooth radius (r): 38 mm
  • Curved area width (C): 4 mm
  • Tooth width (h 2 ): 72 mm
  • Outside Diameter (OD): 246.5
  • Primitive diameter (Dp): 231.49
  • Diameter (d): 160
  • Hub diameter (D): 25 ( Unmachined shaft diameter)
  • Disc width (H): 100



Material for professional use, install in compliance with the regulations in force at the place of installation.
