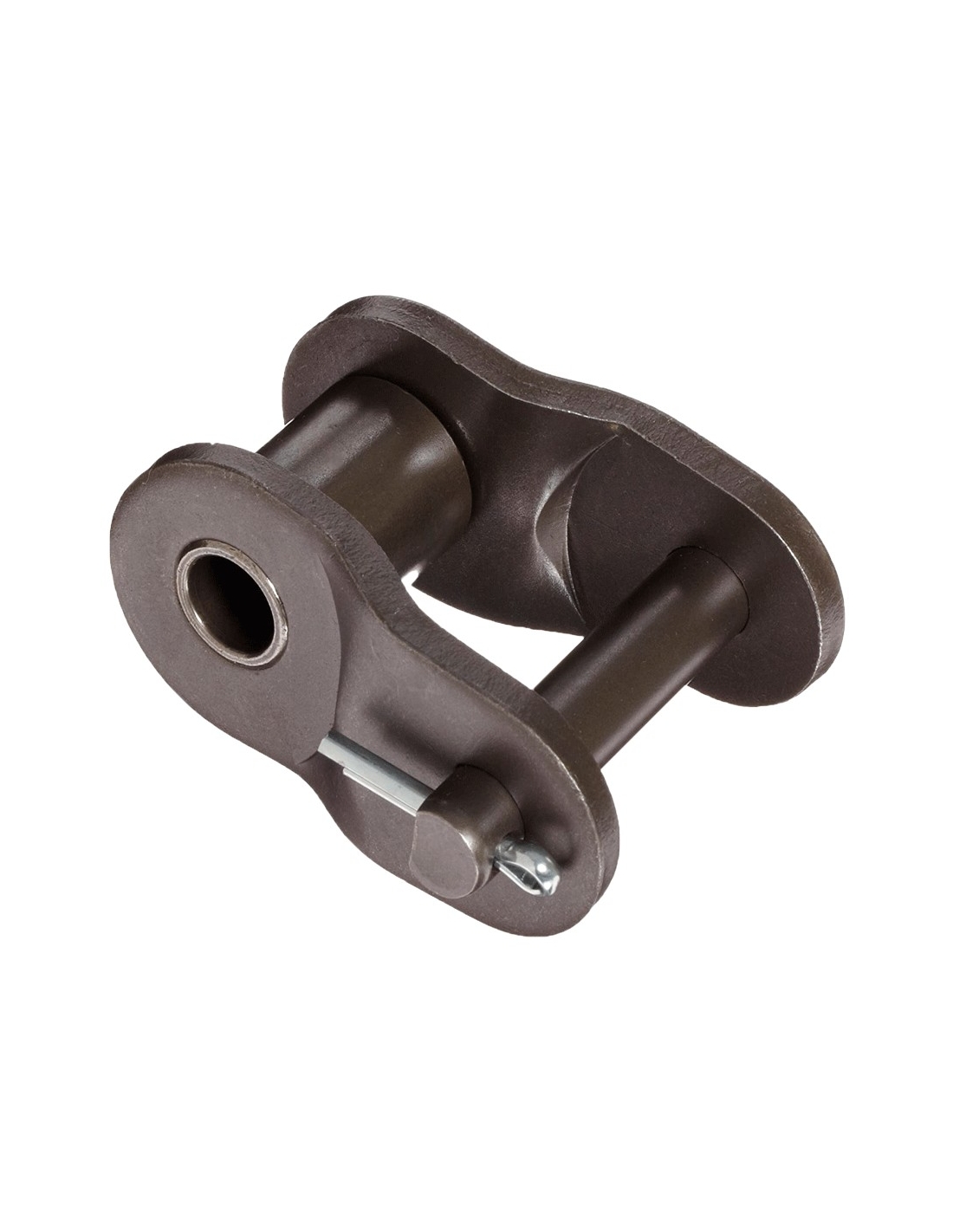

Single roller chain 12B-1 ISO bounding rollers

€1.62 Tax included

€1.33 tax excl.

Roller chain bending links for simple chain type 12B-1 according to ISO standard

Reference: 57470030


Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Bounded links for roller chain connection for single chain type 12B-1 according to ISO standard

Manufacturer: ISB
Reference: 57470030

A bounded link is used when an odd number of chain links is required. It is the combination of an inner link and an outer link.

The bolt and two meshes are adjusted by sliding. Fatigue resistance is 35% lower than that of the chain itself.

The use of a bounded joint does not require the use of a straight joint.


Material for professional use, install respecting the regulations in force at the place of installation.
