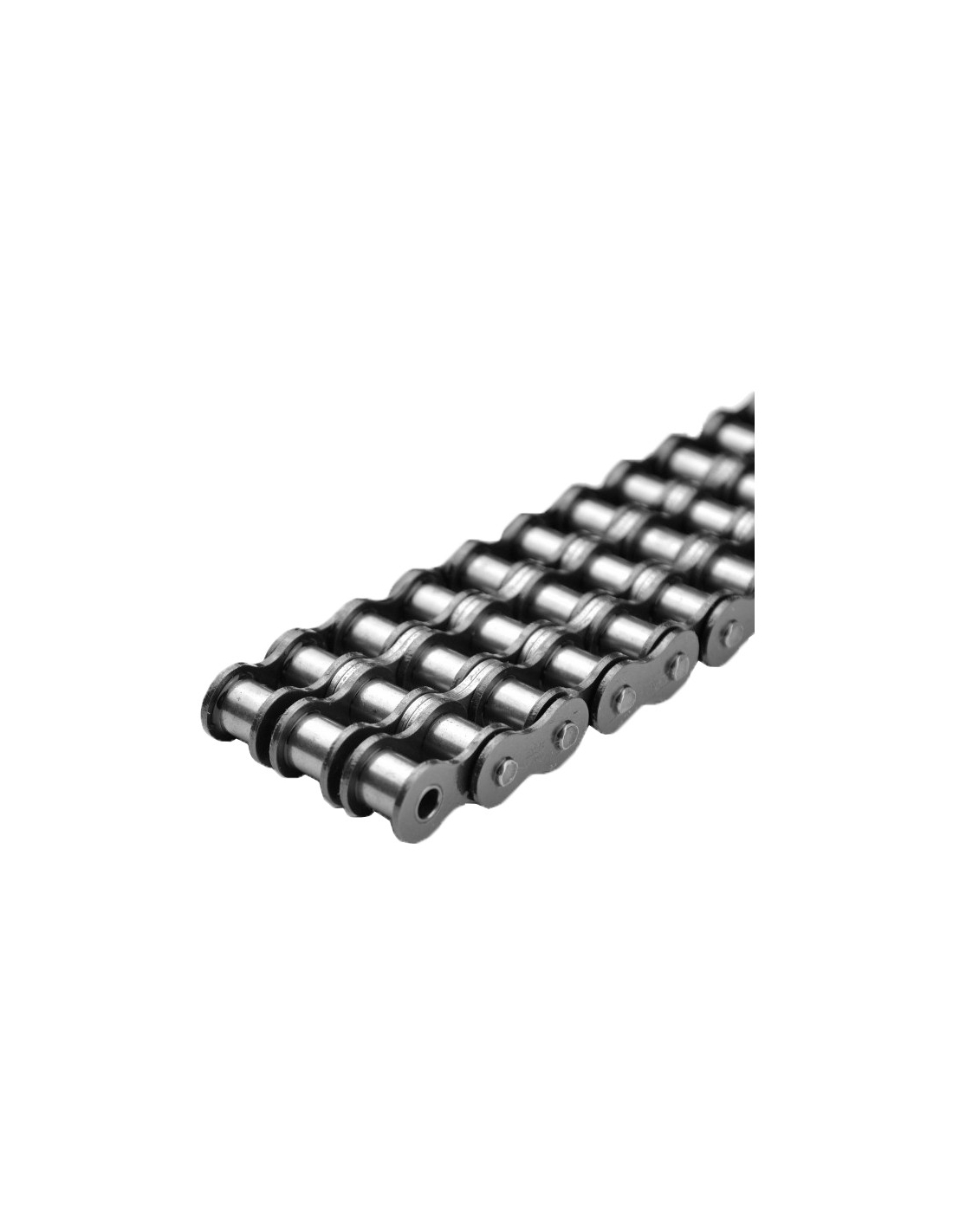

Triple pitch roller chain 9.525 3/8 06B-3 DIN 8187

€23.72 Tax included

€19.44 tax excl.

Standard triple roller chain according to European standard ISO DIN 8187, up to 98% efficiency (*), very light and compact which allows installation in very limited spaces.

Part number: 57250175

Pitch: 9.525 mm - 3/8"

Roller diameter: 6.35 mm

Price per meter. Sold exclusively in packs of 5 meters.

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated

No queries yet, leave the first!
Privacy
Shipments
Returns


Roller chain conforms to the requirements of ISO DIN 8187.

A roller chain is a series of bearings connected by meshes (plates), great versatility and durability in environments with a lot of dust, oil, water, grease, etc... Roller chains develop a synchronous power transmission, without slippage, and the effectiveness of the transmission does not depend on the transmitted tension.

They can be used in a wide range of industrial and general applications, motors, compressors, printing presses, conveyors, agriculture ....

Features:
  • Manufacturer ISB
  • Part number: 57250175
  • Sold in packs of 5 meters of chain.
  • Pitch (P): 9.525 - 3/8"
  • Roller diameter (d1): 6.35 mm (max)
  • Inner width (b1): 5.72 mm (min)
  • Shaft diameter (d2): 3.28 mm (max)
  • Joint length
    • (L): 33.50 mm (max)
    • (Lc): 37.30 mm (max)
  • Mesh height (h2): 8.26 mm
  • Mesh thickness (t/T): 1.34 mm
  • Width between axes: 10.24 mm
  • Minimum breaking load (Q ISO/DIN) 24.90 kN
  • Average breaking load (Q0): 29.80 kN
  • Approximate weight: 1.16 kg/m

(*) Under correct lubrication conditions.

Material for professional use, to be installed in compliance with the regulations in force at the place of installation

For further information you can download the technical data sheet by clicking on the "Attachments" tab
