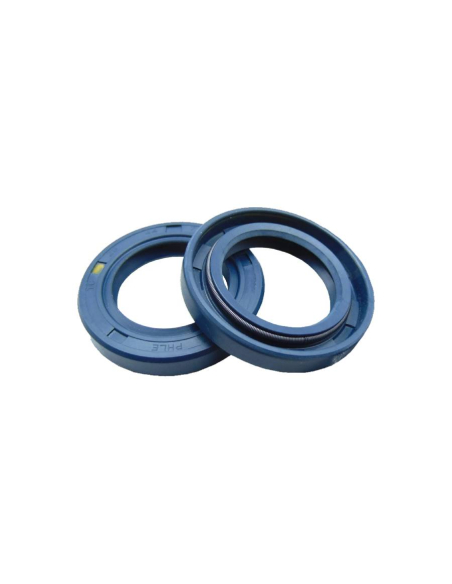

Radial seal 15x27x7 double lip TC NBR Blue
€1.54
Tax included
1.26 tax excl.
15277TCNBR
Radial seal for universal use measuring 15x27x7, NBR material in blue with double lip and sealing gaskets. Metal armor structure covered with elastic rubber in blue. They have high resistance to wear, suitable for use with mineral oils and greases, indicated for inorganic, alkaline and acidic compounds in concentration.
Reference: R-15X27X7 TC-NBR BLUERepresentative image for illustrative purposes, the item supplied will correspond to the indicated specifications.
The seals are technical joints for fluid sealing in rotating shafts, made of blue NBR material (nitrile rubber), with double lip and sealing gaskets; The elastomer membrane has a toroidal spring on the vertical sealing edge to maintain the tightness of the shaft. These seals are universally used due to its high wear resistance and temperature range.
They have an outer elastic rubber cover with an inner metal reinforcement that provides rigidity and straightness to the seal, at the same time that it provides a perfect seal between the outside of the seal and the housing hole, even in rough housings with great expansion.
They have an outer elastic rubber cover with an inner metal reinforcement that provides rigidity and straightness to the seal, at the same time that it provides a perfect seal between the outside of the seal and the housing hole, even in rough housings with great expansion.
Nitrile rubber or NBR is characterized by having good oil resistance, high tensile strength, high water absorption, high resistance to breakage and wear, resistance to temperatures of 125ºC in oil, 100ºC in air and 80ºC in water. .
As a complement to the assembly instructions of the DIN 3760 standard, it is very important to ensure that after assembly, the seal is completely perpendicular to the axis.
Characteristics:
- Manufacturer: Technox
- Reference: R-15X27X7 TC-NBR BLUE
- Shaft diameter (d): 15 mm
- Outer diameter (D): 27mm
- Width (H): 7mm
- Design: TC (double lip)
- Admissible low temperature: -40ºC
- Material: Blue NBR
The following table shows the designation of different manufacturers depending on the lip shape and cover type:
Material for professional use, install in compliance with the regulations in force at the installation site.
For more information you can download the technical sheet by clicking on the "Attachments" tab
Questions
Question
Este tipo de material de goma del reten sirve para cigüeñal
Answer
Estimado cliente,
Gracias por su consulta.
El retén radial 15x27x7 doble labio tipo TC en NBR (nitrilo) color azul está fabricado con un material adecuado para aplicaciones generales en entornos con aceite y grasa, lo que incluye motores, cajas de engranajes y maquinaria industrial.
En cuanto a su uso en cigüeñales, es importante tener en cuenta lo siguiente:
-
El material NBR resiste temperaturas de hasta 100-120 °C y es compatible con aceites minerales, por lo que puede ser adecuado para cigüeñales, siempre que no se superen esas condiciones.
-
Sin embargo, muchos fabricantes de motores optan por retenes de FKM (Viton) para el cigüeñal debido a su mayor resistencia térmica y química, especialmente en motores modernos o de alta exigencia.
Por tanto, si el entorno no supera los 120 °C, no hay exposición a combustibles o productos agresivos, y las condiciones de trabajo son normales, este retén de NBR puede ser válido.
No obstante, le recomendamos verificar las especificaciones del fabricante del motor para confirmar el material y tipo de retén recomendado para el cigüeñal en su caso concreto.
Todos nuestros productos están destinados a uso profesional y requieren instalación por personal cualificado. Verifique antes de realizar el pedido que se adapta a sus necesidades.
Atentamente,
Adajusa
www.adajusa.es.
Juan Manuel
on
07/31/2025 23:39:54
Question about the product
* Required fields
Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)
16 other products in the same category:
Customers who bought this product also bought:
Friction bushings in sintered bronze

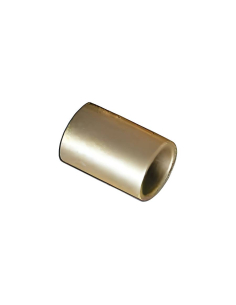

Cap self-lubricating sintered bronze 12x16x20mm Selfoil A-12-16-20
