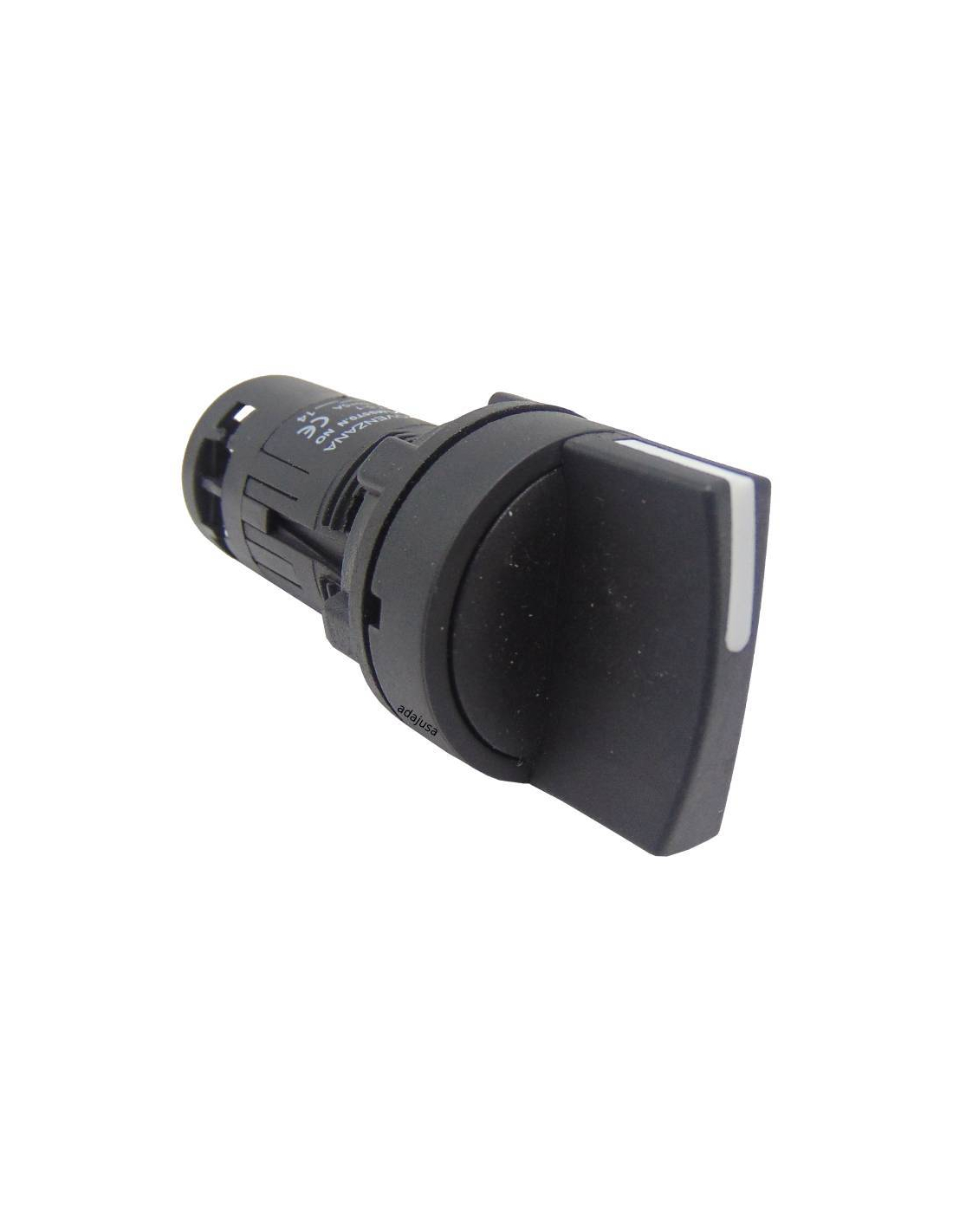

Selector 3 positions monoblock - Giovenzana

€4.43 Tax included

€3.66 tax excl.

Selector monoblock 3 positions maintained (1-0-I). Diameter of the drill for fixing of 22.5mm. Equipped with 3 contacts, two open (NO) and one closed (NC).

Reference: PLMS5T0.N

Seletor 3 posiciones NO_NC_NO (1)

Logotipo Giovenzana para fichas

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Out of stock

No queries yet, leave the first!
Privacy
Shipments
Returns


Selector monoblock 3 positions, of action maintained. Diameter of the drill for fixing of 22.5mm. Equipped with 3 contacts, 2 open (NO) and one closed (NC).

This pushbutton is of monoblock type, equipped with 3 contacts, they can not be replaced or expanded. Connection for electrical cables by screw.

specifications:

  • Manufacturer: Giovenzana
  • Reference: PLMS5T0.N
  • Maximum rated voltage: 250 V
  • Thermal intensity (Ith): 10A
  • Maximum nominal intensity at 24V
    • 24Vac AC-12 resistive load: 10A
    • 24Vac AC-15 inductive charge: 10A
    • 24Vdc DC-12 resistive load: 8A
    • 24Vdc DC-13 inductive charge: 4A
  • Maximum rated intensity at 110V
    • 110Vac AC-12 resistive load: 10A
    • 110Vac AC-15 inductive charge: 6A
    • 110Vdc DC-12 resistive load: 2.2A
    • 110Vdc DC-13 inductive load: 1.1A
  • Maximum nominal intensity at 240V
    • 240Vac AC-12 resistive load: 6A
    • 240Vac AC-15 inductive charge: 3A
    • 240Vdc DC-12 resistive load: 1.1A
    • 240Vdc DC-13 inductive load: 0.55A
  • Supported pulse voltage (Uimp): 4kV
  • Maximum short circuit intensity: 10A
  • Type of contact action: slow
  • Degree of protection: IP54
  • Mechanical life: 1,000,000 cycles
  • Working temperature: -25ºC to 70ºC
  • Cable connection type: Screw
  • Standard: IEC 60947-5-1

    dimensions:

    Dimensiones selector monoblock Giovenzana adajusa


    For more information you can download the technical data sheet by clicking on the "Attachments" tab.
    Material for professional use, install respecting the regulations in force at the place of installation.
