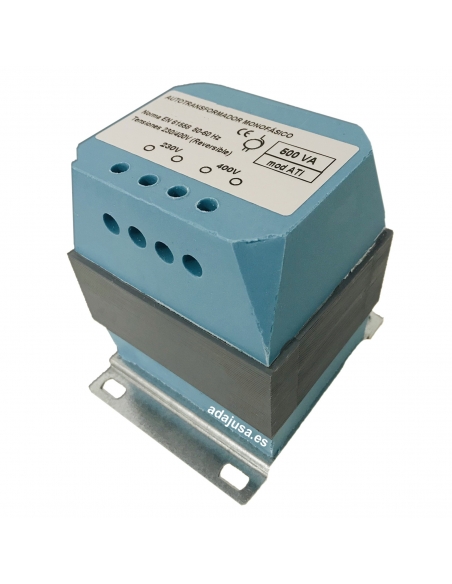

Single-phase autotransformer 500VA 125/220Vac IP-20

€63.94 Tax included

€52.84 tax excl.

500VA encapsulated single-phase reversible autotransformer, allows voltage adaptation between 125 and 220Vac. Degree of protection IP-20.

It allows to adapt the voltage in small machinery and appliances economically.

Ref: ATI-500

Esquema autotransformador 125-220V

No queries yet, leave the first!
Privacy
Shipments
Returns


Single-phase autotransformer encapsulated in resin, for voltage change, reversible, intended for voltage change. They are indicated when it is necessary to adapt the voltage from 125V to 220V / 220V to 125Vac, in an economical way, without galvanic separation. Its usual field of application is used in small machinery and appliances.

Manufactured with low loss magnetic sheet and copper wire windings, providing high performance.

Technical details:

  • Ref: ATI-500
  • Transformation ratio: 125/220 Vac Reversible.
  • Power: 500VA.
  • Frequency: 50/60Hz.
  • Windings: Thermal class N 200oC.
  • Insulation: Thermal class B 130oC.
  • Test voltage: 3KV between mass.
  • Encapsulated: Self-extinguishing resin.
  • Protection: IP-20.
  • Ambient temperature: TA-25oC.
  • Cooling: ANAN (Air natural).
  • Certificate: UNE-EN 61558.

Indicaciones de medidas autotransformadores IP-20Indicaciones de dimensiones autotransformadores IP-20 encapsulados
