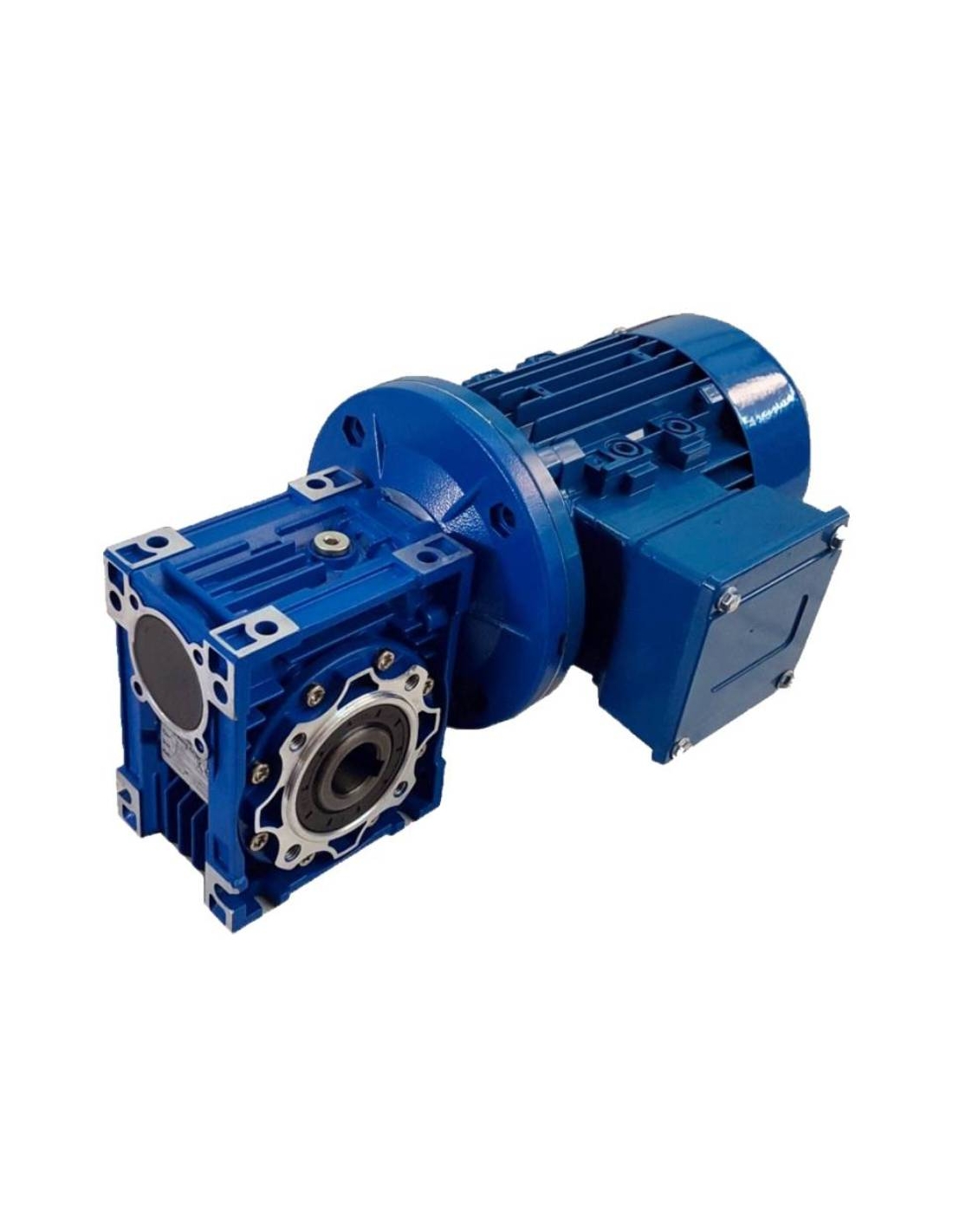

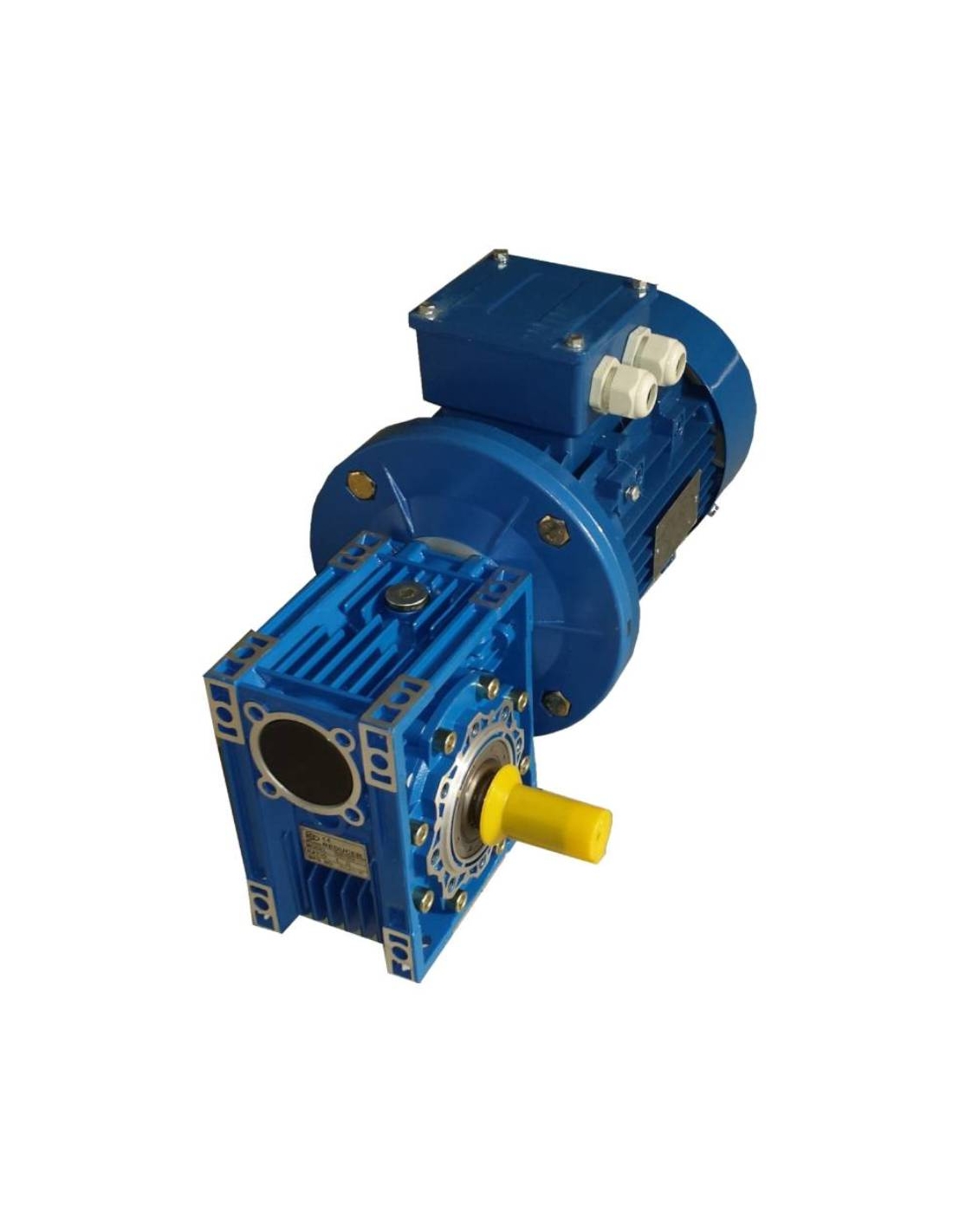

Gear motor single-phase 0.55kW 0.75hp 230Vac 3000 rpm ratio 7.5 T40 (373rpm)
Gear motor single-phase 0.55kW 0.75hp 230Vac 3000 rpm ratio 7.5 T40 (373rpm)
Gear motor single-phase 0.55kW 0.75hp 230Vac 3000 rpm ratio 7.5 T40 (373rpm)
Gear motor single-phase 0.55kW 0.75hp 230Vac 3000 rpm ratio 7.5 T40 (373rpm)

Single-phase Gear motor 0.55kW 0.75HP 230Vac 3000 rpm ratio 7.5 T40 (373rpm)

€191.31 Tax included

€156.81 tax excl.

Single-phase Gear motor 0.55kw 0.75HP 230Vac, reducer size 40 with reduction ratio I:7.5 that allows output turns of approximately 373rpm.

  • Motor: Single-phase 0.55Kw 230Vac 3000rpm
  • Reducer : size 40 I:7.5
  • For output shaft: Ø18mm



Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Single-phase Gear motor 0.55kw 0.75HP 230Vac, reducer size 40 with reduction ratio I:7.5 that allows an output of approximately 373rpm at its output.

Engine technical characteristics:

  • Motor: Single-phase half starting torque.
  • Rated voltage: 230Vac 50Hz
  • Intensity (In): 3.5 A.
  • Rated power: 0.55Kw. (0.75HP).
  • Medium starting torque.
  • Revolutions: 2780 rpm .

Technical characteristics of the reducer:

  • Reducer type: crown worm.
  • Reducer size: 40.
  • Reduction ratio: 7.5
  • Final laps: 373 rpm .
  • Output torque: 10.4 Nm.
  • Service factor: 2.2.
  • For output shaft: Ø18mm

The output shaft is not included in the supply, it must be ordered separately. As with any asynchronous electric motor, the installation of a motor protector is mandatory to avoid damage due to overload.

Engine intended to be used exclusively as a spare part for machinery and/or automatic systems .

For more information you can download the technical sheet by clicking on the "Attachments" tab.
Material for professional use, install in compliance with the regulations in force at the installation site
