Transformer 100VA E:230/400V S:12/24V
Single-phase transformer maneuver 100VA 12V 24V |buy in adajusa.es
Transformer 100VA E:230/400V S:12/24V
Single-phase transformer maneuver 100VA 12V 24V |buy in adajusa.es

Transformer 100VA E:230/400V S:12/24V

€47.89 Tax included

€39.25 tax excl.

MI-100-1

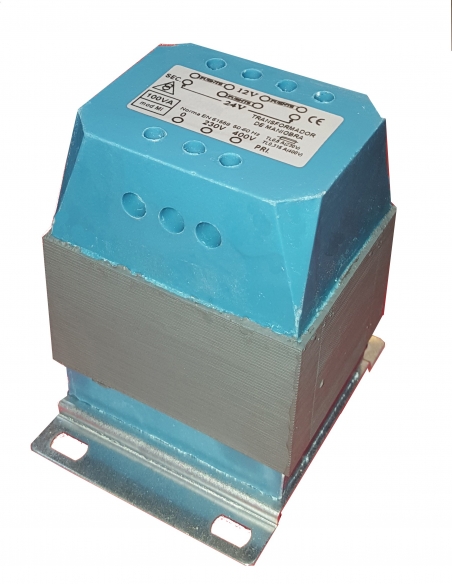

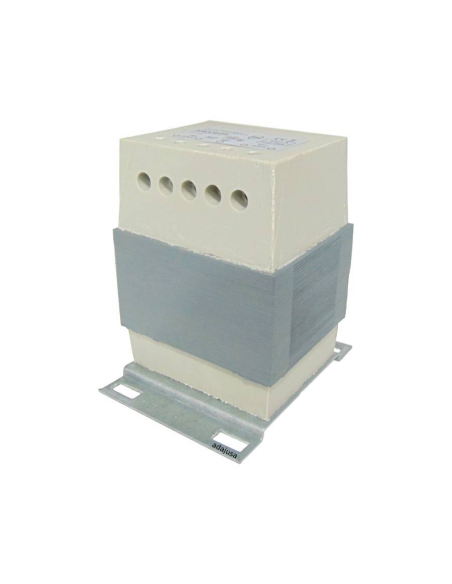

Transformer single-phase of maneuver for command, control and general uses. The power of the transformer is 100VA and it is encapsulated in resin. The degree of protection of the transformer is IP-20. This range of transformers has two output voltages 12 or 24V, each of them selectable by means of jumpers.

Reference: MI-100-1

Símbolo transformador eléctrico

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

1 question about the product
Privacy
Shipments
Returns


Transformer single-phase of separation for control and maneuver, encapsulated in resin, transformer with two possible output voltages, selectable each one of them by means of jumpers.


Transformer single-phase input 230/400Vac and output 12V/24Vac, power 100VA. Transformer encapsulated in resin, with degree of protection IP-20. Depending on the way the two output secondaries are connected, the transformer can supply 12Vac, with a current of 8.33 A (apparent current), or 24Vac, with a current of 4.16 A (apparent current).

The main application of this type of transformers is for command and control in industrial automation, and for general applications. They are intended to supply electrical devices where a galvanic isolation is needed between circuits.

This type of transformers are reversible.

Technical characteristics of the transformer:


  • Reference: MI-100-1
  • Transformer primary voltage: 230/400V
  • Transformer secondary (output) voltage: 12/24V, jumper selectable
  • Transformer power: 100 VA
  • Maximum current (transformer output): 8.33/4.16 A, jumper selectable
  • Windings: Copper wire, thermal class N 200ºC
  • Selection: jumper-selectable voltages
  • Secondary connection: series-parallel
  • Insulation: Thermal class B 130ºC
  • Frequency: 50/60 Hz
  • Protection: IP-20
  • Transformer test voltage
    • 5 KV between windings
    • 2.5 KV between windings and ground
  • Ambient temperature: Ta= 25ºC
  • Transformer encapsulation: Self-extinguishing resin
  • Transformer mounting: by means of screws
  • Certificate: UNE-EN61558

Dimensiones transformador MI (1)

For other transformer types and models, please consult us.

Electrical connection

Esquema eléctrico transsformadores seie paralelo toma media 12-24

The transformer is supplied without any type of overload protection, it is mandatory to install them to avoid overloading the transformer. The power and current indicated are apparent, the active current provided by the transformer will depend on the power factor of the connected load.
Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Question
“Necesito un transformador de 380v a 200v. ¿Este me sirve o solo es de 220v a 380v?.es para poder usar pequeñas herramientas mientras sube agua el motor generador de 400v Gracias.”
Answer

Buenos días,

Para usarlo de 230 a 400V o viceversa no es el adecuado porque un devanado es a 24V, tendria usted quie usar este modelo.

https://adajusa.es/transformadores-monofasicos/transformador-maniobra-100va-115230v.html

Verifique que la potencia sea la correcta, si se excede, el transformador se averia por sobrecarga y esta no esta contemplada en la garantia.

Saludos

Pascual on 07/28/2018 19:47:08

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)
