Single-phase neutral generator transformer 8 KVA 230/230+N with IP23 enclosure

Single-phase neutral generator transformer 8 KVA 230/230+N with IP23 enclosure

Specially manufactured material
€748.99 Tax included

€613.93 tax excl.

8kVA (8000VA) single-phase neutral generator transformer, oriented to those installations where it is necessary to generate an artificial neutral, including two-phase networks. It has an electrostatic screen between primary and secondary, which must be connected to a good quality ground. Mounted in a metallic box with IP-23 protection degree.


Reference: TRAN8000

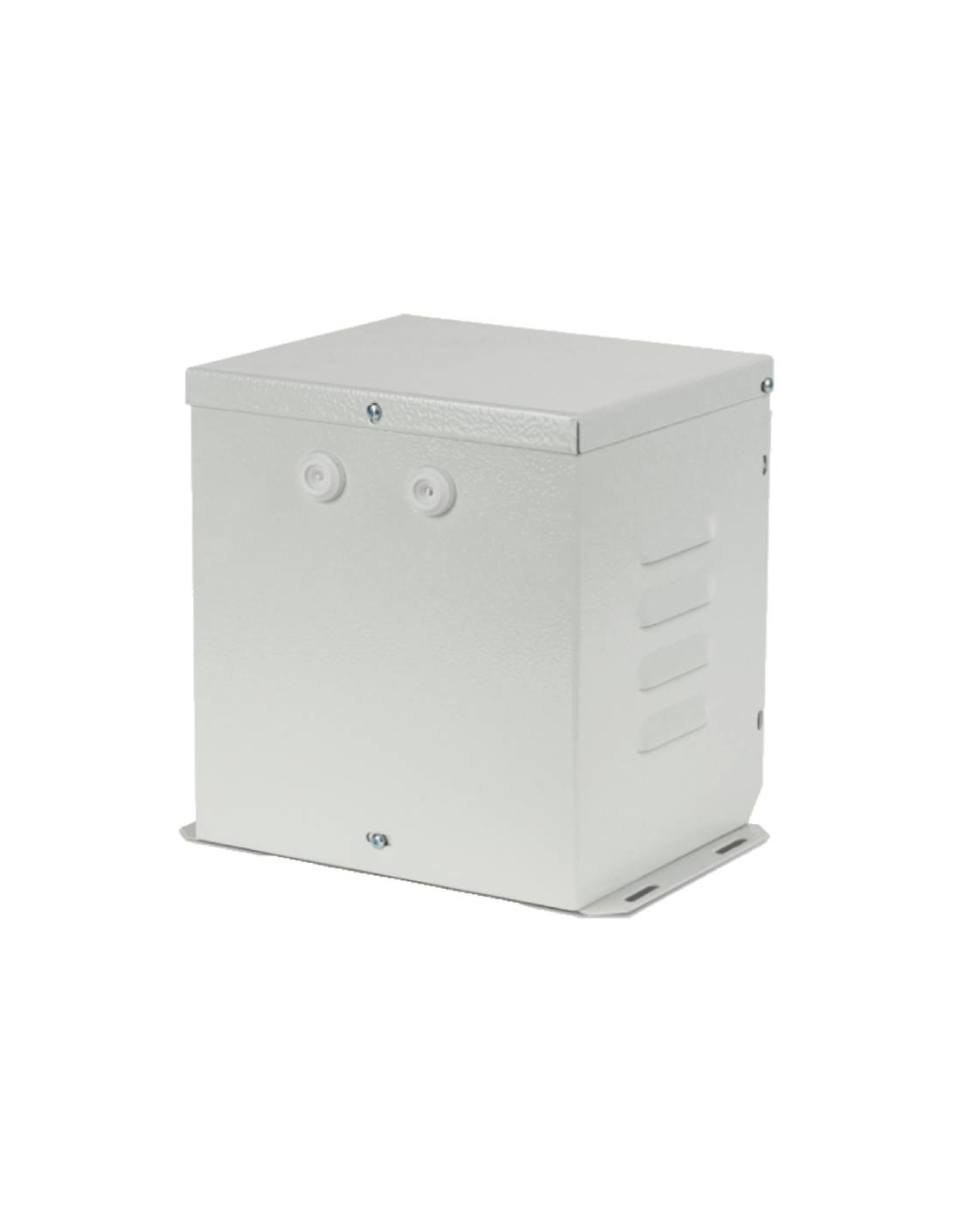

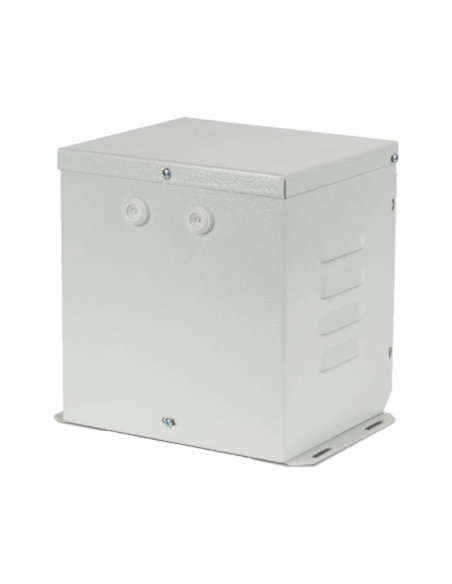

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


Single-phase neutral generator transformer, intended for those single-phase installations that do not have it and where it is necessary to generate an artificial neutral, especially oriented to two-phase networks. It consists of an electrostatic screen between the primary and secondary winding, it is essential that the connection of the screen is to a quality ground. Suitable for all those single-phase installations where due to its characteristics do not have neutral, being very common for the connection of air conditioning equipment, inverters, aerothermal, etc.


Connection by terminals, in this type of transformers the output connection is already prepared to give 230V + N. It does not incorporate any protection circuit against overloads.

Manufactured with magnetic sheet of low losses providing high performance. They are supplied in metallic box that provides a degree of insulation IP-23



NOTE: It is essential to connect the electrostatic screen to a quality ground.



Technical characteristics:

  • Manufacturer: Sevein
  • Reference: TRAN8000
  • Primary voltage: 230Vac
  • Secondary voltage: 230Vac + N
  • Power: 8KVA
  • Frequency: 50/60Hz
  • Electrostatic screen between primary and secondary (must be grounded)
  • Test voltage: 4KV
  • Insulation thermal class: F (155ºC)
  • Winding thermal class: HC (200ºC)
  • Protection: IP-23 (Box metallic)
  • Ambient temperature
  • Cooling: ANAN (Natural air)
  • Certificate: UNE-EN 61558-2-4






The transformer is supplied without any type of overload protection, it is mandatory to install them to avoid overloading the transformer. The power and current indicated are apparent, the active current provided by the transformer will depend on the power factor of the connected load.


Material for professional use, install in compliance with the regulations in force at the place of installation.
