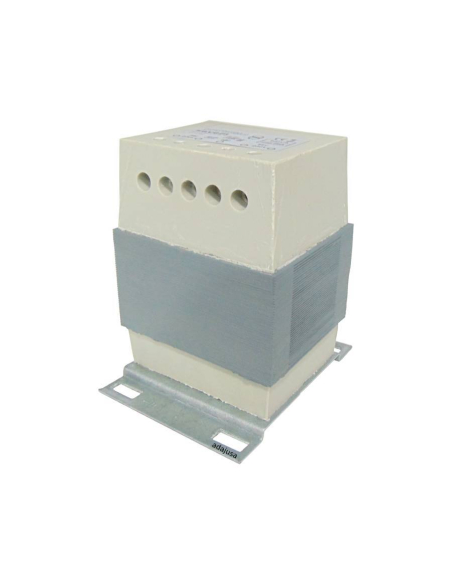

Transformer 40VA E:230/400V S:115/230V

€36.83 Tax included

€30.19 tax excl.

MI-40-3

Transformer single-phase of maneuver for command, control and general uses. The power of the transformer is 40VA and is encapsulated in resin, the degree of protection of the transformer is IP-20. This range of transformers has two output voltages 115Vac or 230Vac, each of them selectable by means of jumpers.

Reference: MI-40-3

simbolo transformador eléctrico

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

1 question about the product
Privacy
Shipments
Returns


Transformer single-phase of separation for control and maneuver, encapsulated in resin, transformer with two possible output voltages, selectable each one of them by means of jumpers.


Transformer single-phase input 230/400Vac and output 115V/230Vac, power 40VA. Transformer encapsulated in resin, with degree of protection IP-20. Depending on the way the two output secondaries are connected, the transformer can supply 115Vac, with a current of 0.35 A (apparent current), or 230Vac, with a current of 0.17 A (apparent current).

The main application of this type of transformers is for command and control in industrial automation, and for general applications. They are intended to supply electrical devices where a galvanic isolation is needed between circuits.

This type of transformers are reversible.

Technical characteristics of the transformer:


  • Reference: MI-40-3
  • Transformer primary voltage: 230/400V
  • Transformer secondary (output) voltage: 115/230V, jumper selectable
  • Transformer power: 40 VA
  • Maximum current (transformer output): 0.35/0.17 A, jumper selectable
  • Windings: Copper wire, thermal class N 200ºC
  • Selection: jumper-selectable voltages
  • Secondary connection: series-parallel
  • Insulation: Thermal class B 130ºC
  • Frequency: 50/60 Hz
  • Protection: IP-20
  • Transformer test voltage
    • 5 KV between windings
    • 2.5 KV between windings and ground
  • Ambient temperature: Ta= 25ºC
  • Transformer encapsulation: Self-extinguishing resin
  • Transformer mounting: by means of screws
  • Certificate: UNE-EN61558

Dimensiones transformador MI (1)

For other transformer types and models, please consult us.

Electrical connection

Esquema eléctrico transsformadores seie paralelo toma media 12-24

The transformer is supplied without any type of overload protection, it is mandatory to install them to avoid overloading the transformer. The power and current indicated are apparent, the active current provided by the transformer will depend on the power factor of the connected load.
Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Question
Buenas tardes, tengo una instalación trifásicamente a 220v, quisiera saber si podría colocar un transformador para pasar a 400v en trifásico, ya que tengo varias máquinas trifásicas a 400 y por ejemplo la máquina de soldar no es posible su cambio de tensión, la misma nos absorbe 16 amo a su potencia Max, un saludo y si se pudiese cuál sería su coste
Answer

Buenos días.

Para esta aplicacion le podemos ofrecer los autotransformadores trifasicos, los cuales permiten elevar o reducir la tensíon. Le adjunto enlace de nuestra pagina web en el cual usted puede ver las características, precio y realizar el pedido online si lo considera.

https://adajusa.es/autotransformadores-monofasicos-y-trifasicos/autotransformador-trifasico-230400v-5-kva-reversible-con-caja-.html

Saludos

Angel on 07/15/2018 14:58:33

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

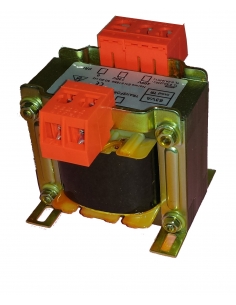

Transformer 200VA E:230/400V S:24V IP-00
Special manufacturing material
Single-phase transformers

Transformer 3000VA E:230-400V S:12V IP-00

Generico-SEV
TR3000 2-4/12
€379.15 (€310.78 tax excl.)
Single-phase switching transformer for command, control, and general uses, with an input voltage of 230-400 Vac and an output voltage of 12 Vac. The transformer has a power output of 3000 VA and an IP00 protection rating. Reference: TR3000 230-400/12 Representative image for illustrative purposes, the item supplied will correspond to the specifications...
Transformer maneuver 2500VA 12/24V Transformer maneuver 2500VA 12/24V 2
Special manufacturing material
Single-phase transformers

Transformer 2500VA E:230/400V S:12/24V

Especial-SEV
MI-2500-1
€388.83 (€318.71 tax excl.)
Transformer single-phase of maneuver for command, control and general uses. The power of the transformer is 2500VA and it is encapsulated in resin. The degree of protection of the transformer is IP-20. This range of transformers has two output voltages 12Vac or 24Vac, each of them selectable by means of jumpers. Reference: MI-2500-1 Representative...
Transformer 200VA E:230/400V S:24V IP-00
Special manufacturing material
Single-phase transformers

Transformer 315VA E:230-400V S:12V IP-00

Generico-SEV
TR315 2-4/12
€82.57 (€67.68 tax excl.)
Single-phase switching transformer for command, control, and general uses, with an input voltage of 230-400 Vac and an output voltage of 12 Vac. The transformer has a power output of 315 VA and is IP00 rated. Reference: TR315 230-400/12 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.
Transformer 500VA E:230/400V S:24V IP-00
Special manufacturing material
Single-phase transformers

Transformer 2000VA E:230-400V S:230V IP-00

Generico-SEV
TR2000 2-4/23
€279.14 (€228.80 tax excl.)
Single-phase switching transformer for command, control, and general uses, with an input voltage of 230-400 Vac and an output voltage of 230 Vac. The transformer has a power output of 2000 VA and an IP00 protection rating. Reference: TR2000 230-400/230 Representative image for illustrative purposes, the item supplied will correspond to the...
Transformer 500VA IP00 special voltages
Special manufacturing material
Single-phase transformers

Transformer 500VA IP00 voltages as needed

Especial-SEV
TR2-500-ESP
Starting from €98.87 (€81.04 tax excl.)
Single-phase maneuver transformer for command, control and general uses. The transformer power is 500VA and with protection level IP00. Primary and secondary voltage can be requested by the customer. The stresses at which transformers can be manufactured are, for the primary between 100 to 500Vac, and for the secondary between 10 and 500Vac. Select...
View
Transformer 200VA E:230/400V S:24V IP-00
Special manufacturing material
Single-phase transformers

Transformer 500VA E:230-400V S:12V IP-00

Generico-SEV
TR500 2-4/12
€104.68 (€85.80 tax excl.)
Single-phase switching transformer for command, control, and general uses, with an input voltage of 230-400 Vac and an output voltage of 12 Vac. The transformer has a power of 500 VA and an IP00 protection rating. Reference: TR500 230-400/12 Representative image for illustrative purposes, the item supplied will correspond to the specifications...
Transformer 5000VA IP00 special voltages
Special manufacturing material
Single-phase transformers

Transformer 5000VA IP00 voltages as needed

Especial-SEV
TR2-5000-ESP
Starting from €514.08 (€421.38 tax excl.)
Single-phase maneuver transformer for command, control and general uses. The transformer power is 5000VA and with protection level IP00. Primary and secondary voltage can be requested by the customer. The stresses at which transformers can be manufactured are, for the primary between 100 to 500Vac, and for the secondary between 10 and 500Vac. Select...
View
Single-phase neutral generator transformer 1KVA 230/230V+N TRAN1000 | ADAJUSA | price
Specially manufactured material
Single-phase transformers

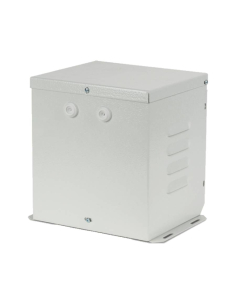

Single-phase neutral generator transformer 1 KVA 230/230+N with IP23 enclosure
