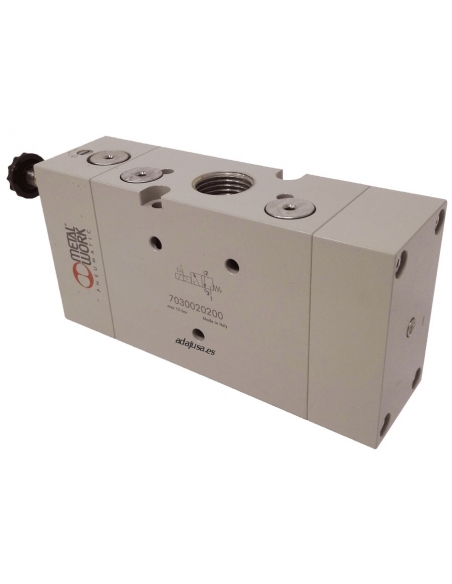

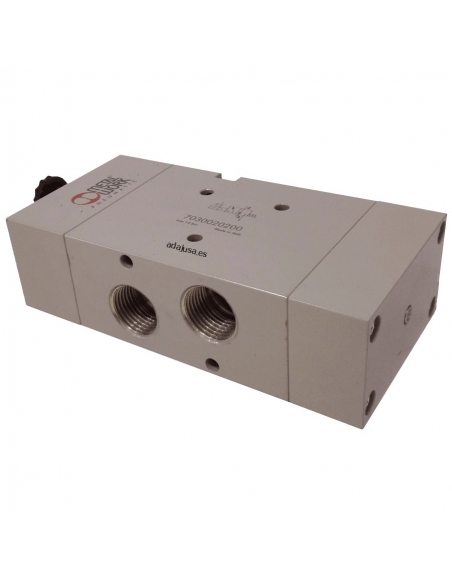

Solenoid valve 1/2 3 monostable roads without coil - Metal Work

€157.77 Tax included

129.32 tax excl.

7030020200

Pneumatic solenoid valve 1/2 3-way monostable without coil, for industrial applications and general use. Supports coils of size 22mm with core of Ø8mm.

Reference: 7030020200

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

1/2 3-way monostable single-stable pneumatic solenoid valve without coil. For general and industrial applications. The solenoid valve is normally closed (NC), i.e. without voltage in the coil, the inlet is not communicated with the outlet, i.e. there is no air pressure at the outlet, the outlet is communicated with the valve exhaust. When the coil is put into tension, the solenoid valve is activated, air circulation occurs between the inlet and outlet of the solenoid valve.

specifications:

Manufacturer of the solenoid valve: Metal Work.
Manufacturer's Reference: SOV43SOSNC Code: 7030020200
Working pressure of the solenoid valve: 2.5 to 10 bar.
Minimum working pressure: 2.5 bar.
Working temperature: -10oC to 60oC.
Nominal diameter: 15mm.
Flow rate at 6 bars p 1 bar: 4600 Nl/min.
Manual drive: Yes.

Dimensiones electroválvula 1_2 monoestable metal work 1

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"

solenoid valve 70 series

70 series solenoid valves Metal Work

Download (2.19MB)
