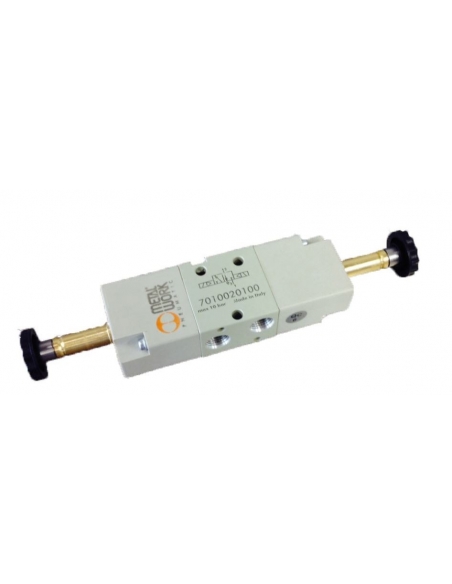

1/4 3-way bistable solenoid valve without coil - Metal Work - adajusa.es

Coil solenoid valve 24Vac 3.5 VA T22 '8 - Metal Work

Solenoid valve 1/4 3 ways bistable assisted...

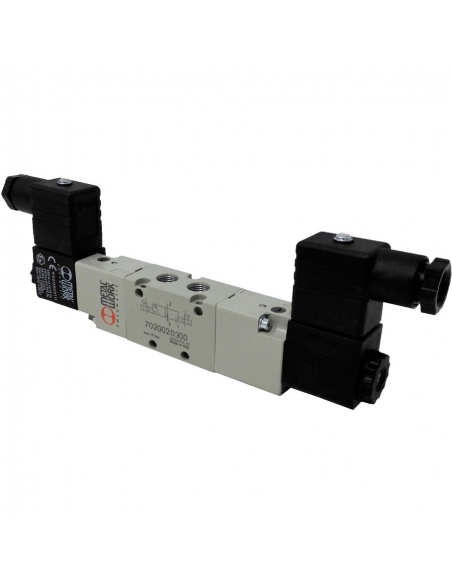

Solenoid valve 1/4 3 ways bistable assisted 24Vdc 2W - Metal Work

Name: Solenoid valve 1/4 3 ways bistable assisted 24Vdc 2W - Metal Work
Brand: Metal Work
SKU: PK-E143BIA24C
Price: 115.2168 EUR
Availability: PreOrder

€115.22 Tax included

€94.44 tax excl.

1/4" 3-way assisted bile valve for industrial and general applications.

Coil for solenoid valve size 22mm, voltage 24Vdc, with a consumption of 2 W, for cores of Ø8mm. 22mm connector

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

Solenoid valve connector size 22 - Metal Work

€1.50

Solenoid valve coil 24Vdc 2 W T22 diameter 8 - Metal Work

€9.19

Electrovalve 1/4 3-way assisted bistable - Metal Work - ADAJUSA

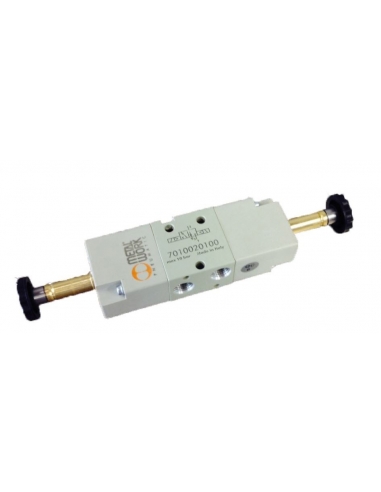

Solenoid valve 1/4 3-way bistable-assisted without coil - Metal Work

€93.84

No queries yet, leave the first!

Privacy

Shipments

Returns

Pneumatic electrovalve of 1/4 3-way assisted bistable, for industrial pneumatic applications or general use. Supports coils of Metal Work size 22mm with Ø8mm core.

Made of aluminum, compact size and high flow of air passage, short response time.

The feeding pressure must be applied to toa 2, use in socket 1 and exhaust in socket 3.

Coil for electrovalve size 22mm, voltage 24Vca., with a consumption of 3.5VA, for cores of Ø8mm.

Plastic connector 22 mm

The supply includes:

Electrovalve 1/4 3-way assisted bistable
Coil 24Vca 3,5VA
22 mm connector

specifications:

Manufacturer of the electrovalve: Metal Work.
Manufacturer reference: 7020020300 - SOV 33 SEB OO
Type: 1/4-3/2 Assisted Bistable
Thread: G 1/4"
Voltage: 24Vca
Consumption: 3.5VA
Operating pressure: 0 bar÷10 bar
Minimum piltotaje pressure: 2.5 bar
Working temperature: -10°÷ +60°C
Nominal diameter: 5mm.
Capacity at 6 bar ΔP 0.5 bar: 400 Nl/min
Capacity at 6 bar ΔP 1 bar: 550 Nl/min
TRA/TRR at 6 bar: 15 ms / 35 ms
Coil voltage: 24VDC÷24VAC÷110VAC÷220VAC 50/60Hz
Weight: 0.19kg.
Manual drive: Yes.

Dimensiones electrovalvula 1-8 biestable Metal work

Material for professional use, install respecting the regulations in force at the place of installation.

For more information you can download the technical data sheet by clicking on the "Attachments" tab

solenoid valve 70 series

70 series solenoid valves Metal Work

Download (2.19MB)
