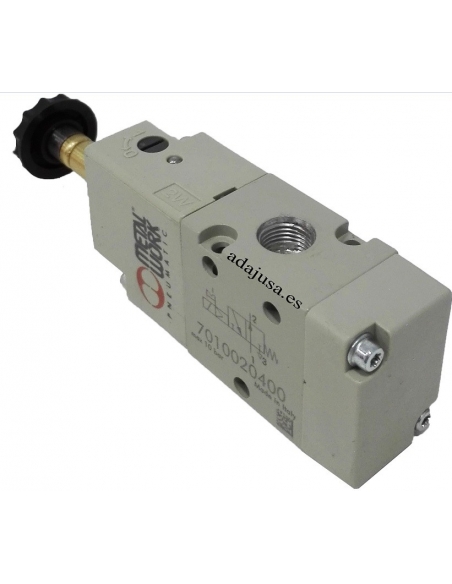

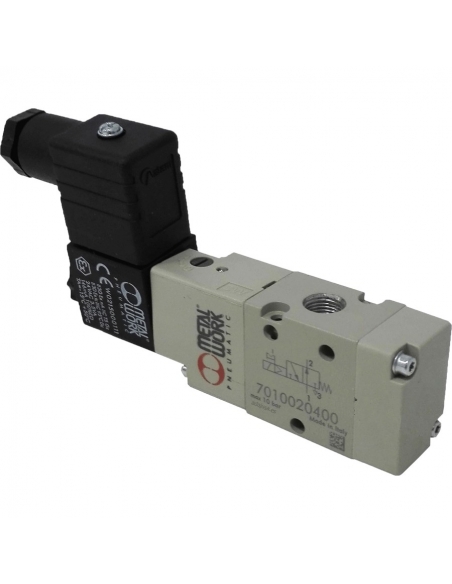

Solenoid valve 1/8 3-way monostable open NA 110Vac - Metal Work

Pneumatic solenoid valve of 1/8 3 ways monostable. For general and industrial applications. The solenoid valve is normally open (NO), that is, without tension in the coil, the inlet is communicated with the outlet, that is, there is air pressure at the outlet. When the coil tension is set, the solenoid valve is activated, the air circulation between the inlet and outlet of the solenoid valve is interrupted, the outlet is connected to the exhaust.

Components included:

• Solenoid valve 1/8 3/2 - monostable (NO).
• Coils 110Vac 3.5VA.
• Connector size 22

Characteristics:

• Manufacturer: Metal Work
• Solenoid valve reference: 7010020400 - SOV23SOSNO
• Operating pressure: 2.5 ÷10 bar
• Minimum assist pressure: 2.5 bar
• Operating temperature: -10 ÷ +60
• Nominal diameter: 7.5 mm
• Conductance C Nl/min · bar: 264.26
• Critical ratio b bar/bar: 0.27
• Flow rate at 6 bar ΔP 0.5 bar Nl/min: 750
• Flow rate at 6 bar ΔP 1 bar Nl/min:1100
• Monostable TRA/TRR at 6 bar ms: 19/45
• Bistable TRA/TRR at 6 bar ms: 21/21
• Voltage: 110 Vac
• Power: 3.5 VA
• Voltage tolerances %: -10 ÷ +15

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
