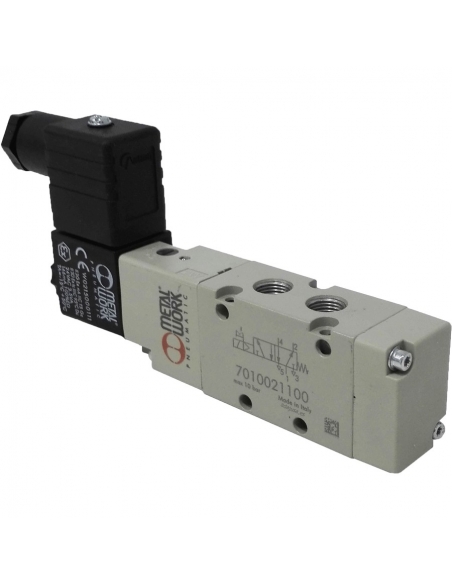

1/8 5-way monostable solenoid valve 110Vac 3.5VA - Metal Work - ADAJUSA

Coil solenoid valve 24Vcc 2.5 W T22 '8 - Metal Work - adajusa.es

Solenoid valve connector size 22 - adajusa.es

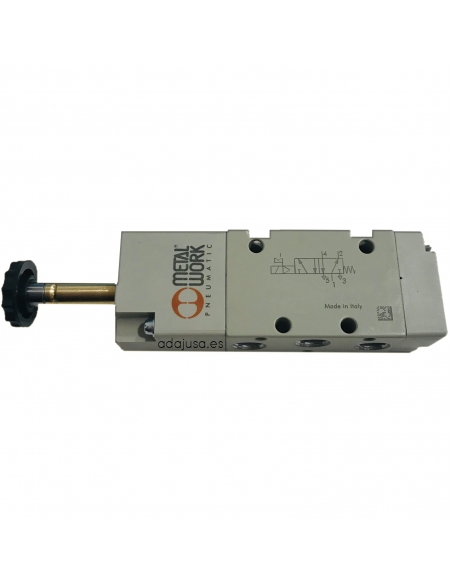

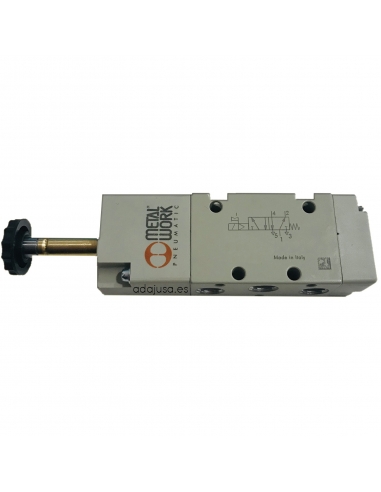

1/8 5-way monostable solenoid valve without coil - Metal Work - adajusa.es

Solenoid valve 1/8 5-way monostable 110Vac 3.5VA - Metal Work

Name: Solenoid valve 1/8 5-way monostable 110Vac 3.5VA - Metal Work
Brand: Metal Work
SKU: PK-121100110
Price: 74.3224 EUR
Availability: InStock

€74.32 Tax included

€60.92 tax excl.

1/8" 5-way solenoid valves for pneumatic applications for industrial or general use.

Coil for solenoid valve size 22mm, voltage 110Vac., with a consumption of 3.5VA, for cores of 8mm.

Electric connector for 22mm size solenoid valve, in black.

Manufactured in Europe by METAL WORK.
Logotipo Metal Work

simbolo eletroválvula neumática 5 vías

Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

This pack contains

Solenoid valve connector size 22 - Metal Work

€1.50

1/8 5-way monostable - Metal Work - ADAJUSA

Solenoid valve 1/8 5 monostable roads without coil - Metal Work

€63.64

Solenoid valve coil 110Vac 3.5VA T22 diameter 8 - Metal Work

€9.19

No queries yet, leave the first!

Privacy

Shipments

Returns

5-way 1/8" pneumatic solenoid valves for industrial or general pneumatic applications. High throughflow and very high reliability and durability.

The supply includes:

5-way 1/8" pneumatic solenoid valves
Coil 110Vac 3,5VA
22mm connector

Characteristics:

Manufacturer: Metal Work
Solenoid valve reference: 7010021100 - SOV25SOSOO .
Monostable bar operating pressure: 2.5 ÷10
Minimum assist pressure bar: 2.5
Operating temperature °C: -10 ÷ +60
Nominal diameter mm: 5
Conductance C Nl/min · bar: 121.43
B bar/bar critical ratio: 0.32
Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
Flow rate at 6 bar ΔP 1 bar Nl/min: 550
Monostable TRA/TRR at 6 bar ms: 15/35
BISET TRA/TRR at 6 bar ms Voltage s coils: 20/20
Voltage: 110Vac
Power: 3.5 VA
Voltage tolerances %: -10 ÷ +15

electrovalvula 1/8-5/2

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

solenoid valve 70 series

70 series solenoid valves Metal Work

Download (2.19MB)
