Solenoid valve 1/8 5 bistable roads 230Vac 3.5VA - Metal Work

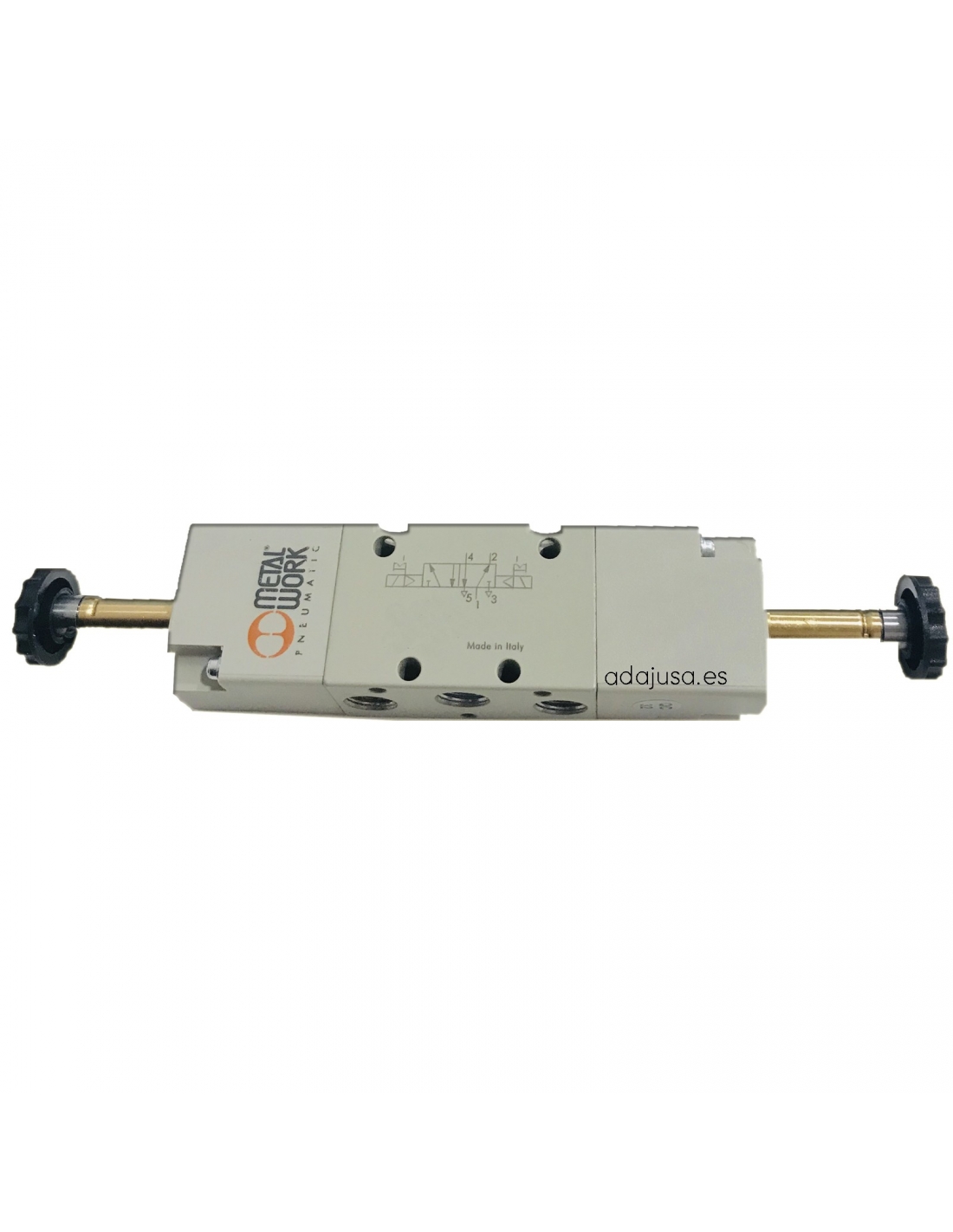

1/8 5-way bistable pneumatic solenoid valve, with 8mm coil core. For general and industrial applications. The solenoid valve is normally closed (NC), i.e. without voltage in the coil, the inlet is not communicated with the outlet, i.e. there is no air pressure at the outlet, the outlet is communicated with the valve exhaust. When the coil is put into tension, the solenoid valve is activated, air circulation occurs between the inlet and outlet of the solenoid valve.

Coil for solenoid valve size 22mm, voltage 230Vac., with a consumption of 3.5VA, for cores of 8mm.

Components included:

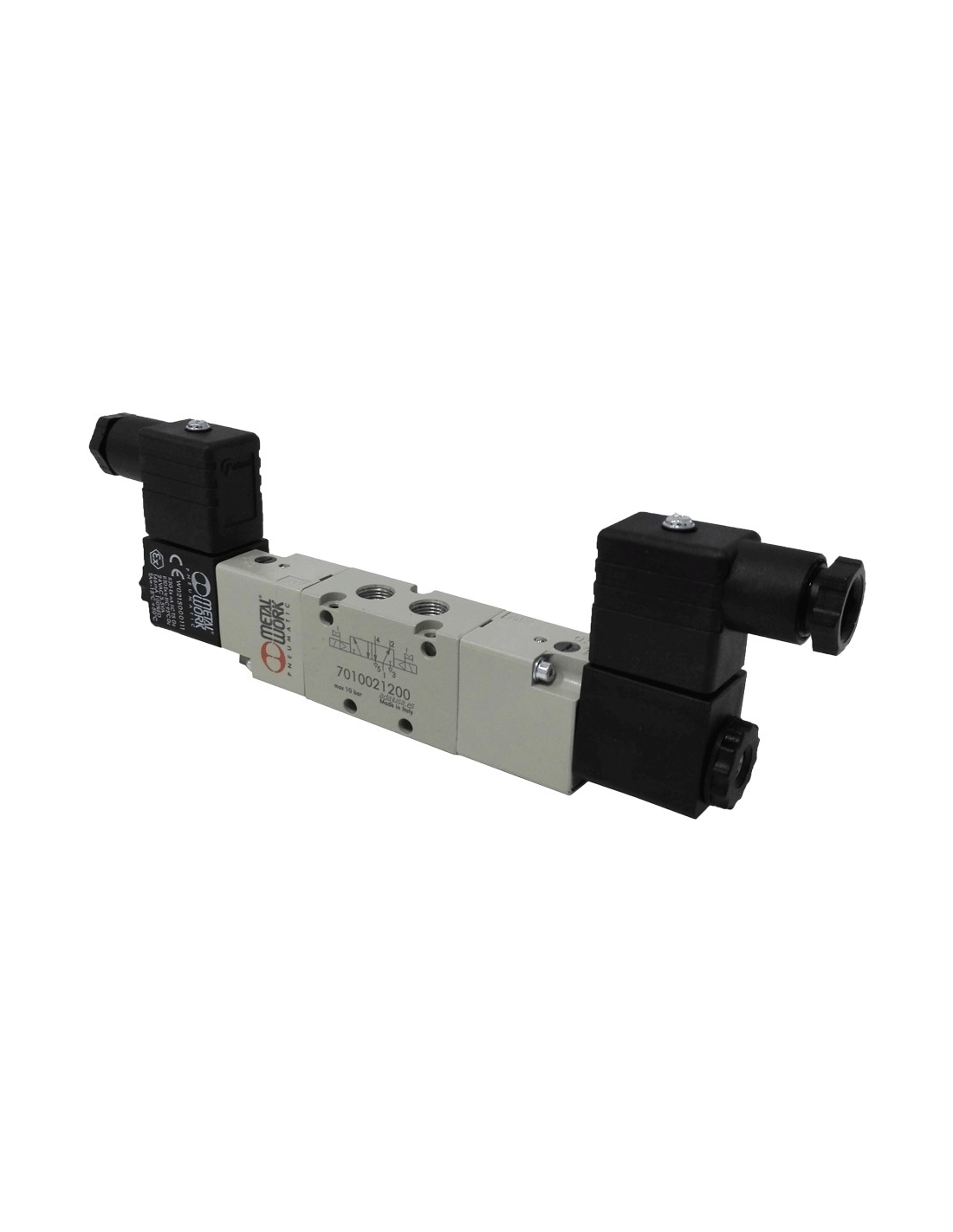

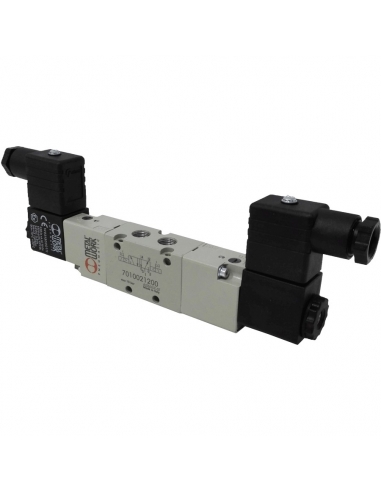

• Solenoid valve 1/8-5/2 Biestable.
• 2 Coils 230Vac 3.5VA
• 2 Plastic connectors.

Technical details:

• Manufacturer of the solenoid valve: Metal Work.
• Thread Type: G 1/8"
• Biestable bar: 1 ÷ 10
• Minimum bar attendance pressure: 2.5
• Operating temperature C: -10 ÷ +60
• Nominal diameter mm: 5
• Conductance C Nl/min ? bar: 121.43
• Critical relationship b bar/bar: 0.32
• Flow rate at 6 bar P 0.5 bar Nl/min: 400
• Flow rate at 6 bar P 1 bar Nl/min: 550
• TRA/TRR monostable at 6 bar ms: 15/35
• TRA/TRR bistable at 6 bar ms: 20/20
• Voltage tolerances %: -10 ÷ +15
• Insulation class: F 155


Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"
