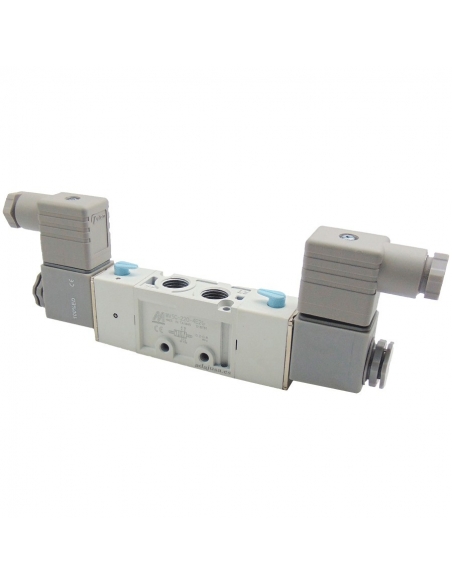

Solenoid valve 1/8 5 ways bistable 24Vca Mindman - ADAJUSA
Solenoid valve 1/8 5 ways bistable 24Vca Mindman - ADAJUSA

Solenoid valve 1/8 5 ways bistable 24Vca - Mindman S.220

€72.09 Tax included

€59.58 tax excl.

Pneumatic solenoid valve of 1/8" 5 ways bistable,operating voltage of 24Vca.

Reference: MVSC2204E264


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Pneumatic solenoid valve of 1/8 5 ways bistable, with coil of 24Vca. For general and industrial applications.

The supply of the solenoid valve includes:

  • Solenoid valve 1/8-5/2.
  • 2 Coils 24Vca.
  • 2 Connectors 22mm.

Specifications:

  • Solenoid valve manufacturer: Mindman.
  • Reference: MVSC2204E26A4
  • Thread type: G 1/8"
  • Coil voltage: 24Vca.
  • Coil power: 2.6W.
  • Fluid type: Pressurized air, with or without lubrication.
  • Solenoid valve working pressure: 2 to 7 bar.
  • Minimum working pressure: 2 bar.
  • Working temperature: -10ºC to 60ºC.
  • Effective pitch diameter: 18mm2.
  • Flow: 799 Nl/min.
  • Manual drive: Yes.

Dimensiones electroválvulas 1/8 y 1/4 5 vías monoestable

Material for professional use, install in compliance with the regulations in force at the place of installation.
