Solenoid valve 3/8 5 ways monostable without coil - Metal Work

Name: Solenoid valve 3/8 5 ways monostable without coil - Metal Work
Brand: Metal Work
SKU: 7040021100
Price: 106.13 EUR
Availability: BackOrder

€106.13 Tax included

86.99 tax excl.

7040021100

3/8" 5-way monestable, closed (NC) pneumatic solenoid valve for industrial and general use applications. Supports coils of size 22mm with core of Ø8mm.

Reference: 7040021100

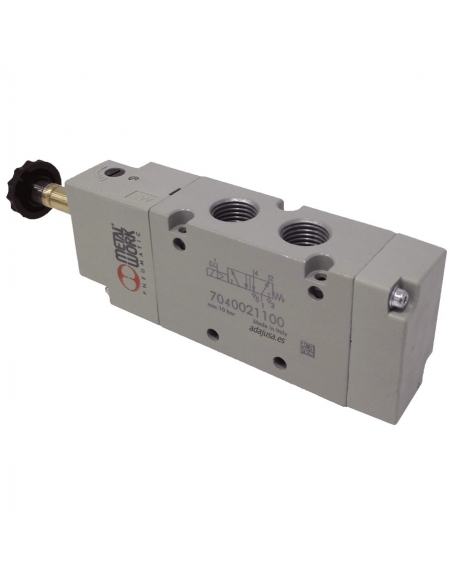

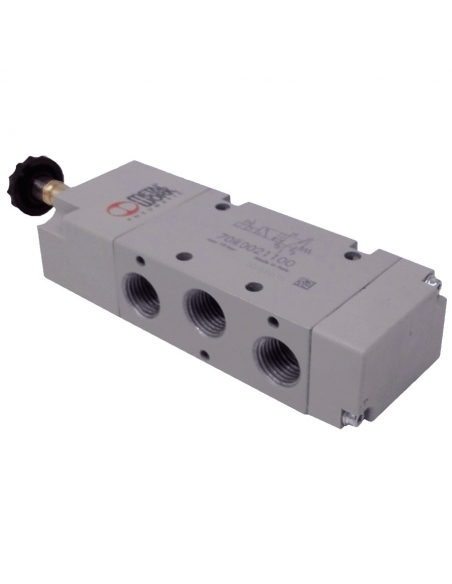

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

3/8 5-way pneumatic solenoid valve 2 monostable positions. For general and industrial applications. The solenoid valve is normally closed (NC), i.e. without voltage in the coil, the inlet is not communicated with the outlet, i.e. there is no air pressure at the outlet, the outlet is communicated with the valve exhaust. When the coil is put into tension, the solenoid valve is activated, air circulation occurs between the inlet and outlet of the solenoid valve. The coil is not included in the supply.

Reference Metal Work.

- Solenoid valve 7040021100 - SOV C5 SOS OO

Features:

Operating pressure: 2.5 ÷10 bar
Minimum attendance pressure: 2.5 bar
Operating temperature: -10 ÷ +60
Nominal diameter: 13.3 mm
Conductance C Nl/min ? bar: 505.52
Critical relationship b bar/bar: 0.32
Flow rate at 6 bar P 0.5 bar Nl/min: 1560
Flow rate at 6 bar P 1 bar Nl/min:2150
TRA/TRR monostable at 6 bar ms: 21/72
TRA/TRR bistable at 6 bar ms: 18/18
Coil voltage: 12; 24 VDC - 24; 110; 220V AC 50/60Hz
Voltage tolerances %: -10 ÷ +15

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"

solenoid valve 70 series

70 series solenoid valves Metal Work

Download (2.19MB)
