Solenoid valve 3/8 3/2 monostable NC - Aignep

Name: Solenoid valve 3/8 3/2 monostable NC - Aignep
Brand: Aignep
SKU: 01VS03NC04
Price: 56.9374 EUR
Availability: PreOrder

€56.94 Tax included

€46.67 tax excl.

3/8 3- way monostable NC Solenoid valve (coils not included), with G3/8" threads, anodized aluminum body, NBR seals.

Reference: 01VS03NC04
Aignep logo
Aignep Adajusa regulatory logos (1)

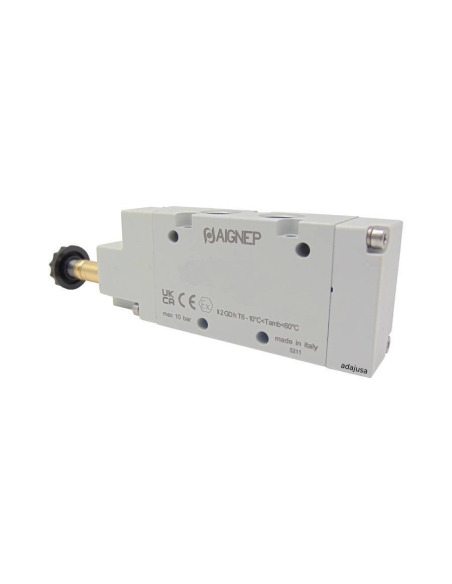

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

3/8" 3- way monostable NC (normally closed ) pneumatic Solenoid valve , 01V series. Blocks the passage of air when not activated and allows it to pass when its control is activated. Coil and connector not included.
Body made of anodized and varnished aluminum, nickel-plated aluminum slide and NBR seals. European manufacturing.

Technical characteristics:

Manufacturer: Aignep
Reference: 01VS03NC04
Thread type: G 3/8"
Monostable bar : 2 to 10
Operating temperature °C: -10 ÷ +60
Flow rate at 6 bar ΔP 1 bar Nl/min: 2000 Nl/mi
Voltage tolerances: ±10%
Insulation class: F 155
Fluid: Filtered air without lubrication
Number of way : 3
Operation: Monostable
Gasket material: NBR

Construction image of 3-way solenoid valves Aignep Adajusa

Professional use material, install in compliance with the regulations in force at the installation site.

For further information you can download the technical sheet by clicking on the "Attached Files" tab.
